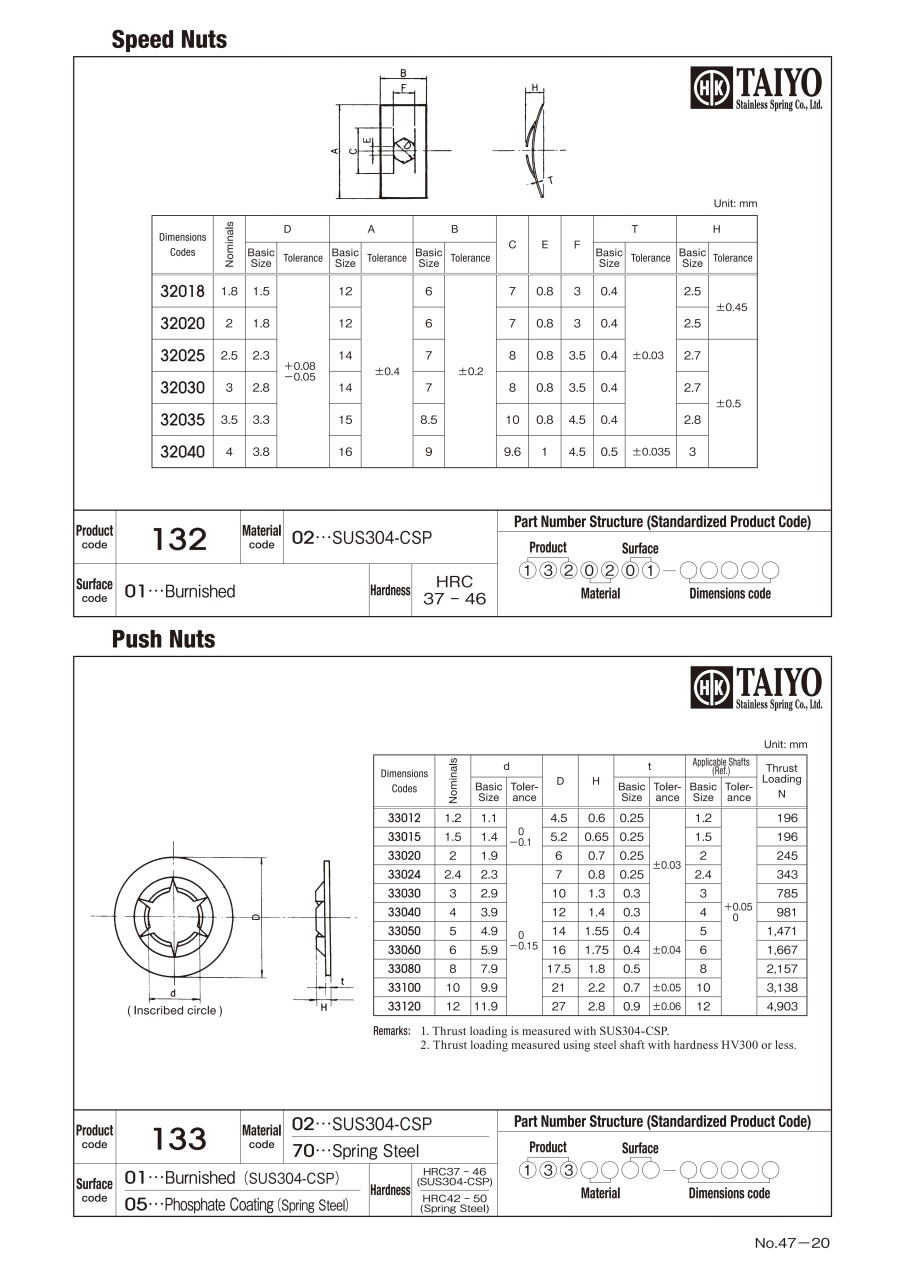

Push Nut (for Shaft) [1-500 Pieces Per Package]

Push Nut (for Shaft)
  • Volume Discount

The edges of the angled nails on the inner circumference are shaped to keep them from falling out, even when pushed from the opposite direction when they bite into the outer periphery of the shaft element.

Part Number Once your search is narrowed to one product, the corresponding part number is displayed here.
Part Number Standard Unit Price Volume Discount Shipping Days? Nominal Material Shaft or Hole Used d1 (Reference)
(mm)
Sales Unit Shaft / Shaft Bore / Groove Nominal (Reference)
(mm)
Surface Treatment D dimension (Reference)
(mm)
0.03€ Available 4 Days 1.2 EN 1.4301 (CSP) Equiv. 1.1 Low Quantity (can be purchased from one) 1.2 Gloss Finish 4.5
0.03€ Available 4 Days 1.5 EN 1.4301 (CSP) Equiv. 1.4 Low Quantity (can be purchased from one) 1.5 Gloss Finish 5.2
0.03€ Available 4 Days 2 EN 1.4301 (CSP) Equiv. 1.9 Low Quantity (can be purchased from one) 2 Gloss Finish 6
0.03€ Available 4 Days 2.4 EN 1.4301 (CSP) Equiv. 2.3 Low Quantity (can be purchased from one) 2.4 Gloss Finish 7
0.03€ Available 4 Days 3 EN 1.4301 (CSP) Equiv. 2.9 Low Quantity (can be purchased from one) 3 Gloss Finish 10
0.03€ Available 4 Days 4 EN 1.4301 (CSP) Equiv. 3.9 Low Quantity (can be purchased from one) 4 Gloss Finish 11
0.04€ Available 4 Days 5 EN 1.4301 (CSP) Equiv. 4.9 Low Quantity (can be purchased from one) 5 Gloss Finish 12
0.04€ Available 4 Days 6 EN 1.4301 (CSP) Equiv. 5.9 Low Quantity (can be purchased from one) 6 Gloss Finish 14
0.07€ Available 4 Days 8 EN 1.4301 (CSP) Equiv. 7.9 Low Quantity (can be purchased from one) 8 Gloss Finish 16
0.12€ Available 4 Days 10 EN 1.4301 (CSP) Equiv. 9.9 Low Quantity (can be purchased from one) 10 Gloss Finish 17.5
0.21€ Available 4 Days 12 EN 1.4301 (CSP) Equiv. 11.9 Low Quantity (can be purchased from one) 12 Gloss Finish 21
60.89€500 Pieces Per Package Available 9 Days 12 EN 1.4301 (CSP) Equiv. 11.9 Box/package 12 Gloss Finish - Black 21
0.02€ Available 4 Days 1.5 Spring Steel 1.4 Low Quantity (can be purchased from one) 1.5 Phosphate Coating 5.2
0.02€ Available 4 Days 2 Spring Steel 1.9 Low Quantity (can be purchased from one) 2 Phosphate Coating 6
0.02€ Available 4 Days 2.4 Spring Steel 2.3 Low Quantity (can be purchased from one) 2.4 Phosphate Coating 7
0.02€ Available 5 Days 3 Spring Steel 2.9 Low Quantity (can be purchased from one) 3 Phosphate Coating 10
0.02€ Available 4 Days 3.5 Spring Steel 3.4 Low Quantity (can be purchased from one) 3.5 Phosphate Coating 11
0.02€ Available 4 Days 4 Spring Steel 3.9 Low Quantity (can be purchased from one) 4 Phosphate Coating 12
0.03€ Available 4 Days 5 Spring Steel 4.9 Low Quantity (can be purchased from one) 5 Phosphate Coating 14
0.03€ Available 4 Days 6 Spring Steel 5.9 Low Quantity (can be purchased from one) 6 Phosphate Coating 16
0.05€ Available 4 Days 8 Spring Steel 7.9 Low Quantity (can be purchased from one) 8 Phosphate Coating 17.5
0.08€ Available 4 Days 10 Spring Steel 9.9 Low Quantity (can be purchased from one) 10 Phosphate Coating 21

Basic information

Type Thrust Direction Mount (for Shaft) Shape Push Nut for Axis Retaining Ring Type Outer Ring Stopper
Mounting Method Type Snap-in(inserted) Product Type Retaining Ring
