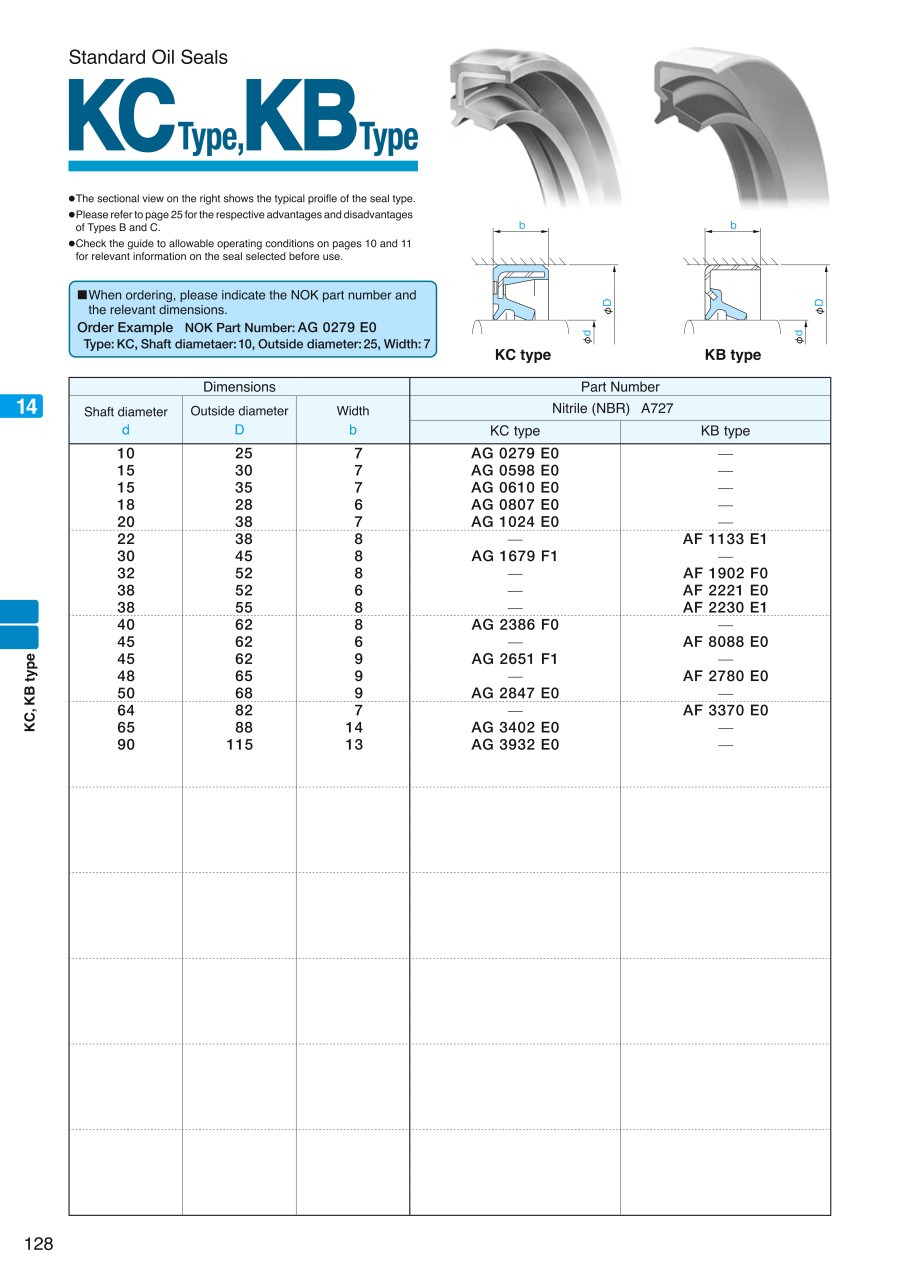

NOK, Standard Oil Seal, KC Type
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| AG0279E0 |
| AG0598E0 |
| AG0610E0 |
| AG0807E0 |
| AG1024E0 |
| AG1679F1 |
| AG2386F0 |
| AG2651F1 |
| AG2847E0 |
| AG3402E0 |
| AG3932E0 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Dia. d (Ø) | Outer Diameter D (φ) | Width B (mm) | |
|---|---|---|---|---|---|---|---|
8.51 € | 1 | Available | 10 Days | 10 | 25 | 7 | |
4.79 € | 1 | Available | 10 Days | 15 | 30 | 7 | |
5.14 € | 1 | Available | 10 Days | 15 | 35 | 7 | |
6.03 € | 1 | Available | 10 Days | 18 | 28 | 6 | |
5.74 € | 1 | Available | 10 Days | 20 | 38 | 7 | |
4.03 € | 100 | 10 Days | 30 | 45 | 8 | ||
9.74 € | 1 | Available | 10 Days | 40 | 62 | 8 | |
13.05 € | 1 | Available | 10 Days | 45 | 62 | 9 | |
9.29 € | 1 | Available | 10 Days | 50 | 68 | 9 | |
18.60 € | 1 | Available | 10 Days | 65 | 88 | 14 | |
23.70 € | 1 | Available | 10 Days | 90 | 115 | 13 |
Loading...
Basic information
| Sliding Surface | Axis | Sealing Subject Liquid | Lubricant / Water / Grease / Alcohol | Seal Material | Nitrile Rubber |
|---|---|---|---|---|---|
| Seal Rim Area Material | Rubber (Has Metal Ring) | Environment, Applications | Abrasion Resistant | Dust Lip | Available |
| Attaching Method | From only the shaft end | Housing Groove | NA | Two Liquids Separation | NA |
| Operating Temperature Range(℃) | -30::100 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
