Pitbull® Clamps
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

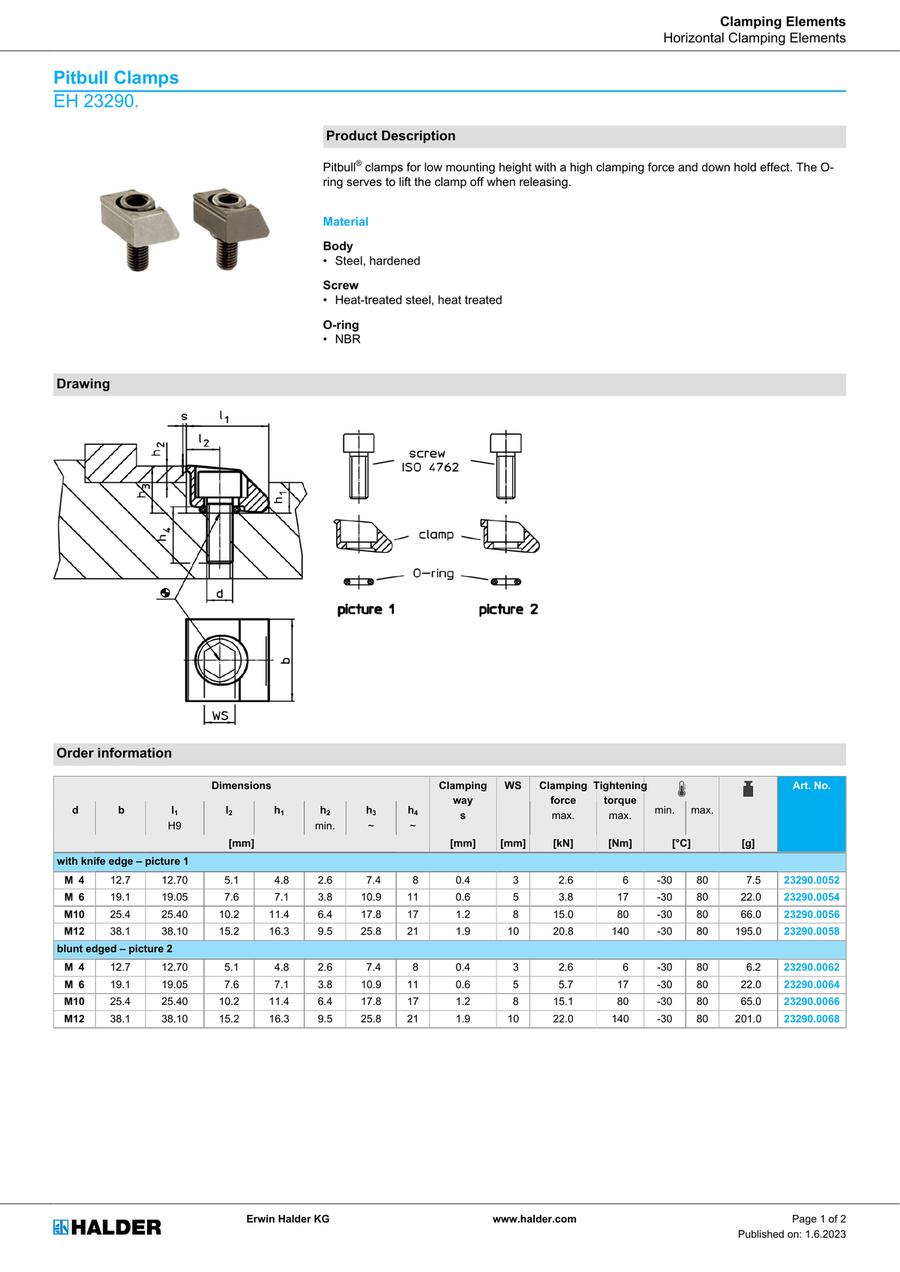

Pitbull Clamps, EH 23290.
Product Description
 | Pitbull® clamps for low mounting height with a high clamping force and down hold effect. The O-ring serves to lift the clamp off when releasing. |
Material
• Steel, hardened
Screw
• Heat-treated steel, heat treated
O-ring
• NBR
Drawing
Order Information
| Dimensions | Clamping way s | WS | Clamping force max. | Tightening torque max. | Operating temperature range | Weight | Art. No. | ||||||||
| d | b | l1 | l2 | h1 | h2 | h3 | h4 | min. | max. | ||||||
| H9 | min. | ~ | ~ | ||||||||||||
| [mm] | [mm] | [mm] | [kN] | [Nm] | [°C] | [g] | |||||||||
| with knife edge – picture 1 | |||||||||||||||
| M 4 | 12.7 | 12.70 | 5.1 | 4.8 | 2.6 | 7.4 | 8 | 0.4 | 3 | 2.6 | 6 | -30 | 80 | 7.5 | 23290.0052 |
| M 6 | 19.1 | 19.05 | 7.6 | 7.1 | 3.8 | 10.9 | 11 | 0.6 | 5 | 3.8 | 17 | -30 | 80 | 22.0 | 23290.0054 |
| M10 | 25.4 | 25.40 | 10.2 | 11.4 | 6.4 | 17.8 | 17 | 1.2 | 8 | 15.0 | 80 | -30 | 80 | 66.0 | 23290.0056 |
| M12 | 38.1 | 38.10 | 15.2 | 16.3 | 9.5 | 25.8 | 21 | 1.9 | 10 | 20.8 | 140 | -30 | 80 | 195.0 | 23290.0058 |
| blunt edged – picture 2 | |||||||||||||||
| M 4 | 12.7 | 12.70 | 5.1 | 4.8 | 2.6 | 7.4 | 8 | 0.4 | 3 | 2.6 | 6 | -30 | 80 | 6.2 | 23290.0062 |
| M 6 | 19.1 | 19.05 | 7.6 | 7.1 | 3.8 | 10.9 | 11 | 0.6 | 5 | 5.7 | 17 | -30 | 80 | 22.0 | 23290.0064 |
| M10 | 25.4 | 25.40 | 10.2 | 11.4 | 6.4 | 17.8 | 17 | 1.2 | 8 | 15.1 | 80 | -30 | 80 | 65.0 | 23290.0066 |
| M12 | 38.1 | 38.10 | 15.2 | 16.3 | 9.5 | 25.8 | 21 | 1.9 | 10 | 22.0 | 140 | -30 | 80 | 201.0 | 23290.0068 |
Application Example
Part Number
|
|---|
| 23290.0052 |
| 23290.0054 |
| 23290.0056 |
| 23290.0058 |
| 23290.0062 |
| 23290.0064 |
| 23290.0066 |
| 23290.0068 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | d (mm) | h1 (mm) | h2 (mm) | h3 (mm) | h4 (mm) | l1 (mm) | l2 (mm) | WS (mm) | b (mm) | s Clamping way (mm) | Tightening torque max. (Nm) | Clamping force (kN) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
38.16 € | 1 | 3 Days | 10 | M4 | 4.8 | 2.6 | ~ 7.4 | ~ 8 | 12.7 | 5.1 | 3 | 12.7 | 0.4 | 6 | 2.6 | |||
49.35 € | 1 | 4 Days | 10 | M6 | 7.1 | 3.8 | ~ 10.9 | ~ 11 | 19.05 | 7.6 | 5 | 19.1 | 0.6 | 17 | 3.8 | |||
72.04 € | 1 | 4 Days | 10 | M10 | 11.4 | 6.4 | ~ 17.8 | ~ 17 | 25.4 | 10.2 | 8 | 25.4 | 1.2 | 80 | 15 | |||
131.91 € | 1 | 4 Days | 10 | M12 | 16.3 | 9.5 | ~ 25.8 | ~ 21 | 38.1 | 15.2 | 10 | 38.1 | 1.9 | 140 | 20.8 | |||
37.53 € | 1 | 4 Days | 10 | M4 | 4.8 | 2.6 | ~ 7.4 | ~ 8 | 12.7 | 5.1 | 3 | 12.7 | 0.4 | 6 | 2.6 | |||
47.16 € | 1 | 3 Days | 10 | M6 | 7.1 | 3.8 | ~ 10.9 | ~ 11 | 19.05 | 7.6 | 5 | 19.1 | 0.6 | 17 | 5.7 | |||
72.04 € | 1 | 4 Days | 10 | M10 | 11.4 | 6.4 | ~ 17.8 | ~ 17 | 25.4 | 10.2 | 8 | 25.4 | 1.2 | 80 | 15.1 | |||
131.77 € | 1 | 4 Days | 10 | M12 | 16.3 | 9.5 | ~ 25.8 | ~ 21 | 38.1 | 15.2 | 10 | 38.1 | 1.9 | 140 | 22 |
Loading...
Basic information
| Temperature max.(°C) | 80 | Temperature min.(°C) | -30 | Body | Steel, hardened |
|---|---|---|---|---|---|
| O-ring | NBR | Screw | Heat-treated steel | Conflict Minerals free | yes |
| REACH compliant | yes |
Configure
Basic Attributes
-
d(mm)
- M4
- M6
- M10
- M12
-
h1(mm)
-
h2(mm)
-
h3(mm)
- ~ 7.4
- ~ 10.9
- ~ 17.8
- ~ 25.8
-
h4(mm)
- ~ 8
- ~ 11
- ~ 17
- ~ 21
-
l1(mm)
- 12.7
- 19.05
- 25.4
- 38.1
-
l2(mm)
- 5.1
- 7.6
- 10.2
- 15.2
-
WS(mm)
- 3
- 5
- 8
- 10
-
b(mm)
- 12.7
- 19.1
- 25.4
- 38.1
-
s Clamping way(mm)
- 0.4
- 0.6
- 1.2
- 1.9
-
Tightening torque max.(Nm)
-
Clamping force(kN)
-
Type
- 23290
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
