Index Bolt With Hexagon Collar 22120, With T-Handle
· For index holes.
· Dimensions do not change, regardless of whether or not locking mechanisms are present.
· Screw parts are designed to have clearance at the root, so even the hexagonal section can be tightened properly.
· Operating temperature range: -30 to +80°C.
· Use the distance collar (EH22120) to adjust the depth of the screw-in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

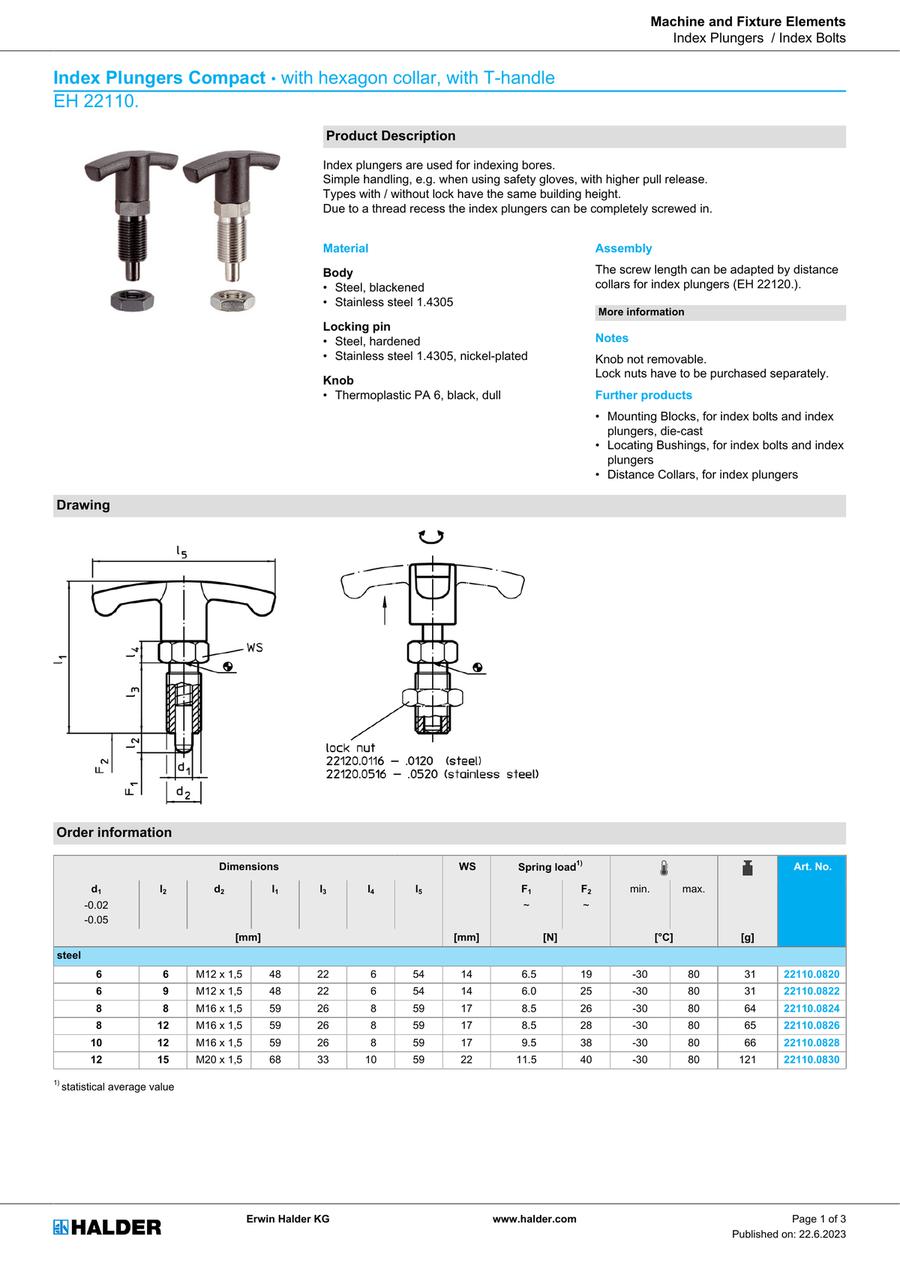

Index Plungers Compact • with hexagon collar, with T-handle, EH 22110.
Product Description
 | Index plungers are used for indexing bores. Simple handling, e.g. when using safety gloves, with higher pull release. Types with / without lock have the same building height. Due to a thread recess the index plungers can be completely screwed in. |
Material
• Steel, blackened
• Stainless steel 1.4305
Locking pin
• Steel, hardened
• Stainless steel 1.4305, nickel-plated
Knob
• Thermoplastic PA 6, black, dull
Assembly
Notes
Lock nuts have to be purchased separately.
Further products
• Locating Bushings, for index bolts and index plungers
• Distance Collars, for index plungers
Drawing
Order Information
| Dimensions | WS | Spring load1) | Operating temperature range | Weight | Art. No. | ||||||||
| d1 | l2 | d2 | l1 | l3 | l4 | l5 | F1 | F2 | min. | max. | |||
| -0.02 -0.05 | ~ | ~ | |||||||||||
| [mm] | [mm] | [N] | [°C] | [g] | |||||||||
| steel | |||||||||||||
| 6 | 6 | M12 x 1,5 | 48 | 22 | 6 | 54 | 14 | 6.5 | 19 | -30 | 80 | 31 | 22110.0820 |
| 6 | 9 | M12 x 1,5 | 48 | 22 | 6 | 54 | 14 | 6.0 | 25 | -30 | 80 | 31 | 22110.0822 |
| 8 | 8 | M16 x 1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 26 | -30 | 80 | 64 | 22110.0824 |
| 8 | 12 | M16 x 1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 28 | -30 | 80 | 65 | 22110.0826 |
| 10 | 12 | M16 x 1,5 | 59 | 26 | 8 | 59 | 17 | 9.5 | 38 | -30 | 80 | 66 | 22110.0828 |
| 12 | 15 | M20 x 1,5 | 68 | 33 | 10 | 59 | 22 | 11.5 | 40 | -30 | 80 | 121 | 22110.0830 |
| stainless steel | |||||||||||||
| 6 | 6 | M12 x 1,5 | 48 | 22 | 6 | 54 | 14 | 6.5 | 19 | -30 | 80 | 31 | 22110.0920 |
| 6 | 9 | M12 x 1,5 | 48 | 22 | 6 | 54 | 14 | 6.0 | 25 | -30 | 80 | 32 | 22110.0922 |
| 8 | 8 | M16 x 1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 26 | -30 | 80 | 64 | 22110.0924 |
| 8 | 12 | M16 x 1,5 | 59 | 26 | 8 | 59 | 17 | 8.5 | 28 | -30 | 80 | 64 | 22110.0926 |
| 10 | 12 | M16 x 1,5 | 59 | 26 | 8 | 59 | 17 | 9.5 | 38 | -30 | 80 | 66 | 22110.0928 |
| 12 | 15 | M20 x 1,5 | 68 | 33 | 10 | 59 | 22 | 11.5 | 40 | -30 | 80 | 120 | 22110.0930 |
Accessories
| Dimensions | Wrench size | Weight | Art. No. | |
| d2 | ||||
| [mm] | [mm] | [g] | ||
| Lock nuts ISO 8675 (DIN 439), steel | ||||
 | M12 x 1,5 | 18 | 7.5 | 22120.0116 |
| M16 x 1,5 | 24 | 15.0 | 22120.0118 | |
| M20 x 1,5 | 30 | 32.0 | 22120.0120 | |
| Lock nuts ISO 8675 (DIN 439), stainless steel | ||||
 | M12 x 1,5 | 18 | 7.5 | 22120.0516 |
| M16 x 1,5 | 24 | 15.0 | 22120.0518 | |
| M20 x 1,5 | 30 | 32.0 | 22120.0520 | |
Application Example
Part Number
|
|---|
| 22110.0820 |
| 22110.0822 |
| 22110.0824 |
| 22110.0826 |
| 22110.0828 |
| 22110.0830 |
| 22110.0920 |
| 22110.0922 |
| 22110.0924 |
| 22110.0926 |
| 22110.0928 |
| 22110.0930 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | RoHS | Tip O.D. d (Ø) | d2 (mm) | l1 (mm) | l2 (mm) | l3 (mm) | l4 (mm) | l5 (mm) | F1 (N) | F2 (N) | s (mm) | Stroke (mm) | WS (mm) | Locking pin | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
8.87 € | 8 | 2 Days | 10 | 6 | M12 x 1,5 | 48 | 6 | 22 | 6 | 54 | ~ 6.5 | ~ 19 | - | 6 | 14 | Steel, hardened | |||
8.87 € | 1 | 2 Days | 10 | 6 | M12 x 1,5 | 48 | 9 | 22 | 6 | 54 | ~ 6 | ~ 25 | - | 9 | 14 | Steel, hardened | |||
11.55 € | 1 | 2 Days | 10 | 8 | M16 x 1,5 | 59 | 8 | 26 | 8 | 59 | ~ 8.5 | ~ 26 | - | 8 | 17 | Steel, hardened | |||
11.55 € | 1 |
Same day
Stock | 10 | 8 | M16 x 1,5 | 59 | 12 | 26 | 8 | 59 | ~ 8.5 | ~ 28 | - | 12 | 17 | Steel, hardened | |||
11.55 € | 1 | 16 Days | 10 | 10 | M16 x 1,5 | 59 | 12 | 26 | 8 | 59 | ~ 9.5 | ~ 38 | - | 12 | 17 | Steel, hardened | |||
16.53 € | 1 | 2 Days | 10 | 12 | M20 x 1,5 | 68 | 15 | 33 | 10 | 59 | ~ 11.5 | ~ 40 | - | 15 | 22 | Steel, hardened | |||
15.19 € | 1 | 2 Days | 10 | 6 | M12 x 1,5 | 48 | 6 | 22 | 6 | 54 | ~ 6.5 | ~ 19 | - | 6 | 14 | Stainless steel 1.4305, nickel-plated | |||
15.19 € | 1 | 2 Days | 10 | 6 | M12 x 1,5 | 48 | 9 | 22 | 6 | 54 | ~ 6 | ~ 25 | - | 9 | 14 | Stainless steel 1.4305, nickel-plated | |||
20.06 € | 1 |
Same day
Stock | 10 | 8 | M16 x 1,5 | 59 | 8 | 26 | 8 | 59 | ~ 8.5 | ~ 26 | - | 8 | 17 | Stainless steel 1.4305, nickel-plated | |||
20.06 € | 1 |
Same day
Stock | 10 | 8 | M16 x 1,5 | 59 | 12 | 26 | 8 | 59 | ~ 8.5 | ~ 28 | - | 12 | 17 | Stainless steel 1.4305, nickel-plated | |||
20.06 € | 4 | 2 Days | 10 | 10 | M16 x 1,5 | 59 | 12 | 26 | 8 | 59 | ~ 9.5 | ~ 38 | 12 | 12 | 17 | Stainless steel 1.4305, nickel-plated | |||
28.83 € | 1 | 3 Days | 10 | 12 | M20 x 1,5 | 68 | 15 | 33 | 10 | 59 | ~ 11.5 | ~ 40 | 15 | 15 | 22 | Stainless steel 1.4305, nickel-plated |
Loading...
Basic information
| Type | Special Knob | Mounting Method | Screw-In | Operation Knob | Presence |
|---|---|---|---|---|---|
| Knob | Thermoplastic PA 6, black, dull | Temperature min.(°C) | -30 | Temperature max.(°C) | 80 |
| Conflict Minerals free | yes | REACH compliant | yes |
