Hinge Base Plates / slotted holes / steel / zinc plated / 139.3-170 / GANTER
- Volume Discount

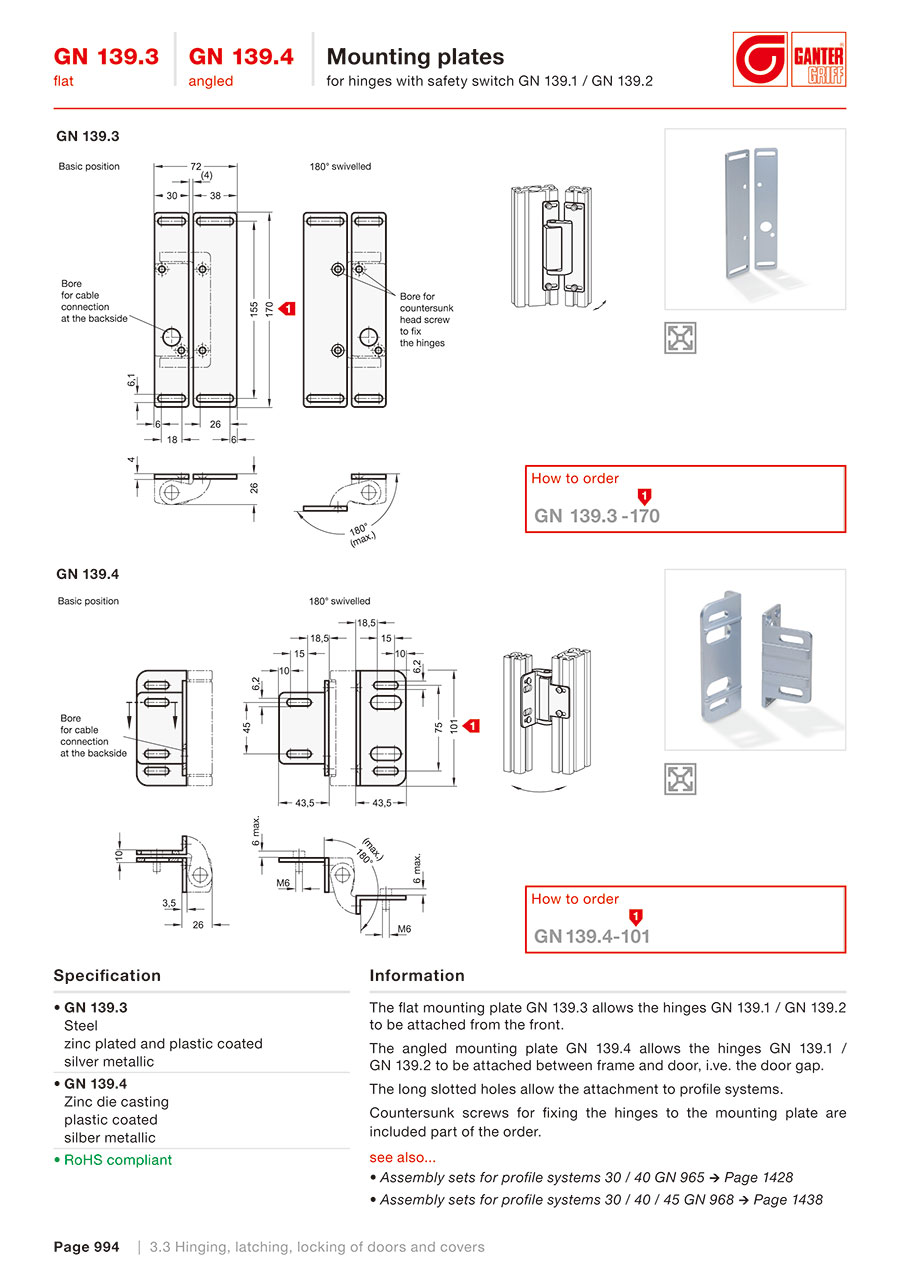

The flat mounting plate GN 139.3 allows the hinges GN 139.1 / GN 139.2 to be attached from the front.
The long slotted holes allow the attachment to profile
s ystems.
Countersunk screws for fixing the hinges to the mounting plate are
included part of the order.
The long slotted holes allow the attachment to profile
s ystems.
Countersunk screws for fixing the hinges to the mounting plate are
included part of the order.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
139.3-170
Basic information
| Length l1(mm) | 170 | Weight(kg) | 0.358 |
|---|
This page is Hinge Base Plates / slotted holes / steel / zinc plated / 139.3-170 / GANTER, part number 139.3-170.
You can find the detail information about specifications and dimensions on part number 139.3-170.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
