PLRB+C - Side mount -for bayonet cap technopolymer
- Volume Discount

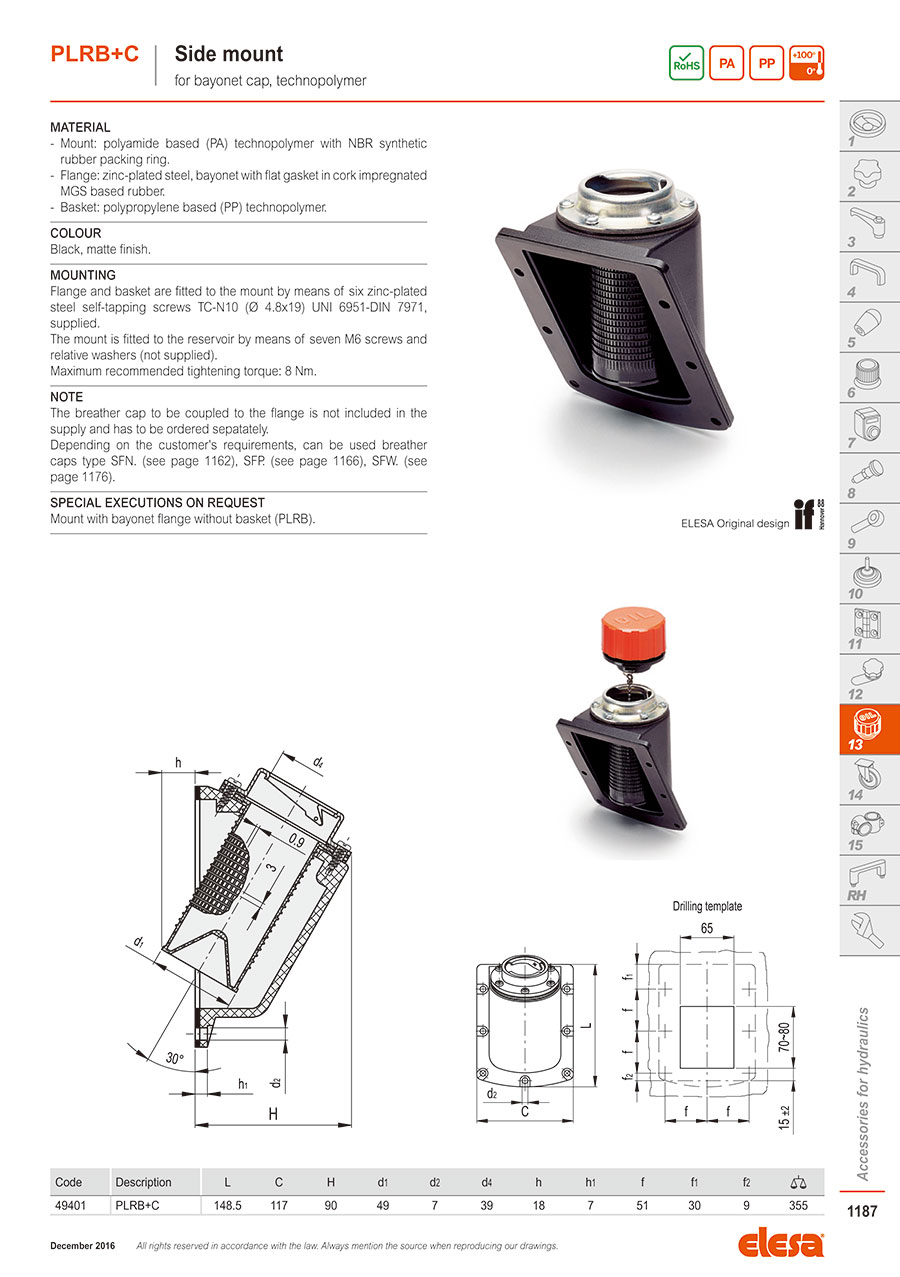

Polyamide-based technopolymer side filling plate for bayonet cap with NBR synthetic rubber packing ring, polished zinc-plated steel flange with bayonet quick connect with flat washer in cork impregnated with MGS rubber and polypropylene-based technopolymer filter basket.Depending on requirements, type SFN, SFP or SFW breather caps can be used.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
49401
Basic information
| C | 117 | d1 | 49 | d2 | 7 |
|---|---|---|---|---|---|
| d4 | 39 | f | 51 | f1 | 30 |
| f2 | 9 | H | 90 | h | 18 |
| h1 | 7 | L | 148.5 | Material | Technopolymer-Steel |
| Description | PLRB+C |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
