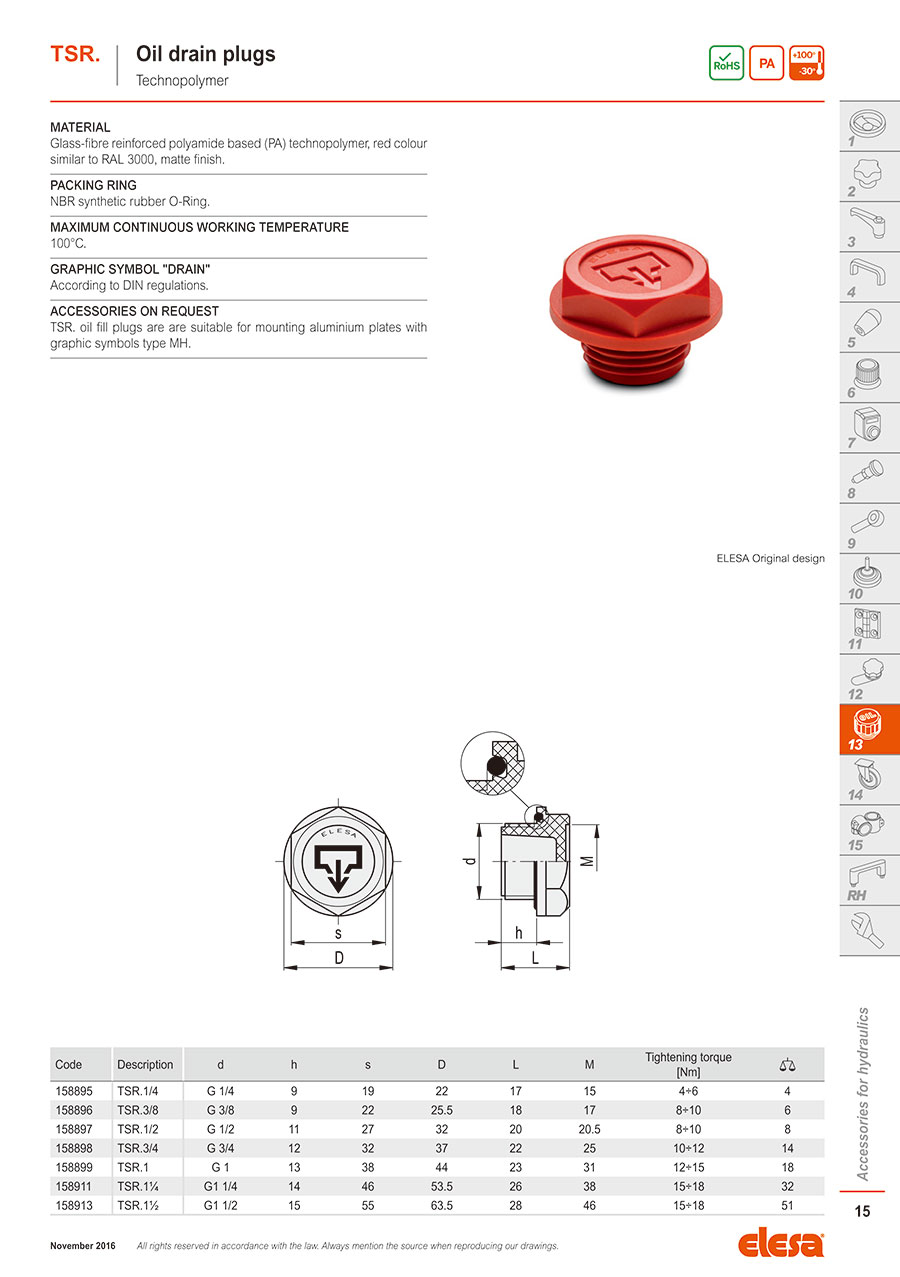

TSR. - Oil drain plugs -Technopolymer
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 158895 |
| 158896 |
| 158897 |
| 158898 |
| 158899 |
| 158911 |
| 158913 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | d | D | h | L | M | s | Tightening torque unit | Description | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
2.29 € | 10 | Available | 4 Days | G 1/4 | 22 | 9 | 17 | 15 | 19 | 4÷6 | TSR.1/4 | |
2.62 € | 10 | Available | 4 Days | G 3/8 | 25.5 | 9 | 18 | 17 | 22 | 8÷10 | TSR.3/8 | |
2.20 € | 10 | Available | 4 Days | G 1/2 | 32 | 11 | 20 | 20.5 | 27 | 8÷10 | TSR.1/2 | |
2.82 € | 10 | Available | 4 Days | G 3/4 | 37 | 12 | 22 | 25 | 32 | 10÷12 | TSR.3/4 | |
3.50 € | 10 | Available | 4 Days | G 1 | 44 | 13 | 23 | 31 | 38 | 12÷15 | TSR.1 | |
5.15 € | 10 | Available | 4 Days | G1 1/4 | 53.5 | 14 | 26 | 38 | 46 | 15÷18 | TSR.1¼ | |
5.52 € | 10 | Available | 4 Days | G1 1/2 | 63.5 | 15 | 28 | 46 | 55 | 15÷18 | TSR.1½ |
Loading...
Basic information
| Material | Technopolymer |
|---|
Configure
Basic Attributes
-
d
- G 1
- G1 1/2
- G1 1/4
- G 1/2
- G 1/4
- G 3/4
- G 3/8
-
D
-
h
-
L
-
M
- 15
- 17
- 20.5
- 25
- 31
- 38
- 46
-
s
-
Tightening torque unit
- 4÷6
- 8÷10
- 10÷12
- 12÷15
- 15÷18
-
Type
- 158
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
