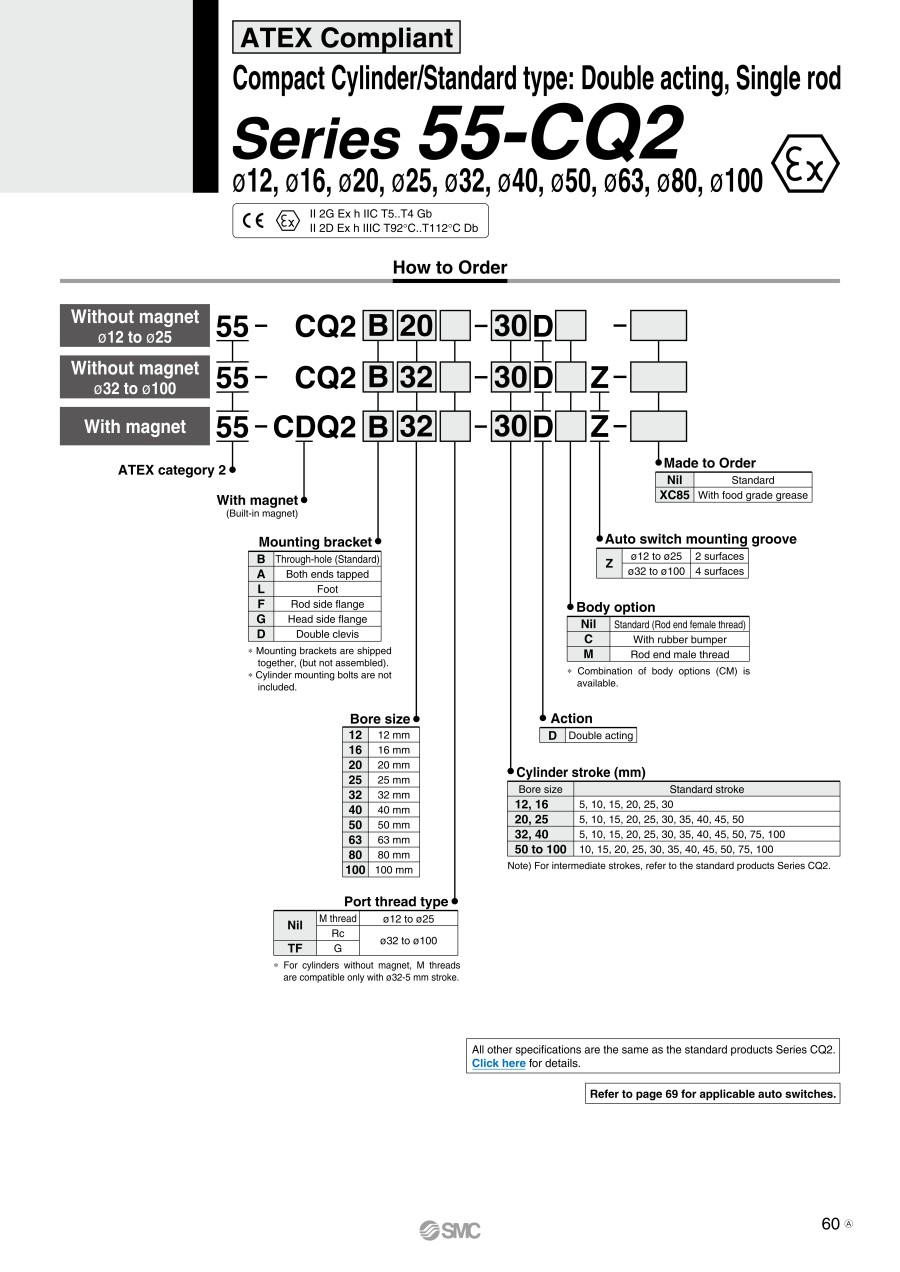

Compact Cylinder, Standard Type, Double Acting, Single Rod 55-CQ2 Series
(i)Remark
- ■ SMC Air Cylinder Product Selection and Technical Information
Please check the special page from here.
■About SMC product handling
products without a web page will be released one by one.
If you have a fixed model number, please request a quote / order from here. - Refer to the manufacturer's catalog for specification and material details.
- Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Cylinder I.D: D (Ø) | Stroke: L (mm) | Operating Pressure (MPa) | Specifications | Support bracket | Port thread type | Body Options | Custom-made Specifications | Auto switch mounting slot | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
50.02 € | 1 | 7 Days | 16 | 30 | 0.07 to 1.0 | Built-in magnet | Both ends tapped | M Screw | Male rod end | Standard type | 2 surfaces | ||
48.87 € | 1 | Quote | 20 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | M Screw | Standard (rod-end female thread) | Standard type | None | ||
48.87 € | 1 | 7 Days | 20 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
49.03 € | 1 | 7 Days | 25 | 15 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
53.73 € | 1 | 7 Days | 25 | 30 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
92.29 € | 1 | 7 Days | 32 | 10 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | With rubber bumper | Standard type | 4 surfaces | ||
60.60 € | 1 | 7 Days | 32 | 10 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
67.15 € | 1 | 7 Days | 32 | 40 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
90.95 € | 1 | 7 Days | 32 | 100 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | With rubber cushion / rod tip male screw | Standard type | 4 surfaces | ||
63.40 € | 1 | 7 Days | 32 | 15 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Male rod end | Standard type | 4 surfaces | ||
62.52 € | 1 | 7 Days | 32 | 20 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
69.00 € | 1 | 7 Days | 32 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | With rubber bumper | Standard type | 4 surfaces | ||
63.35 € | 1 | 7 Days | 32 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
74.11 € | 1 | 7 Days | 32 | 50 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Male rod end | Standard type | 4 surfaces | ||
80.65 € | 1 | 7 Days | 40 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
78.08 € | 1 | 7 Days | 40 | 15 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
90.05 € | 1 | 7 Days | 40 | 50 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
108.48 € | 1 | 7 Days | 50 | 75 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | With rubber bumper | Standard type | 4 surfaces | ||
87.94 € | 1 | 7 Days | 50 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
100.85 € | 1 | 7 Days | 50 | 75 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
108.92 € | 1 | 7 Days | 50 | 100 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
118.18 € | 1 | 26 Days | 63 | 25 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
162.29 € | 1 | 7 Days | 80 | 50 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
217.65 € | 1 | 7 Days | 100 | 50 | 0.05 to 1.0 | Built-in magnet | Both ends tapped | G | With rubber bumper | Standard type | 4 surfaces | ||
32.03 € | 1 | 7 Days | 12 | 5 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
35.34 € | 1 | 28 Days | 12 | 10 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
35.34 € | 1 | 7 Days | 12 | 10 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
45.44 € | 1 | 7 Days | 12 | 20 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
34.39 € | 1 | Quote | 16 | 5 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
37.69 € | 1 | 28 Days | 16 | 10 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
48.15 € | 1 | 28 Days | 16 | 25 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
50.02 € | 1 | 7 Days | 16 | 30 | 0.07 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Male rod end | Standard type | 2 surfaces | ||
45.94 € | 1 | 7 Days | 20 | 5 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | With rubber bumper | Standard type | 2 surfaces | ||
41.97 € | 1 | 7 Days | 20 | 10 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
44.71 € | 1 | 7 Days | 20 | 15 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
54.61 € | 1 | Quote | 20 | 20 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | With rubber cushion / rod tip male screw | Standard type | None | ||
54.56 € | 1 | 7 Days | 20 | 20 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | With rubber cushion / rod tip male screw | Standard type | 2 surfaces | ||
55.66 € | 1 | 28 Days | 20 | 40 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
55.66 € | 1 | 7 Days | 20 | 40 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
58.53 € | 1 | 7 Days | 20 | 50 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
45.85 € | 1 | 28 Days | 25 | 5 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
47.42 € | 1 | 28 Days | 25 | 10 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
47.47 € | 1 | 7 Days | 25 | 10 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
49.03 € | 1 | 9 Days | 25 | 15 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
50.66 € | 1 | 7 Days | 25 | 20 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
52.11 € | 1 | 28 Days | 25 | 25 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
57.95 € | 1 | 28 Days | 25 | 40 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | None | ||
58.00 € | 1 | 7 Days | 25 | 40 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
62.15 € | 1 | 7 Days | 25 | 50 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | M Screw | Standard (rod-end female thread) | Standard type | 2 surfaces | ||
60.60 € | 1 | 7 Days | 32 | 10 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
63.40 € | 1 | 7 Days | 32 | 25 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
74.11 € | 1 | 7 Days | 32 | 50 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | Rc | Male rod end | Standard type | 4 surfaces | ||
77.40 € | 1 | 7 Days | 32 | 75 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | Rc | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
60.60 € | 1 | 7 Days | 32 | 10 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
61.48 € | 1 | 7 Days | 32 | 15 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
62.45 € | 1 | 7 Days | 32 | 20 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
69.00 € | 1 | 7 Days | 32 | 25 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | With rubber bumper | Standard type | 4 surfaces | ||
63.31 € | 1 | 7 Days | 32 | 25 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
65.65 € | 1 | 7 Days | 32 | 35 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | Standard (rod-end female thread) | Standard type | 4 surfaces | ||
74.11 € | 1 | 7 Days | 32 | 50 | 0.05 to 1.0 | Built-in magnet | Through-hole (standard) | G | Male rod end | Standard type | 4 surfaces |
Loading...
Basic information
| Cylinder Operation Method | Double Acting | Rod Operation Method | Single Rods | Main Body Shape | Plate Cylinder |
|---|---|---|---|---|---|
| Additional Function | Standard | Environment, Applications | Standard | Operating Temperature(℃) | -10::70 |
| End Locking | NA | Valves | NA |
Configure
Basic Attributes
-
Cylinder I.D: D(Ø)
-
Stroke: L(mm)
-
Operating Pressure(MPa)
- 0.05 to 1.0
- 0.07 to 1.0
-
Specifications
- Built-in magnet
- Without magnet
-
Support bracket
-
Port thread type
- G
- M Screw
- Rc
-
Body Options
-
Custom-made Specifications
- Food grease specifications
- Standard type
-
Auto switch mounting slot
- 2 surfaces
- 4 surfaces
- None
-
Type
- 55-CDQ2
- 55-CQ2
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 7 Days or Less
- 9 Days or Less
- 26 Days or Less
- 28 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
