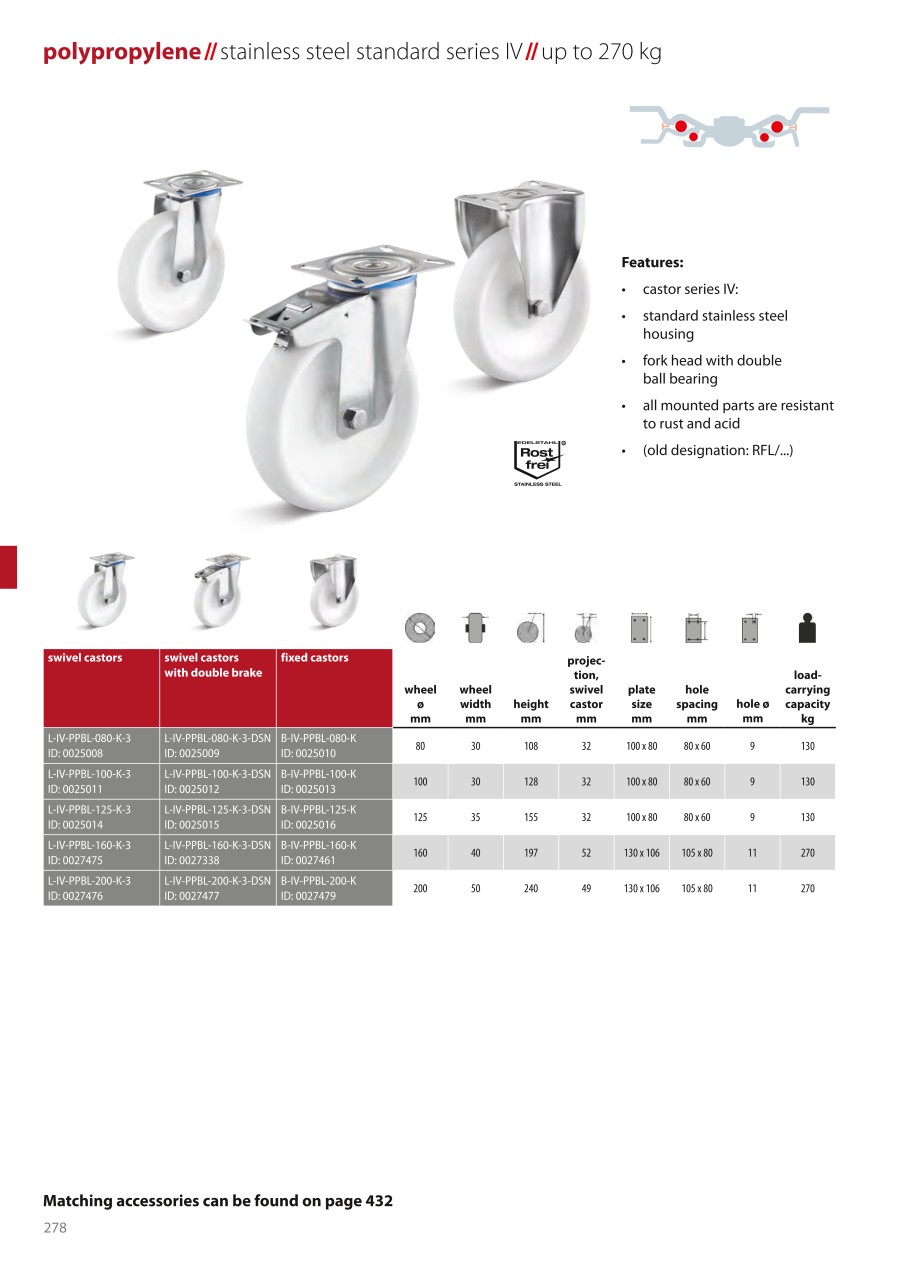

Stainless steel swivel Castors with double stop and polypropylene wheel
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-IV-PPBL-080-K-3-DSN |
| L-IV-PPBL-100-K-3-DSN |
| L-IV-PPBL-125-K-3-DSN |
| L-IV-PPBL-160-K-3-DSN |
| L-IV-PPBL-200-K-3-DSN |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Screw hole (mm) | Swivel Radius (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
27.52 € | 1 | 5 Days | 100 | 80 | 80 | 30 | 130 | 108 | 32 | 80 | 60 | 9 | 110 | 0.62 | ||
28.29 € | 1 | 5 Days | 100 | 80 | 100 | 30 | 130 | 128 | 32 | 80 | 60 | 9 | 110 | 0.66 | ||
31.44 € | 1 | 5 Days | 100 | 80 | 125 | 35 | 130 | 155 | 32 | 80 | 60 | 9 | 114 | 0.758 | ||
58.69 € | 1 | 5 Days | 130 | 106 | 160 | 40 | 270 | 197 | 52 | 105 | 80 | 11 | 150 | 1.5 | ||
65.33 € | 1 | 5 Days | 130 | 106 | 200 | 50 | 270 | 240 | 49 | 105 | 80 | 11 | 153 | 1.95 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Mounting plate | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing Series Type | IV (LF/BF) | Housing material RR | Stainless Steel | Rim material | Polypropylene |
| Tread material | Polypropylene | electrically conductive | none | Tread color | White |
| Housing classification | Stainless steel standard series IV |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Screw hole(mm)
-
Swivel Radius(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
