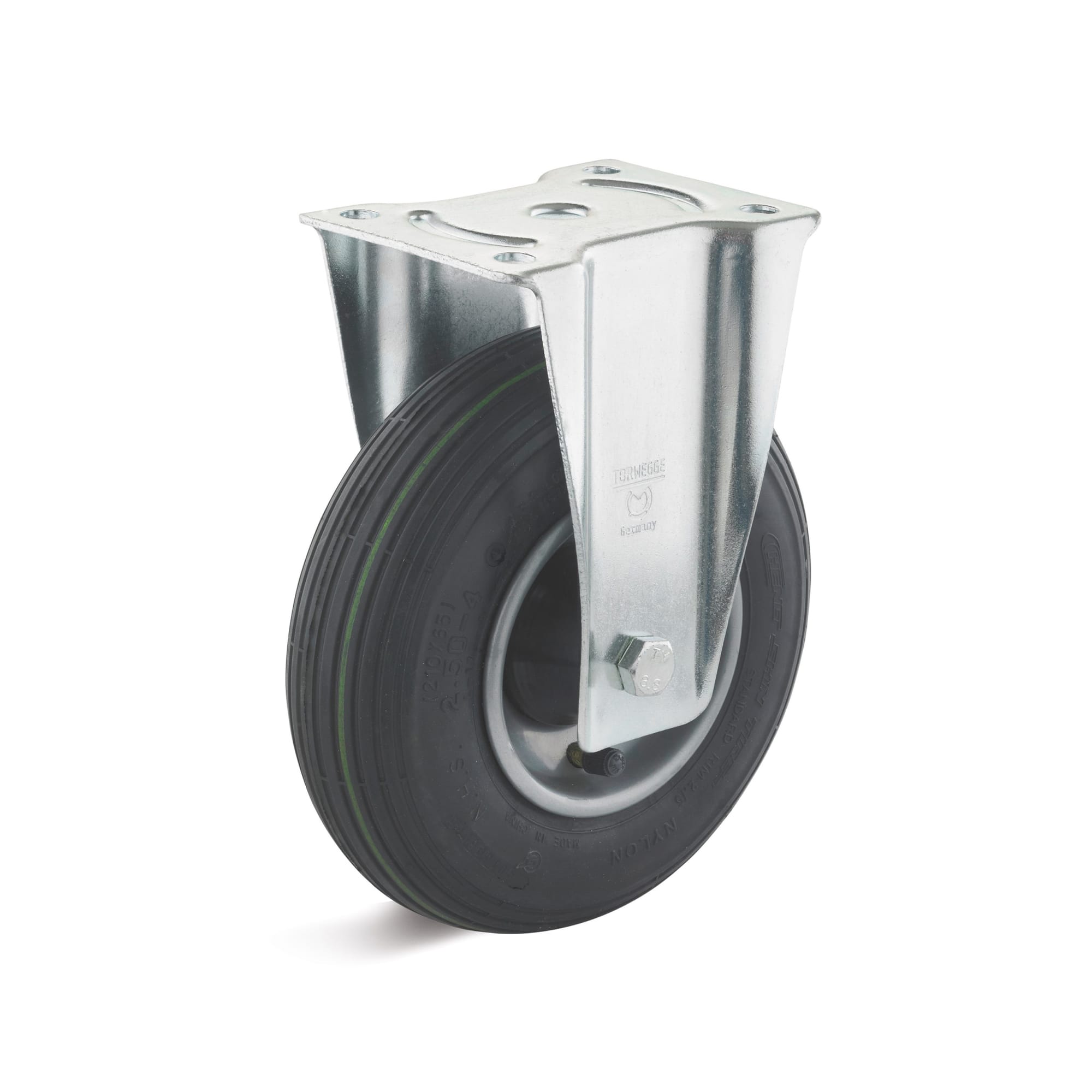

Fixed Castors with pneumatic wheel, sheet steel rim
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-IL-LRS1-200-R |
| B-IP-LRS1-230-R |
| B-IP-LRS1-260-R |
| B-IP-LRS1-260-R-4PR |
| B-IP-LRS1-400-R |
| B-IP-LRS2-260-R |
| B-IP-LRS2-400-R |
| B-IP-LRS3-230-R |
| B-IP-LRS4-245-R |
| B-IP-LRS5-300-R |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Housing Series Type | Bolt Hole Length (mm) | Bolt hole width (mm) | Screw hole (mm) | Housing design | Overall height housing (to center axis) (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
31.59 € | 1 | 5 Days | 135 | 114 | 200 | 50 | 75 | 235 | IL (LCW/BCW) | 105 | 80 | 11 | drawn | - | 1.7 | ||
36.82 € | 1 | 5 Days | 135 | 114 | 230 | 65 | 130 | 260 | IP (LL/LB (air) | 105 | 80 | 11 | drawn | - | 2.25 | ||
45.97 € | 1 | 5 Days | 230 | 130 | 260 | 85 | 200 | 295 | IP (LL/LB (air) | 190 | 75 | 14.5 | drawn | - | 3.97 | ||
54.66 € | 1 | 5 Days | 230 | 130 | 260 | 85 | 200 | 295 | IP (LL/LB (air) | 190 | 75 | 14.5 | drawn | - | 4.1 | ||
152.44 € | 1 | 5 Days | 150 | 150 | 400 | 100 | 250 | 458 | IP (LL/LB (air) | 125 | 125 | 10 | welded | - | 6.4 | ||
47.74 € | 1 | 5 Days | 230 | 130 | 260 | 85 | 200 | 295 | IP (LL/LB (air) | 190 | 75 | 14.5 | drawn | - | 4.07 | ||
159.41 € | 1 | 5 Days | 150 | 150 | 400 | 100 | 250 | 458 | IP (LL/LB (air) | 125 | 125 | 10 | welded | - | 6.4 | ||
38.42 € | 1 | 5 Days | 135 | 114 | 230 | 65 | 130 | 260 | IP (LL/LB (air) | 105 | 80 | 11 | drawn | 145 | 2.27 | ||
171.75 € | 1 | 5 Days | 230 | 130 | 245 | 80 | 250 | 288 | IP (LL/LB (air) | 190 | 75 | 15 | drawn | - | 2.85 | ||
171.22 € | 1 | 5 Days | 150 | 150 | 300 | 100 | 250 | 408 | IP (LL/LB (air) | 125 | 125 | 10 | welded | - | 7.79 |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate | Wheel bearing | Roller bearing |
|---|---|---|---|---|---|
| Housing material RR | Steel galvanized | Material Description Housing | Sheet steel housing, galvanized | Surface coating | galvanized |
| Number of wheels [piece] | 1 | Rim material | Sheet steel, painted | Tread material | Pneumatic tires |
| electrically conductive | none | Tread color | Black | Tread type | crowned |
| Housing classification | Standard housing IL | Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 50 |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Housing Series Type
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Screw hole(mm)
-
Housing design
- drawn
- welded
-
Overall height housing (to center axis)(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
