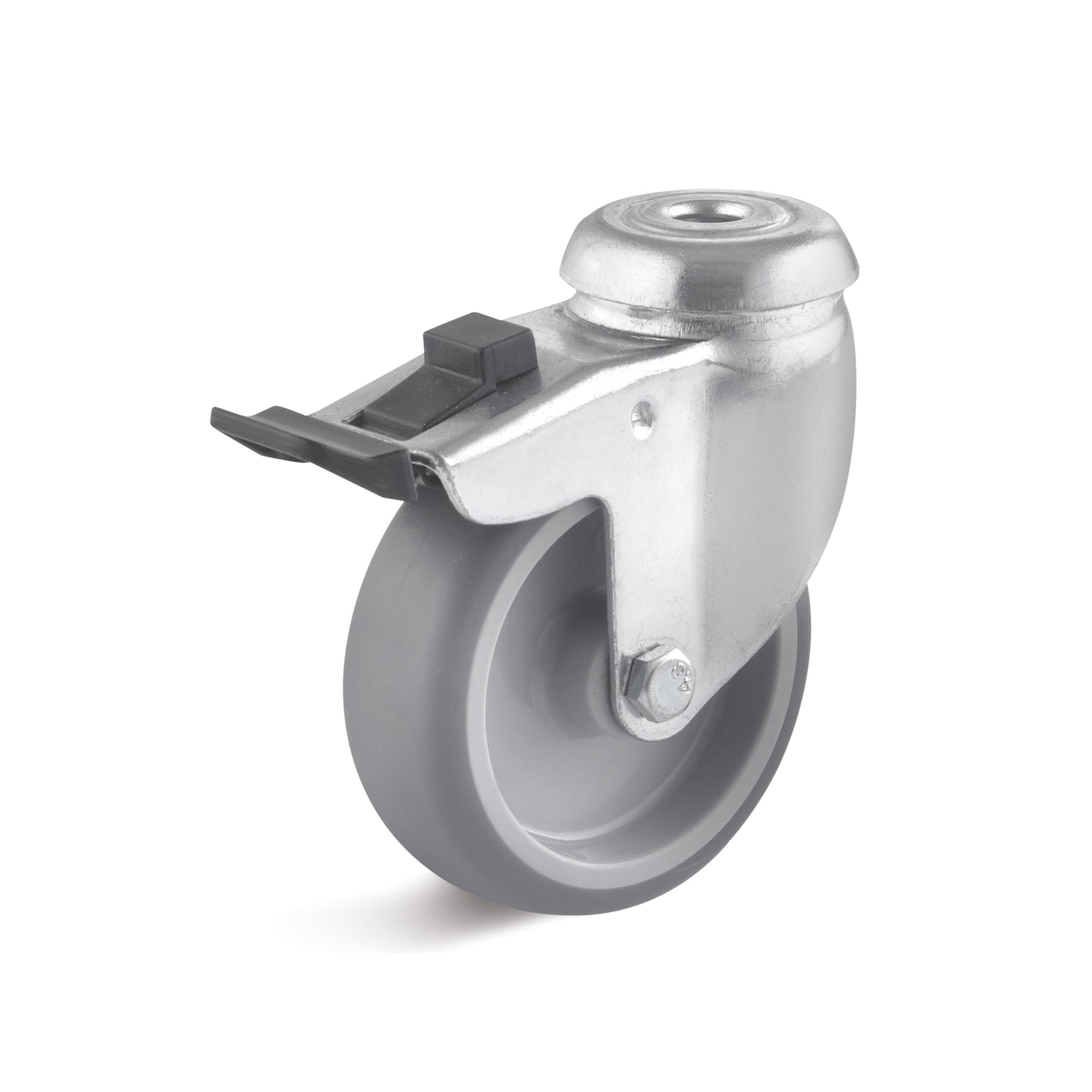

Apparatus rolls with lock and back hole as a set
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-AL-TPBK-050-K-1-DSN-VE4 |
| L-AL-TPBK-075-K-1-DSN-VE4 |
| L-AL-TPGK-050-G-1-DSN-VE4 |
| L-AL-TPGK-075-G-1-DSN-VE4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Wheel bearing | Surface coating | Bolt hole Ø (mm) | Tread color | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
16.53 € | 1 | 5 Days | 50 | 18 | 40 | 70 | Ball-bearing | - | 10.2 | - | 0.848 | ||
20.65 € | 1 | 6 Days | 75 | 25 | 50 | 100 | Ball-bearing | - | 10.2 | - | 1.224 | ||
12.10 € | 1 | 5 Days | 50 | 18 | 40 | 70 | Bearing | galvanized | 10.5 | Grey | 0.768 | ||
15.26 € | 1 | 5 Days | 75 | 25 | 50 | 100 | Bearing | galvanized | 10.5 | Grey | 1.144 |
Loading...
Basic information
| Discharge swivel castor(mm) | 25 | Rolls and case type | Steering housing | Mounting type | Baack hole |
|---|---|---|---|---|---|
| Housing material RR | Steel galvanized | Clevis connection | riveted | Rim material | Polypropylene |
| Tread material | Thermoplastic | Housing design | drawn | Stop Type | DS-N (double stop in the wake) |
| Housing classification | Apparatus rolls easily AL | Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 60 |
Configure
Basic Attributes
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Wheel bearing
- Ball-bearing
- Bearing
-
Surface coating
- galvanized
-
Bolt hole Ø(mm)
- 10.2
- 10.5
-
Tread color
- Grey
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
