Sub-base, PAML Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|

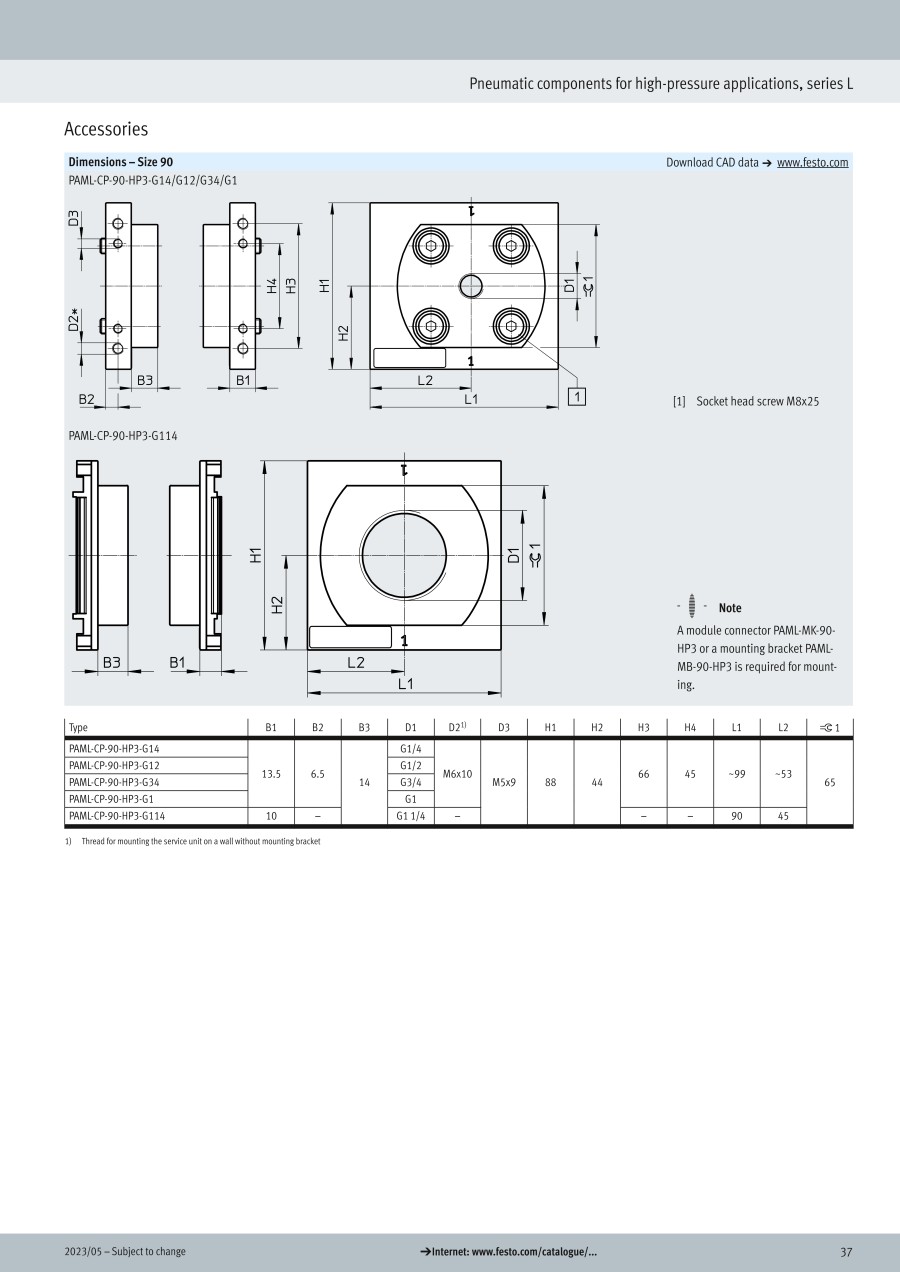

| PAML-CP-90-HP3-G1 |
| PAML-CP-90-HP3-G12 |
| PAML-CP-90-HP3-G14 |
| PAML-CP-90-HP3-G34 |
| PAML-CP-90-HP3-G114 |
| PAML-CP-186-HP3-G2 |
| PAML-CP-186-HP3-G14 |
| PAML-CP-186-HP3-G112 |
| PAML-CP-186-HP3-G114 |
| PAML-CP-186-HP3-G212 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Pneumatic connection 1 | Pneumatic connection 2 | Size | Nominal width (mm) | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
884.80 € | 1 | 4 Days | G1 | G1 | 90 | 36 | 1651543 | 730 | |||
701.69 € | 1 | Quote | G1/2 | G1/2 | 90 | 36 | 1651541 | 770 | |||
704.98 € | 1 | Quote | G1/4 | G1/4 | 90 | 36 | 1651540 | 800 | |||
712.72 € | 1 | Quote | G3/4 | G3/4 | 90 | 36 | 1651542 | 750 | |||
887.42 € | 1 | Quote | G1 1/4 | G1 1/4 | 90 | 36 | 1448978 | 500 | |||
1,038.12 € | 1 | Quote | G2 | G2 | 186 | 54 | 1629298 | 4400 | |||
1,038.12 € | 1 | Quote | G1/4 | G1/4 | 186 | 54 | 1629300 | 4700 | |||
1,038.12 € | 1 | Quote | G1 1/2 | G1 1/2 | 186 | 54 | 1629297 | 4500 | |||
1,038.12 € | 1 | Quote | G1 1/4 | G1 1/4 | 186 | 54 | 1629296 | 4600 | |||
1,038.12 € | 1 | Quote | G2 1/2 | G2 1/2 | 186 | 54 | 1629299 | 4900 |
Loading...
Basic information
| Operating Temperature Range(°C) | 5::60 | Seals material | NBR | Material of screws | Stainless steel |
|---|---|---|---|---|---|
| Material of sub-base | Wrought aluminum alloy | Min. Operating pressure(bar) | 0 | Max. Operating pressure(bar) | 50 |
| Min. Temperature of medium(°C) | 5 | Max. Temperature of medium(°C) | 60 | Min. Storage temperature(°C) | -10 |
| Max. Storage temperature(°C) | 60 | Operating medium | Compressed air as per ISO 8573-1:2010 [-:-:-] | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
