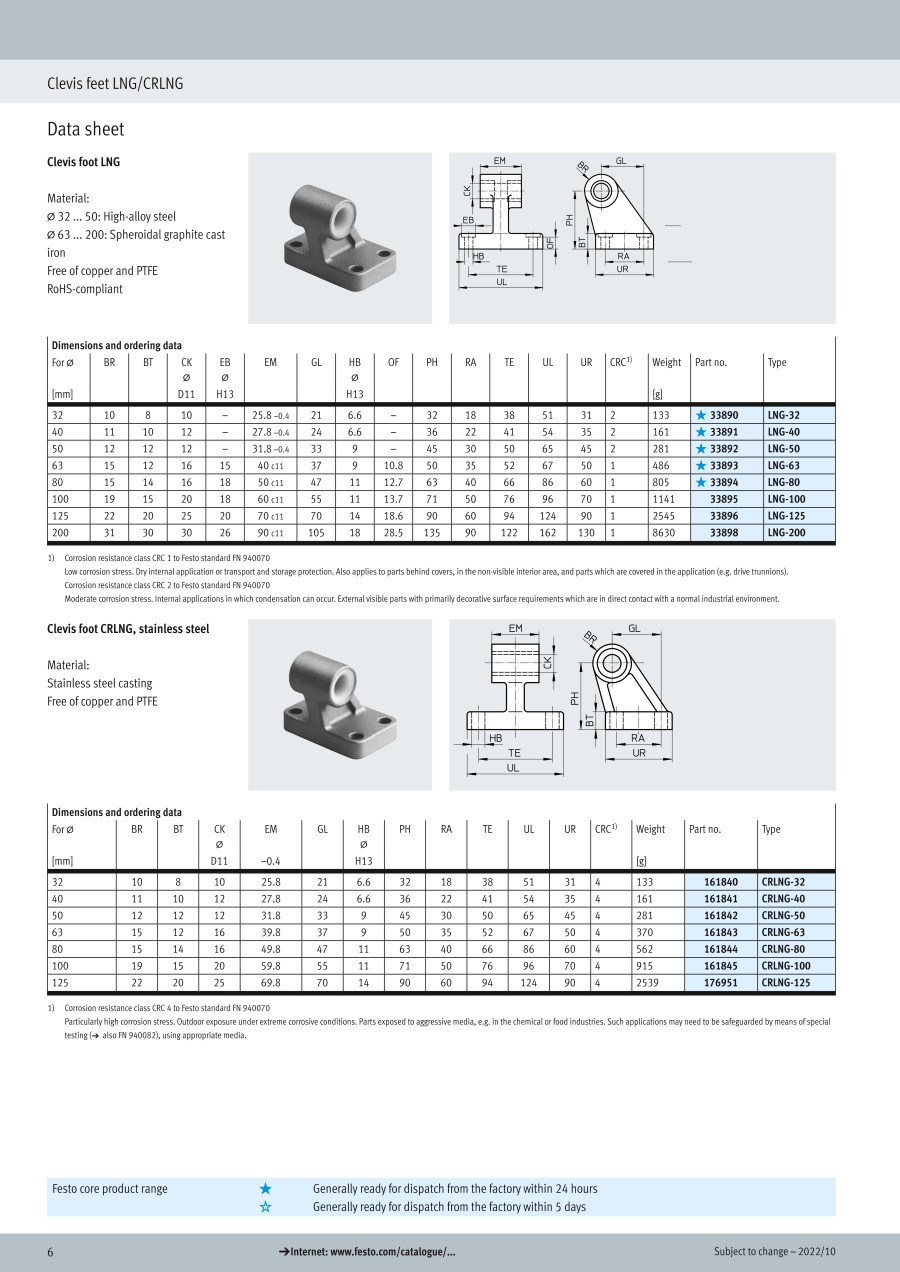

Clevis foot, LNG Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| LNG-32 |
| LNG-40 |
| LNG-50 |
| LNG-80 |
| LNG-100 |
| LNG-125 |
| LNG-200 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | Mounting material | Material of bearing | Corrosion resistance class (CRC) | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
21.82 € | 1 | 3 Days | 32 | Tempered steel | PA | 2 - Moderate corrosion stress | 33890 | 133 | |||
25.20 € | 1 | 3 Days | 40 | Tempered steel | PA | 2 - Moderate corrosion stress | 33891 | 161 | |||
29.18 € | 1 | 3 Days | 50 | Tempered steel | PA | 2 - Moderate corrosion stress | 33892 | 281 | |||
43.34 € | 1 | 3 Days | 80 | Spherulitic graphite iron | PA | 1 - Low corrosion stress | 33894 | 805 | |||
51.57 € | 1 | 3 Days | 100 | Spherulitic graphite iron | PA | 1 - Low corrosion stress | 33895 | 1141 | |||
79.91 € | 1 | 4 Days | 125 | Spherulitic graphite iron | PA | 1 - Low corrosion stress | 33896 | 2545 | |||
201.32 € | 1 | 4 Days | 200 | Spherulitic graphite iron | - | 1 - Low corrosion stress | 33898 | 8630 |
Loading...
Basic information
| Min. Ambient temperature(°C) | -40 | Max. Ambient temperature(°C) | 80 |
|---|
Configure
Basic Attributes
-
Size
-
Mounting material
- Spherulitic graphite iron
- Tempered steel
-
Material of bearing
- PA
-
Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- 2 - Moderate corrosion stress
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
