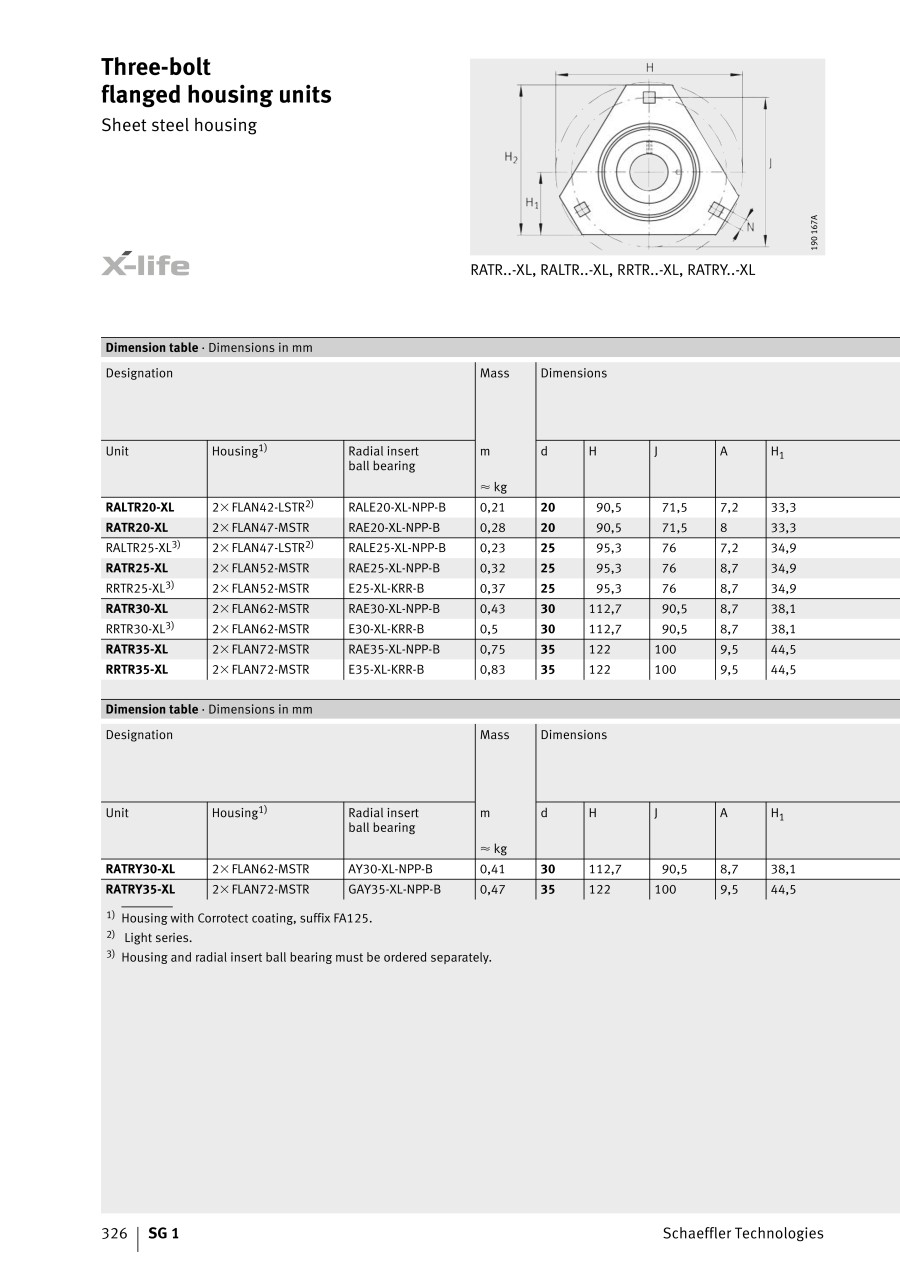

INA Three-Bolt Square Flange Units, Sheet Steel, Eccentric Locking Collar, Lightweight Series, P Seal
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
230RALTR20-XL
- Product data
- CAD data not available
Basic information
| Bearing Unit, Type | Square Flange Type | Shaft Bore Dia. d(mm) | 20 | Unit Body Material | Steel Plate |
|---|---|---|---|---|---|
| Basic Load Rating, Dynamic Rating(N) | 10000 | Basic Load Rating, Static Rating(N) | 5000 | B1(mm) | 24.5 |
| Customs tariff goods number | 84832000 | Method of fixing | Eccentric locking collar | d3 max.(mm) | 30 |
| Number of fixing holes | 3 | Customs tariff weight(kg) | 0.21 | Customs tariff weight unit | kg |
| Unit code | FLAN42-LSTR (2 pieces) | H2(mm) | 76.2 | Unit width A(mm) | 7.2 |
| Hole shape | cylindrical | Pitch circle J(mm) | 71.5 | Base height to shaft center H1/L1(mm) | 333 |
| Unit material | Sheet steel | Model | triangular | Bearing code | RALE20-NPP-B |
| Model series | RALTR.. | U(mm) | 20.6 | V(mm) | 49 |
| Width/diameter of fixing hole N(mm) | 8.7 | Relubrication possible yes/no | no | Customs tariff weight per | 1 |
| Customs tariff country of origin | DE |
This page is INA Three-Bolt Square Flange Units, Sheet Steel, Eccentric Locking Collar, Lightweight Series, P Seal, part number 230RALTR20-XL.
You can find the detail information about specifications and dimensions on part number 230RALTR20-XL.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
