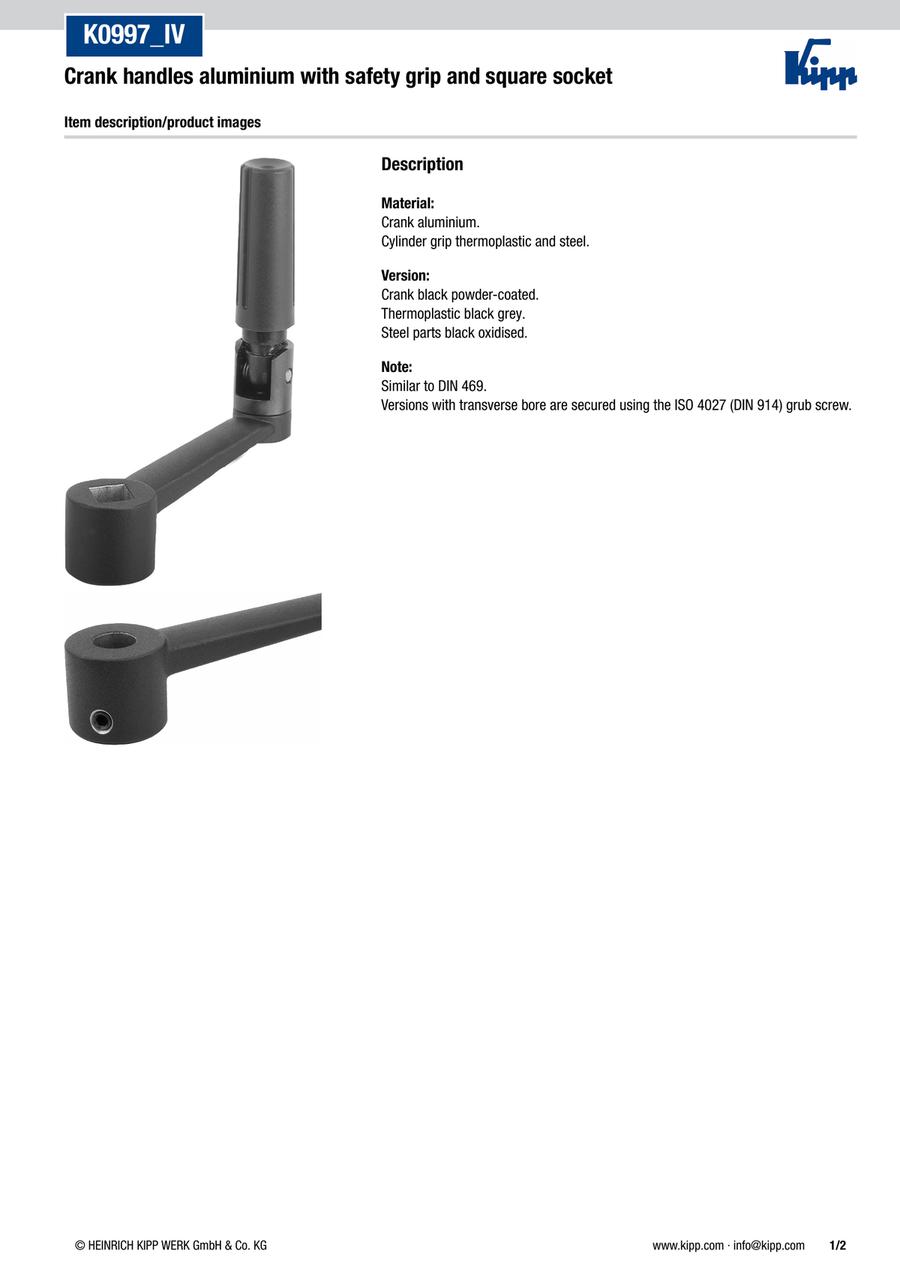

Crank handles aluminium with safety grip and square socket (K0997)
· For long adjustment travel
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· Version: square socket
· Application sectors: machine, plant, armament and instrument construction, measuring equipment
· Version: square socket
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0997.2110 |
| K0997.2212 |
| K0997.2314 |
| K0997.2417 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | A=Centre distance (mm) | D (mm) | D3 (mm) | H=Height (mm) | H1=Handle height (mm) | H2 (mm) | H3 (mm) | L=Length (mm) | SW=key width (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
31.26 € | 1 | 4 Days | 1 | 80 | 24 | 16 | 89 | 49 | 22 | 13.4 | 100 | 10 | ||
35.16 € | 1 | 4 Days | 2 | 100 | 28 | 20 | 107.9 | 59.4 | 26 | 16 | 124 | 12 | ||
38.77 € | 1 | 4 Days | 3 | 125 | 30 | 26 | 140.5 | 83.5 | 28 | 15.8 | 153 | 14 | ||
43.09 € | 1 | 4 Days | 4 | 160 | 34 | 26 | 144.5 | 83.5 | 32 | 19.6 | 190 | 17 |
Loading...
Basic information
| Handle, Material | Aluminum | Grip | cylindrical grip |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
