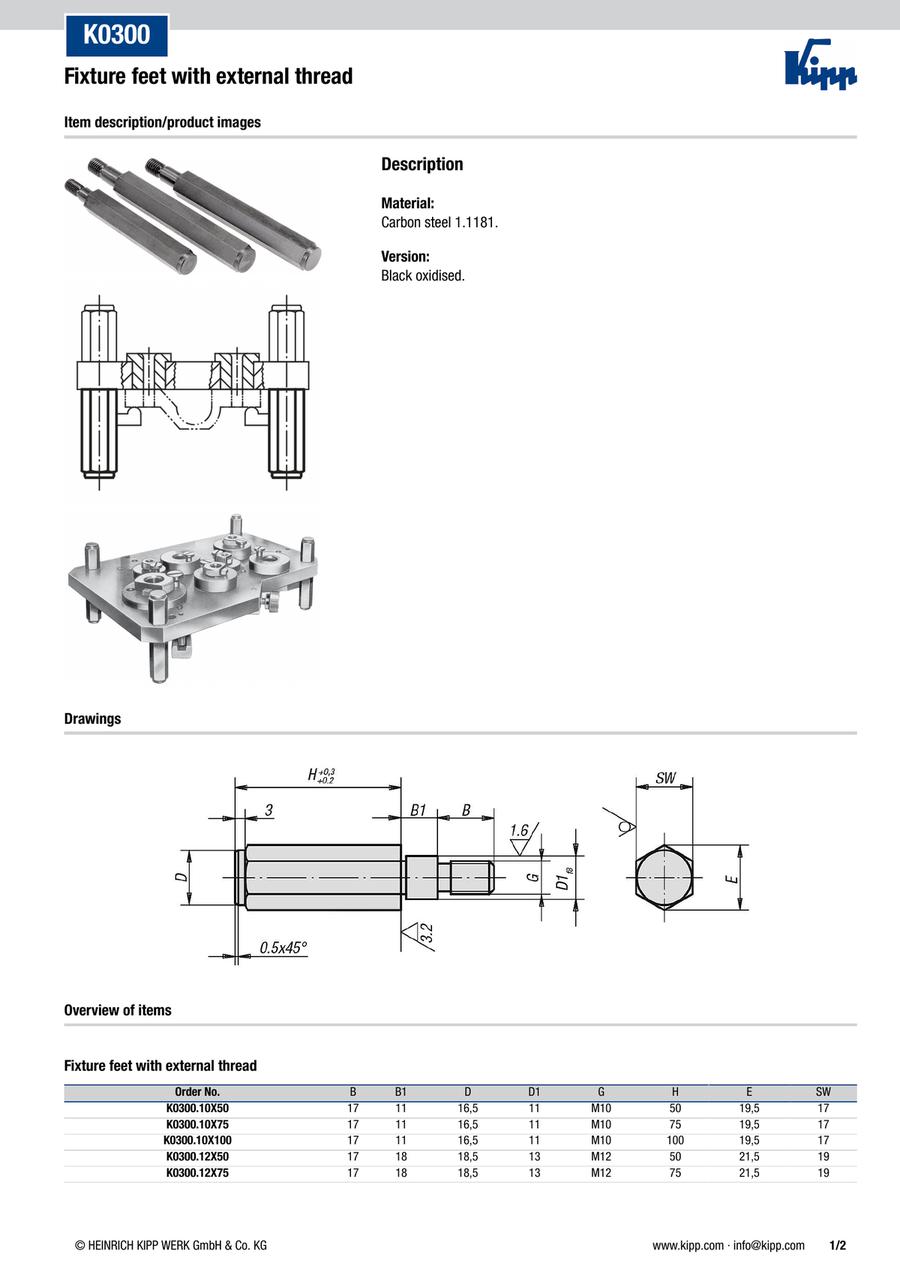

Fixture feet with external thread (K0300)
· Application sectors: machine and fixture construction, toolmaking
· For supporting workpieces and fixtures
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0300.10X50 |
| K0300.10X75 |
| K0300.10X100 |
| K0300.12X50 |
| K0300.12X75 |
| K0300.12X100 |
| K0300.12X125 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B1 (mm) | D (mm) | D1 (mm) | E (mm) | G=Thread | H=Height (mm) | SW=key width (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
13.74 € | 1 | 4 Days | 11 | 16.5 | 11 | 19.5 | M10 | 50 | 17 | ||
15.38 € | 1 | 4 Days | 11 | 16.5 | 11 | 19.5 | M10 | 75 | 17 | ||
16.95 € | 1 | 4 Days | 11 | 16.5 | 11 | 19.5 | M10 | 100 | 17 | ||
18.30 € | 1 | 4 Days | 18 | 18.5 | 13 | 21.5 | M12 | 50 | 19 | ||
19.55 € | 1 | 4 Days | 18 | 18.5 | 13 | 21.5 | M12 | 75 | 19 | ||
20.40 € | 1 | 4 Days | 18 | 18.5 | 13 | 21.5 | M12 | 100 | 19 | ||
20.77 € | 1 | 4 Days | 18 | 18.5 | 13 | 21.5 | M12 | 125 | 19 |
Loading...
Basic information
| Main material | High carbon steel | Surface finish body | black oxidised | Material (mount surface / support surface) | Steel |
|---|---|---|---|---|---|
| B=Thread length(mm) | 17 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
