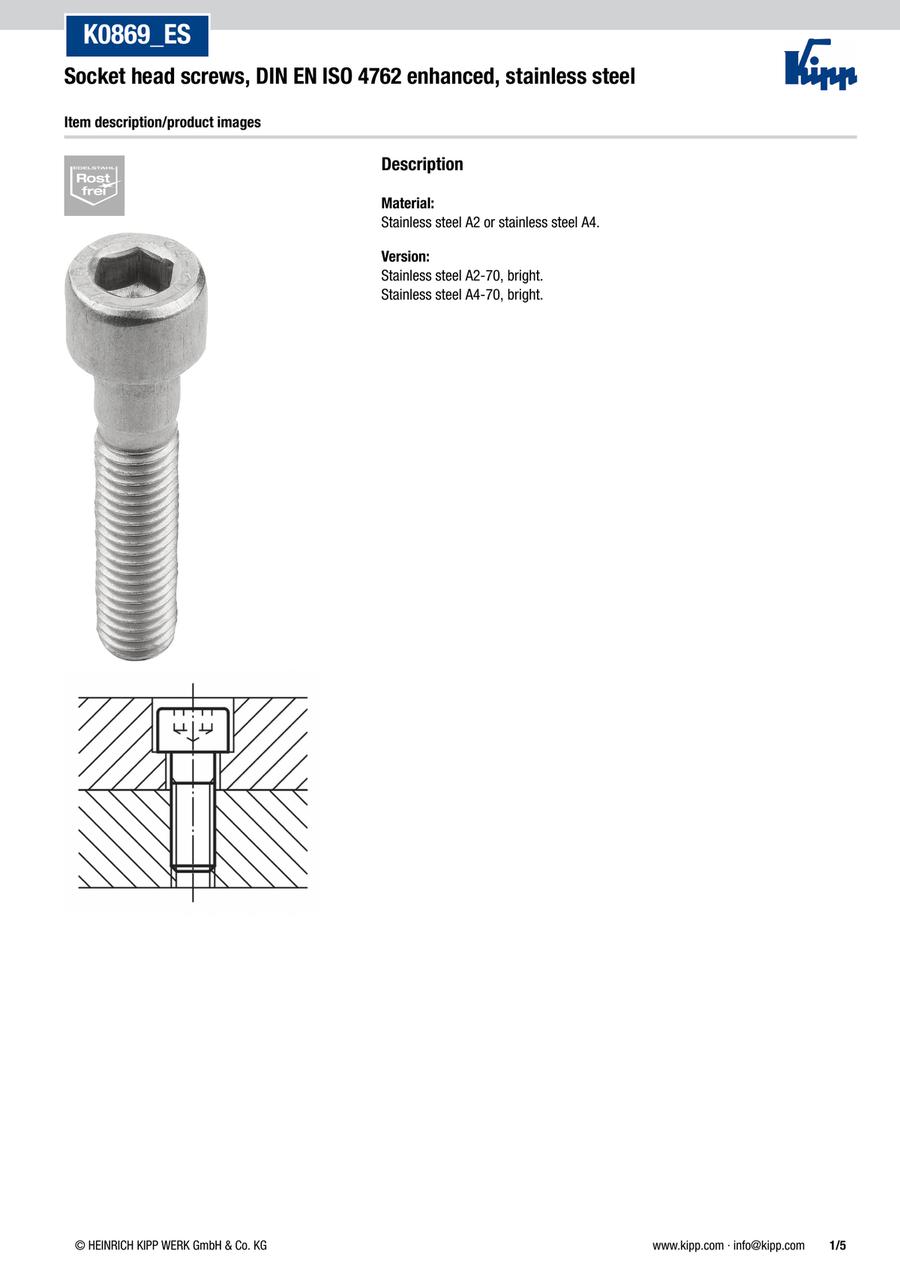

Socket head screws DIN 912 / DIN EN ISO 4762, stainless steel (K0869)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=thread (M) | Length L | Steel code | DK (mm) | SW=key width (mm) | K (mm) | B=Thread length (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
0.38 € | 1 | 4 Days | 4 | 10 | A2 | 7 | 3 | 4 | 20 | ||
0.38 € | 1 | 4 Days | 4 | 12 | A2 | 7 | 3 | 4 | 20 | ||
0.32 € | 1 | 4 Days | 4 | 16 | A2 | 7 | 3 | 4 | 20 | ||
0.32 € | 1 | 4 Days | 4 | 18 | A2 | 7 | 3 | 4 | 20 | ||
0.32 € | 1 | 4 Days | 4 | 20 | A2 | 7 | 3 | 4 | 20 | ||
0.32 € | 1 | 4 Days | 4 | 25 | A2 | 7 | 3 | 4 | 20 | ||
0.38 € | 1 | 4 Days | 5 | 10 | A2 | 8.5 | 4 | 5 | 22 | ||
0.38 € | 1 | 4 Days | 5 | 12 | A2 | 8.5 | 4 | 5 | 22 | ||
0.35 € | 1 | 4 Days | 5 | 16 | A2 | 8.5 | 4 | 5 | 22 | ||
0.35 € | 1 | 4 Days | 5 | 18 | A2 | 8.5 | 4 | 5 | 22 | ||
0.35 € | 1 | 4 Days | 5 | 20 | A2 | 8.5 | 4 | 5 | 22 | ||
0.35 € | 1 | 4 Days | 5 | 25 | A2 | 8.5 | 4 | 5 | 22 | ||
0.36 € | 1 | 4 Days | 5 | 30 | A2 | 8.5 | 4 | 5 | 22 | ||
0.40 € | 1 | 4 Days | 5 | 40 | A2 | 8.5 | 4 | 5 | 22 | ||
0.43 € | 1 | 4 Days | 6 | 10 | A2 | 10 | 5 | 6 | 24 | ||
0.43 € | 1 | 4 Days | 6 | 12 | A2 | 10 | 5 | 6 | 24 | ||
0.36 € | 1 | 4 Days | 6 | 16 | A2 | 10 | 5 | 6 | 24 | ||
0.36 € | 1 | 4 Days | 6 | 18 | A2 | 10 | 5 | 6 | 24 | ||
0.36 € | 1 | 4 Days | 6 | 20 | A2 | 10 | 5 | 6 | 24 | ||
0.38 € | 1 | 4 Days | 6 | 25 | A2 | 10 | 5 | 6 | 24 | ||
0.40 € | 1 | 4 Days | 6 | 30 | A2 | 10 | 5 | 6 | 24 | ||
0.45 € | 1 | 4 Days | 6 | 35 | A2 | 10 | 5 | 6 | 24 | ||
0.51 € | 1 | 4 Days | 6 | 40 | A2 | 10 | 5 | 6 | 24 | ||
0.56 € | 1 | 4 Days | 6 | 45 | A2 | 10 | 5 | 6 | 24 | ||
0.62 € | 1 | 4 Days | 6 | 50 | A2 | 10 | 5 | 6 | 24 | ||
0.69 € | 1 | 4 Days | 6 | 55 | A2 | 10 | 5 | 6 | 24 | ||
0.72 € | 1 | 4 Days | 6 | 60 | A2 | 10 | 5 | 6 | 24 | ||
0.61 € | 1 | 4 Days | 8 | 16 | A2 | 13 | 6 | 8 | 28 | ||
0.56 € | 1 | 4 Days | 8 | 18 | A2 | 13 | 6 | 8 | 28 | ||
0.56 € | 1 | 4 Days | 8 | 20 | A2 | 13 | 6 | 8 | 28 | ||
0.56 € | 1 | 4 Days | 8 | 25 | A2 | 13 | 6 | 8 | 28 | ||
0.56 € | 1 | 4 Days | 8 | 30 | A2 | 13 | 6 | 8 | 28 | ||
0.61 € | 1 | 4 Days | 8 | 35 | A2 | 13 | 6 | 8 | 28 | ||
0.66 € | 1 | 4 Days | 8 | 40 | A2 | 13 | 6 | 8 | 28 | ||
0.66 € | 1 | 4 Days | 8 | 45 | A2 | 13 | 6 | 8 | 28 | ||
0.69 € | 1 | 4 Days | 8 | 50 | A2 | 13 | 6 | 8 | 28 | ||
0.93 € | 1 | 4 Days | 8 | 60 | A2 | 13 | 6 | 8 | 28 | ||
1.04 € | 1 | 4 Days | 8 | 70 | A2 | 13 | 6 | 8 | 28 | ||
1.30 € | 1 | 4 Days | 8 | 80 | A2 | 13 | 6 | 8 | 28 | ||
0.93 € | 1 | 4 Days | 10 | 16 | A2 | 16 | 8 | 10 | 32 | ||
0.72 € | 1 | 4 Days | 10 | 18 | A2 | 16 | 8 | 10 | 32 | ||
0.72 € | 1 | 4 Days | 10 | 20 | A2 | 16 | 8 | 10 | 32 | ||
0.72 € | 1 | 4 Days | 10 | 25 | A2 | 16 | 8 | 10 | 32 | ||
0.72 € | 1 | 4 Days | 10 | 30 | A2 | 16 | 8 | 10 | 32 | ||
0.72 € | 1 | 4 Days | 10 | 35 | A2 | 16 | 8 | 10 | 32 | ||
0.78 € | 1 | 4 Days | 10 | 40 | A2 | 16 | 8 | 10 | 32 | ||
0.93 € | 1 | 4 Days | 10 | 45 | A2 | 16 | 8 | 10 | 32 | ||
0.94 € | 1 | 4 Days | 10 | 50 | A2 | 16 | 8 | 10 | 32 | ||
1.04 € | 1 | 4 Days | 10 | 60 | A2 | 16 | 8 | 10 | 32 | ||
1.18 € | 1 | 4 Days | 10 | 70 | A2 | 16 | 8 | 10 | 32 | ||
1.46 € | 1 | 4 Days | 10 | 80 | A2 | 16 | 8 | 10 | 32 | ||
1.67 € | 1 | 4 Days | 10 | 90 | A2 | 16 | 8 | 10 | 32 | ||
2.04 € | 1 | 4 Days | 10 | 100 | A2 | 16 | 8 | 10 | 32 | ||
1.04 € | 1 | 4 Days | 12 | 20 | A2 | 18 | 10 | 12 | 36 | ||
1.02 € | 1 | 4 Days | 12 | 25 | A2 | 18 | 10 | 12 | 36 | ||
1.02 € | 1 | 4 Days | 12 | 30 | A2 | 18 | 10 | 12 | 36 | ||
1.02 € | 1 | 4 Days | 12 | 35 | A2 | 18 | 10 | 12 | 36 | ||
1.04 € | 1 | 4 Days | 12 | 40 | A2 | 18 | 10 | 12 | 36 | ||
1.04 € | 1 | 4 Days | 12 | 45 | A2 | 18 | 10 | 12 | 36 | ||
1.04 € | 1 | 4 Days | 12 | 50 | A2 | 18 | 10 | 12 | 36 |
Loading...
Basic information
| Material | Stainless Steel | Grade | 70 | Surface finish body | bright |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
