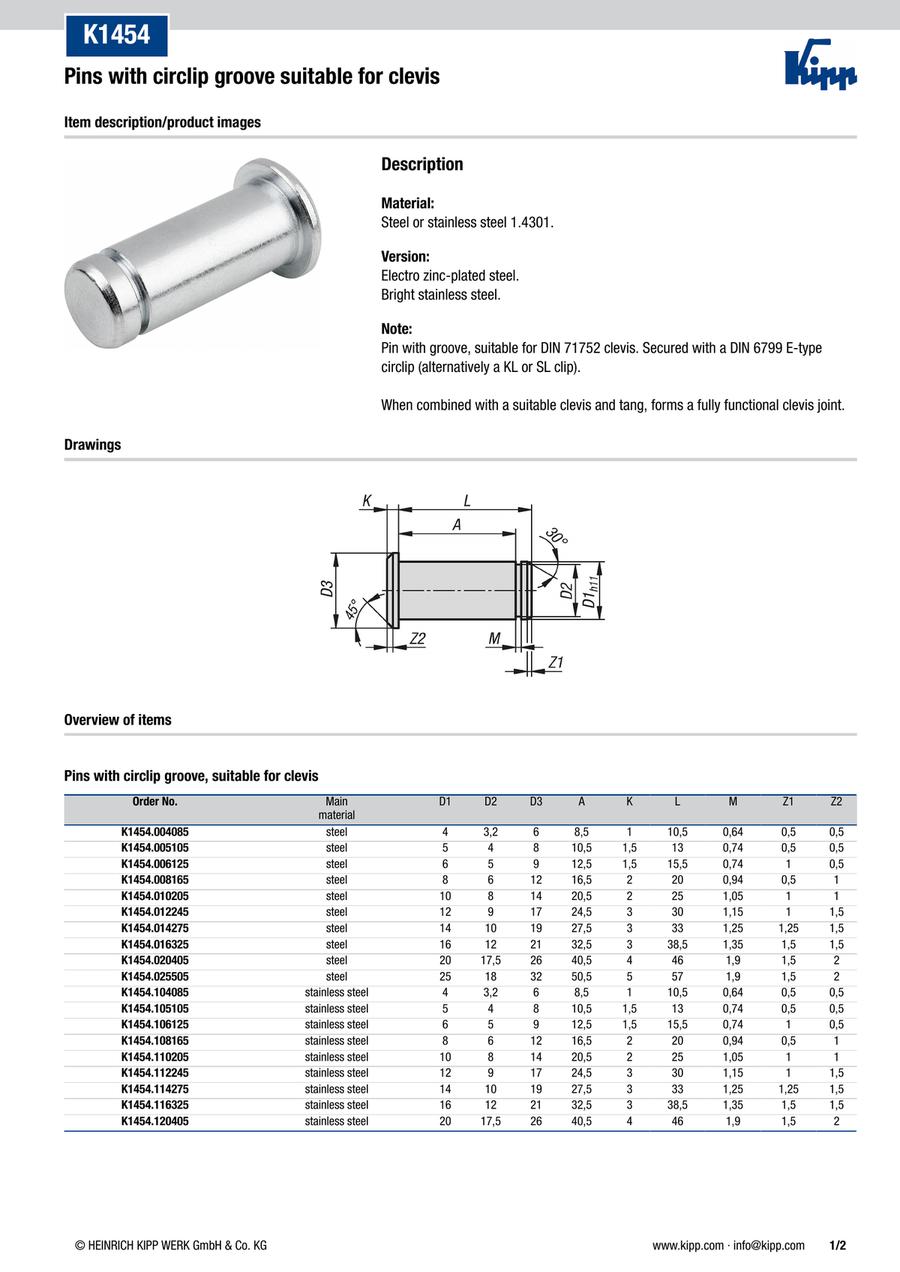

Pins with circlip groove suitable for clevis (K1454)
· Secured by DIN 6799 lock washers
· When combined with a suitable clevis, forms a fully functional clevis joint
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Material | A (mm) | D1=Pin diameter (mm) | D2 (mm) | D3 (mm) | K (mm) | L (mm) | M (mm) | Z1 (mm) | Z2 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.56 € | 1 | 4 Days | Steel | 8.5 | 4 | 3.2 | 6 | 1 | 10.5 | 0.64 | 0.5 | 0.5 | ||
0.64 € | 1 | 4 Days | Steel | 10.5 | 5 | 4 | 8 | 1.5 | 13 | 0.74 | 0.5 | 0.5 | ||
0.61 € | 1 | 4 Days | Steel | 12.5 | 6 | 5 | 9 | 1.5 | 15.5 | 0.74 | 1 | 0.5 | ||
0.95 € | 1 | 4 Days | Steel | 16.5 | 8 | 6 | 12 | 2 | 20 | 0.94 | 0.5 | 1 | ||
1.10 € | 1 | 4 Days | Steel | 20.5 | 10 | 8 | 14 | 2 | 25 | 1.05 | 1 | 1 | ||
1.21 € | 1 | 4 Days | Steel | 24.5 | 12 | 9 | 17 | 3 | 30 | 1.15 | 1 | 1.5 | ||
2.27 € | 1 | 4 Days | Steel | 27.5 | 14 | 10 | 19 | 3 | 33 | 1.25 | 1.25 | 1.5 | ||
1.32 € | 1 | 4 Days | Steel | 32.5 | 16 | 12 | 21 | 3 | 38.5 | 1.35 | 1.5 | 1.5 | ||
4.81 € | 1 | 4 Days | Steel | 40.5 | 20 | 17.5 | 26 | 4 | 46 | 1.9 | 1.5 | 2 | ||
8.21 € | 1 | 4 Days | Steel | 50.5 | 25 | 18 | 32 | 5 | 57 | 1.9 | 1.5 | 2 | ||
1.16 € | 1 | 4 Days | Stainless Steel | 8.5 | 4 | 3.2 | 6 | 1 | 10.5 | 0.64 | 0.5 | 0.5 | ||
0.97 € | 1 | 4 Days | Stainless Steel | 10.5 | 5 | 4 | 8 | 1.5 | 13 | 0.74 | 0.5 | 0.5 | ||
1.33 € | 1 | 4 Days | Stainless Steel | 12.5 | 6 | 5 | 9 | 1.5 | 15.5 | 0.74 | 1 | 0.5 | ||
1.53 € | 1 | 4 Days | Stainless Steel | 16.5 | 8 | 6 | 12 | 2 | 20 | 0.94 | 0.5 | 1 | ||
1.81 € | 1 | 4 Days | Stainless Steel | 20.5 | 10 | 8 | 14 | 2 | 25 | 1.05 | 1 | 1 | ||
6.34 € | 1 | 4 Days | Stainless Steel | 24.5 | 12 | 9 | 17 | 3 | 30 | 1.15 | 1 | 1.5 | ||
7.41 € | 1 | 4 Days | Stainless Steel | 27.5 | 14 | 10 | 19 | 3 | 33 | 1.25 | 1.25 | 1.5 | ||
8.74 € | 1 | 4 Days | Stainless Steel | 32.5 | 16 | 12 | 21 | 3 | 38.5 | 1.35 | 1.5 | 1.5 | ||
19.03 € | 1 | 4 Days | Stainless Steel | 40.5 | 20 | 17.5 | 26 | 4 | 46 | 1.9 | 1.5 | 2 |
Loading...
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
