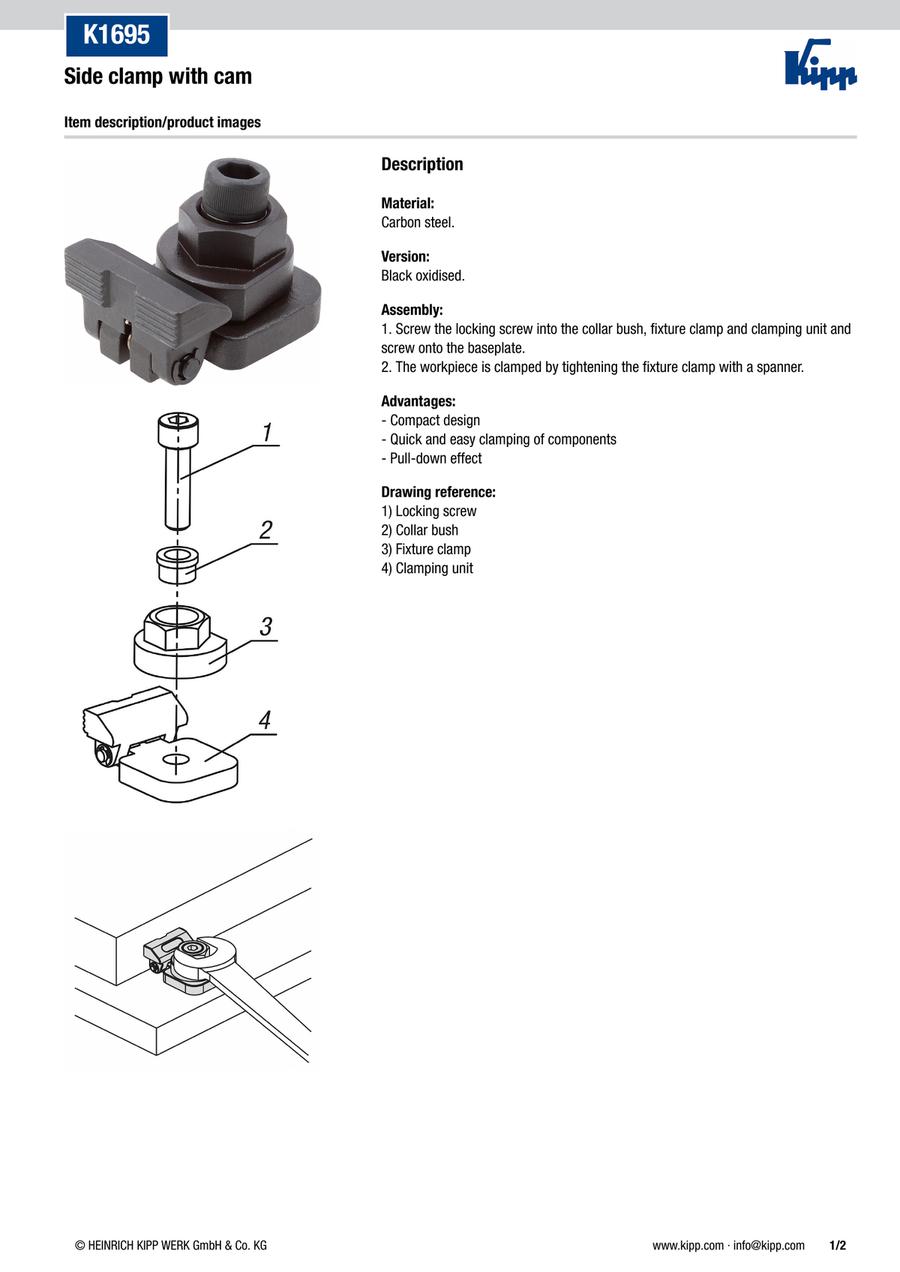

Side clamp with cam (K1695)
· Quick and easy clamping of components
· Robust construction
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K1695.081 |
| K1695.101 |
| K1695.121 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B=Width (mm) | B1 (mm) | D=thread (mm) | H=Height (mm) | H1 (mm) | H2 (mm) | H3 (mm) | H4 (mm) | L=Length (mm) | L1 (mm) | L2 (mm) | SW=key width (mm) | SW1 (mm) | Travel S (mm) | Clamping force (kN) | Tightening torque max. (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
107.85 € | 1 | 4 Days | 32 | 10 | M8 | 23 | 20 | 8 | 7 | 15 | 44 | 28.5 | 26.5 | 19 | 6 | 4 | 3.5 | 45 | ||
120.15 € | 1 | 4 Days | 40 | 12 | M10 | 29 | 25 | 10 | 9 | 16 | 54 | 35 | 33 | 24 | 8 | 5 | 5.5 | 55 | ||
134.69 € | 1 | 4 Days | 46 | 14 | M12 | 35 | 30 | 12 | 11 | 17 | 62 | 39.5 | 37.5 | 27 | 10 | 5.5 | 7 | 70 |
