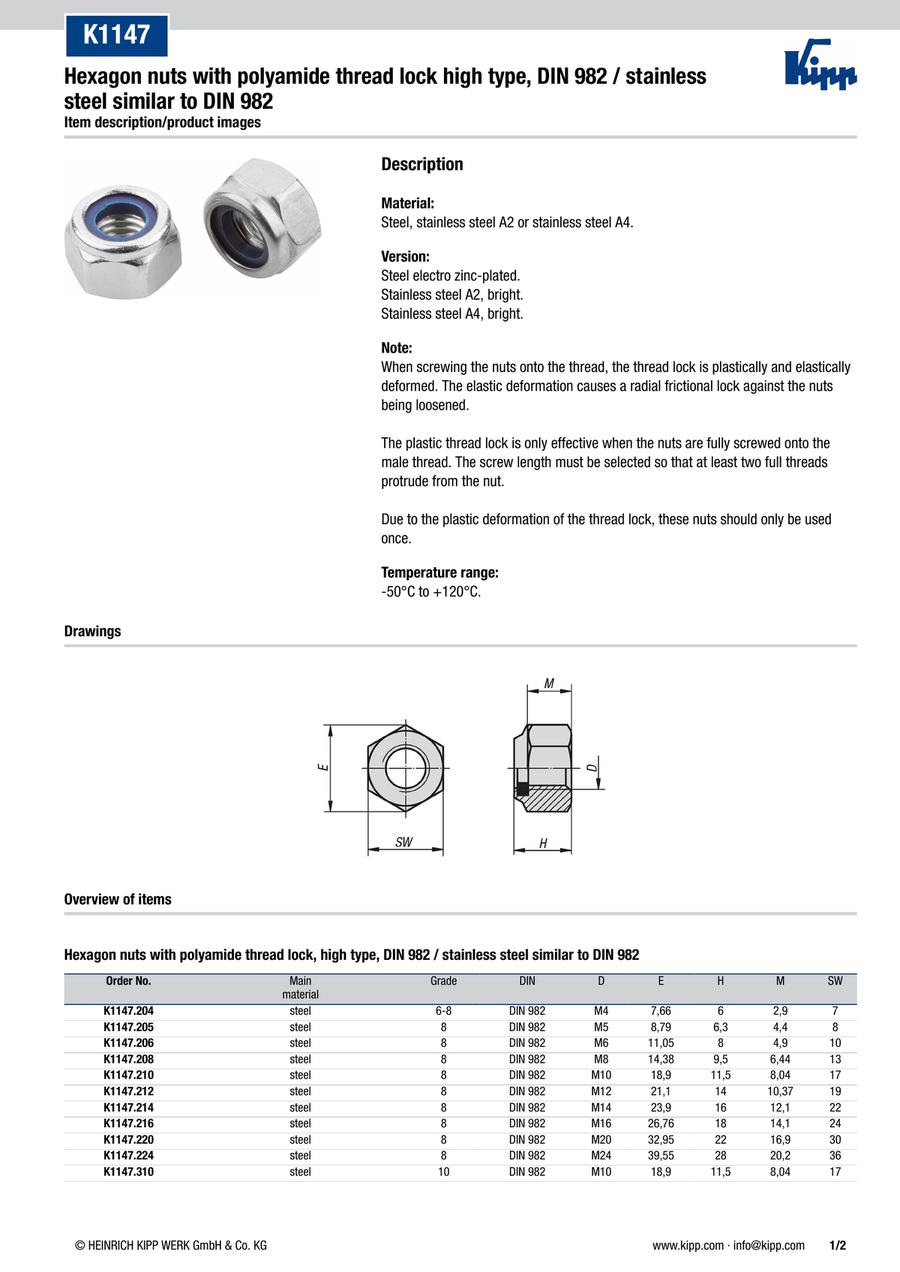

Hexagon nuts with polyamide thread lock high type, DIN 982 / stainless steel similar to DIN 982 (K1147)
· Temperature range: -50 °C to +120 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Screw Nominal (M) | Material | Steel code | Grade | Surface finish body | D=thread (mm) | E (mm) | H=Height (mm) | M (mm) | SW=key width (mm) | G=Thread | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.30 € | 1 | 4 Days | 5 | Stainless Steel | A2 | - | bright | M5 | 8.79 | 6.3 | 4.4 | 8 | - | ||
0.37 € | 1 | 4 Days | 6 | Stainless Steel | A2 | - | bright | M6 | 11.05 | 8 | 4.9 | 10 | M6 | ||
0.66 € | 1 | 4 Days | 8 | Stainless Steel | A2 | - | bright | M8 | 14.38 | 9.5 | 6.44 | 13 | M8 | ||
0.93 € | 1 | 4 Days | 10 | Stainless Steel | A2 | - | bright | M10 | 18.9 | 11.5 | 8.04 | 17 | M10 | ||
1.36 € | 1 | 4 Days | 12 | Stainless Steel | A2 | - | bright | M12 | 21.1 | 14 | 10.37 | 19 | M12 | ||
2.19 € | 1 | 4 Days | 16 | Stainless Steel | A2 | - | bright | M16 | 26.76 | 18 | 14.1 | 24 | M16 | ||
4.53 € | 1 | 4 Days | 20 | Stainless Steel | A2 | - | bright | M20 | 32.95 | 22 | 16.9 | 30 | M20 | ||
0.16 € | 1 | 4 Days | 4 | Steel | - | 6-8 | galvanised | M4 | 7.66 | 6 | 2.9 | 7 | M4 | ||
0.16 € | 1 | 4 Days | 5 | Steel | - | 8 | galvanised | M5 | 8.79 | 6.3 | 4.4 | 8 | - | ||
0.21 € | 1 | 4 Days | 6 | Steel | - | 8 | galvanised | M6 | 11.05 | 8 | 4.9 | 10 | M6 | ||
0.30 € | 1 | 4 Days | 8 | Steel | - | 8 | galvanised | M8 | 14.38 | 9.5 | 6.44 | 13 | M8 | ||
0.61 € | 1 | 4 Days | 10 | Steel | - | 8 | galvanised | M10 | 18.9 | 11.5 | 8.04 | 17 | M10 | ||
0.94 € | 1 | 4 Days | 12 | Steel | - | 8 | galvanised | M12 | 21.1 | 14 | 10.37 | 19 | M12 | ||
1.44 € | 1 | 4 Days | 14 | Steel | - | 8 | galvanised | M14 | 23.9 | 16 | 12.1 | 22 | M14 | ||
1.75 € | 1 | 4 Days | 16 | Steel | - | 8 | galvanised | M16 | 26.76 | 18 | 14.1 | 24 | M16 | ||
3.36 € | 1 | 4 Days | 20 | Steel | - | 8 | galvanised | M20 | 32.95 | 22 | 16.9 | 30 | M20 | ||
6.74 € | 1 | 4 Days | 24 | Steel | - | 8 | galvanised | M24 | 39.55 | 28 | 20.2 | 36 | M24 | ||
0.81 € | 1 | 4 Days | 10 | Steel | - | 10 | galvanised | M10 | 18.9 | 11.5 | 8.04 | 17 | M10 | ||
1.14 € | 1 | 4 Days | 12 | Steel | - | 10 | galvanised | M12 | 21.1 | 14 | 10.37 | 19 | M12 | ||
2.09 € | 1 | 4 Days | 16 | Steel | - | 10 | galvanised | M16 | 26.76 | 18 | 14.1 | 24 | M16 | ||
3.94 € | 1 | 4 Days | 20 | Steel | - | 10 | galvanised | M20 | 32.95 | 22 | 16.9 | 30 | M20 | ||
7.26 € | 1 | 4 Days | 24 | Steel | - | 10 | galvanised | M24 | 39.55 | 28 | 20.2 | 36 | M24 | ||
0.38 € | 1 | 4 Days | 5 | Stainless Steel | A4 | - | bright | M5 | 8.79 | 6.3 | 4.4 | 8 | - | ||
0.47 € | 1 | 4 Days | 6 | Stainless Steel | A4 | - | bright | M6 | 11.05 | 8 | 4.9 | 10 | - | ||
0.84 € | 1 | 4 Days | 8 | Stainless Steel | A4 | - | bright | M8 | 14.38 | 9.5 | 6.44 | 13 | - | ||
1.18 € | 1 | 4 Days | 10 | Stainless Steel | A4 | - | bright | M10 | 18.9 | 11.5 | 8.04 | 17 | - | ||
1.77 € | 1 | 4 Days | 12 | Stainless Steel | A4 | - | bright | M12 | 21.1 | 14 | 10.37 | 19 | - | ||
2.85 € | 1 | 4 Days | 16 | Stainless Steel | A4 | - | bright | M16 | 26.76 | 18 | 14.1 | 24 | - | ||
5.89 € | 1 | 4 Days | 20 | Stainless Steel | A4 | - | bright | M20 | 32.95 | 22 | 16.9 | 30 | - |
Loading...
Basic information
| Component material | Polyamide |
|---|
Configure
Basic Attributes
-
Screw Nominal (M)
-
Material
-
Steel code
-
Grade
- 6-8
- 8
- 10
-
Surface finish body
- bright
- galvanised
-
D=thread(mm)
-
E(mm)
-
H=Height(mm)
-
M(mm)
-
SW=key width(mm)
-
G=Thread
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
