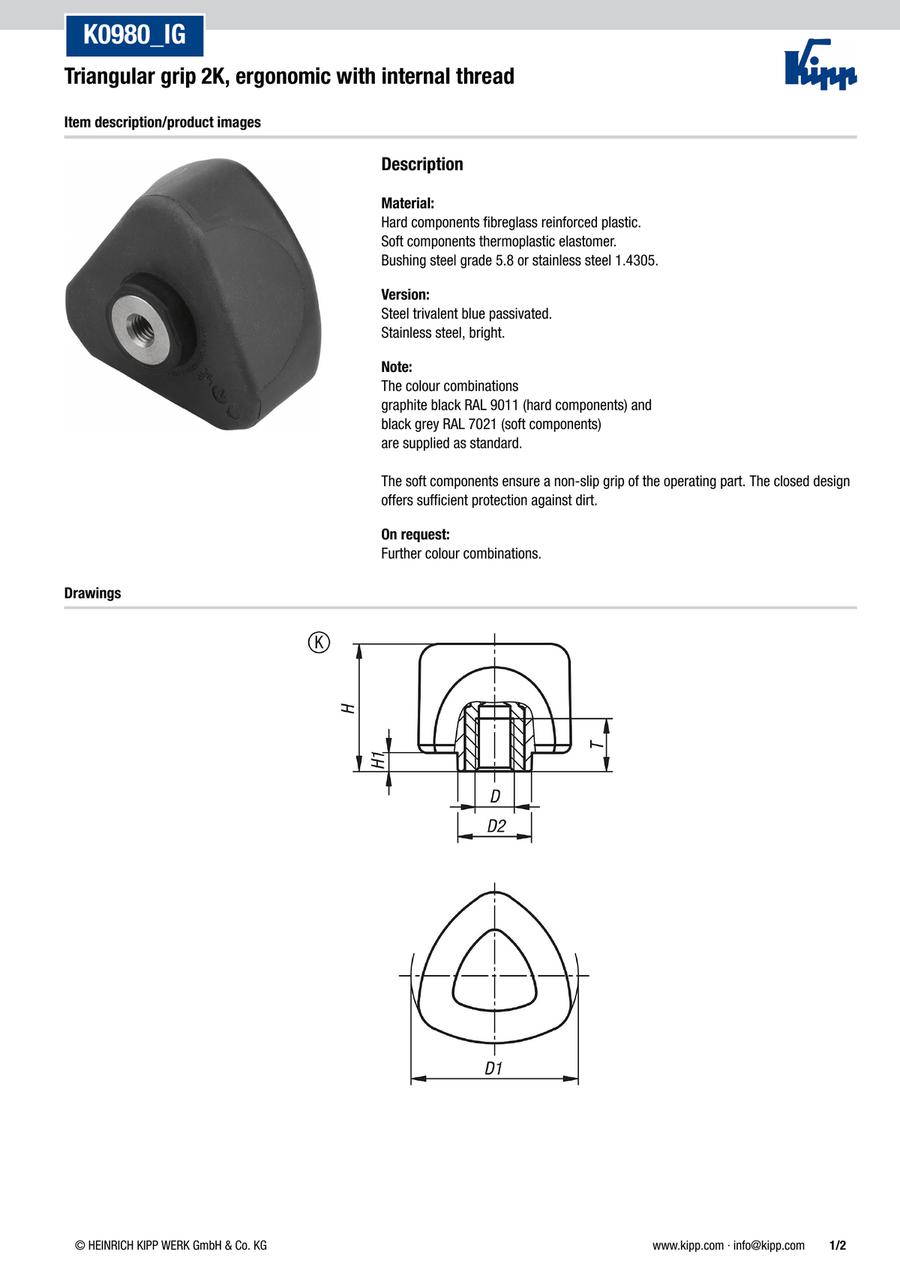

Triangular grip 2K ergonomic with internal thread (K0980)
· Application fields: machine, plant and fixture construction, toolmaking
· For manually adjusting assemblies, machines and aggregates
· SYMPA touch: optimum grip and hold due to high ergonomics
· Tactile haptics
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0980.05008 |
| K0980.05010 |
| K0980.06308 |
| K0980.06310 |
| K0980.5008 |
| K0980.5010 |
| K0980.6308 |
| K0980.6310 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Mounting Section Diameter d(mm) and/or Diameter | Main Body Outer Diameter D (φ) | Component material (mm) | H=Height (mm) | |
|---|---|---|---|---|---|---|---|---|
7.23 € | 1 | 4 Days | M8 | 53.8 | Stainless steel | 41 | ||
7.23 € | 1 | 4 Days | M10 | 53.8 | Stainless steel | 41 | ||
7.73 € | 1 | 4 Days | M8 | 67.7 | Stainless steel | 36 | ||
7.73 € | 1 | 4 Days | M10 | 67.7 | Stainless steel | 36 | ||
6.44 € | 1 | 4 Days | M8 | 53.8 | Steel | 41 | ||
6.44 € | 1 | 4 Days | M10 | 53.8 | Steel | 41 | ||
6.96 € | 1 | 4 Days | M8 | 67.7 | Steel | 36 | ||
6.96 € | 1 | 4 Days | M10 | 67.7 | Steel | 36 |
Loading...
Basic information
| Main Body Material | Plastic | Main colour(mm) | black grey RAL 7021 | Form(mm) | K |
|---|---|---|---|---|---|
| D2(mm) | 23.9 | H1(Nm) | 6 | T=thread depth(mm) | 17 |
Configure
Basic Attributes
-
Mounting Section Diameter d(mm) and/or Diameter
-
Main Body Outer Diameter D(φ)
-
Component material(mm)
-
H=Height(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
