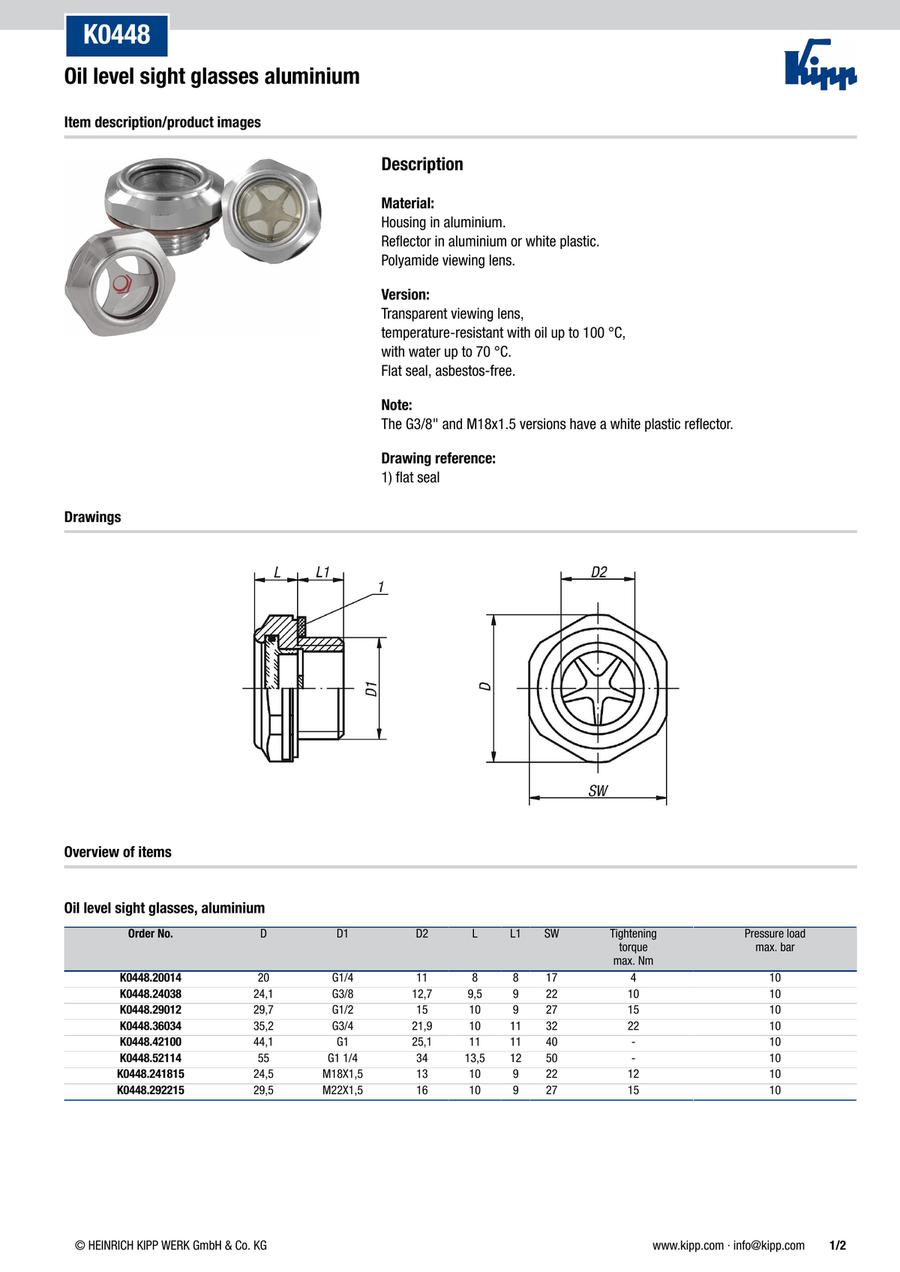

Oil level sight glasses aluminium (K0448)
· Temperature resistant to 100°C
· Transparent inspection glass
· Ageing resistant
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0448.20014 |
| K0448.24038 |
| K0448.241815 |
| K0448.29012 |
| K0448.292215 |
| K0448.36034 |
| K0448.42100 |
| K0448.52114 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | D=outside diameter (mm) | D1=Thread | D2 (mm) | L (mm) | L1 (mm) | SW (mm) | Tightening torque max. (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
1.71 € | 1 | 4 Days | 20 | G1/4 | 11 | 8 | 8 | 17 | 9 | ||
2.48 € | 1 | 4 Days | 24.1 | G3/8 | 12.7 | 9.5 | 9 | 22 | 12 | ||
3.08 € | 1 | 4 Days | 24.5 | M18X1,5 | 13 | 10 | 9 | 22 | 12 | ||
3.34 € | 1 | 4 Days | 29.7 | G1/2 | 15 | 10 | 9 | 27 | 18 | ||
3.74 € | 1 | 4 Days | 29.5 | M22X1,5 | 16 | 10 | 9 | 27 | 18 | ||
4.36 € | 1 | 4 Days | 35.2 | G3/4 | 21.9 | 10 | 11 | 32 | 24 | ||
9.23 € | 1 | 4 Days | 44.1 | G1 | 25.1 | 11 | 11 | 40 | - | ||
9.63 € | 1 | 4 Days | 55 | G1 1/4 | 34 | 13.5 | 12 | 50 | - |
Loading...
Basic information
| Main material | Aluminium | Pressure load max.(bar) | 10 |
|---|
Configure
Basic Attributes
-
D=outside diameter(mm)
-
D1=Thread
-
D2(mm)
-
L(mm)
-
L1(mm)
-
SW(mm)
-
Tightening torque max.(Nm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
