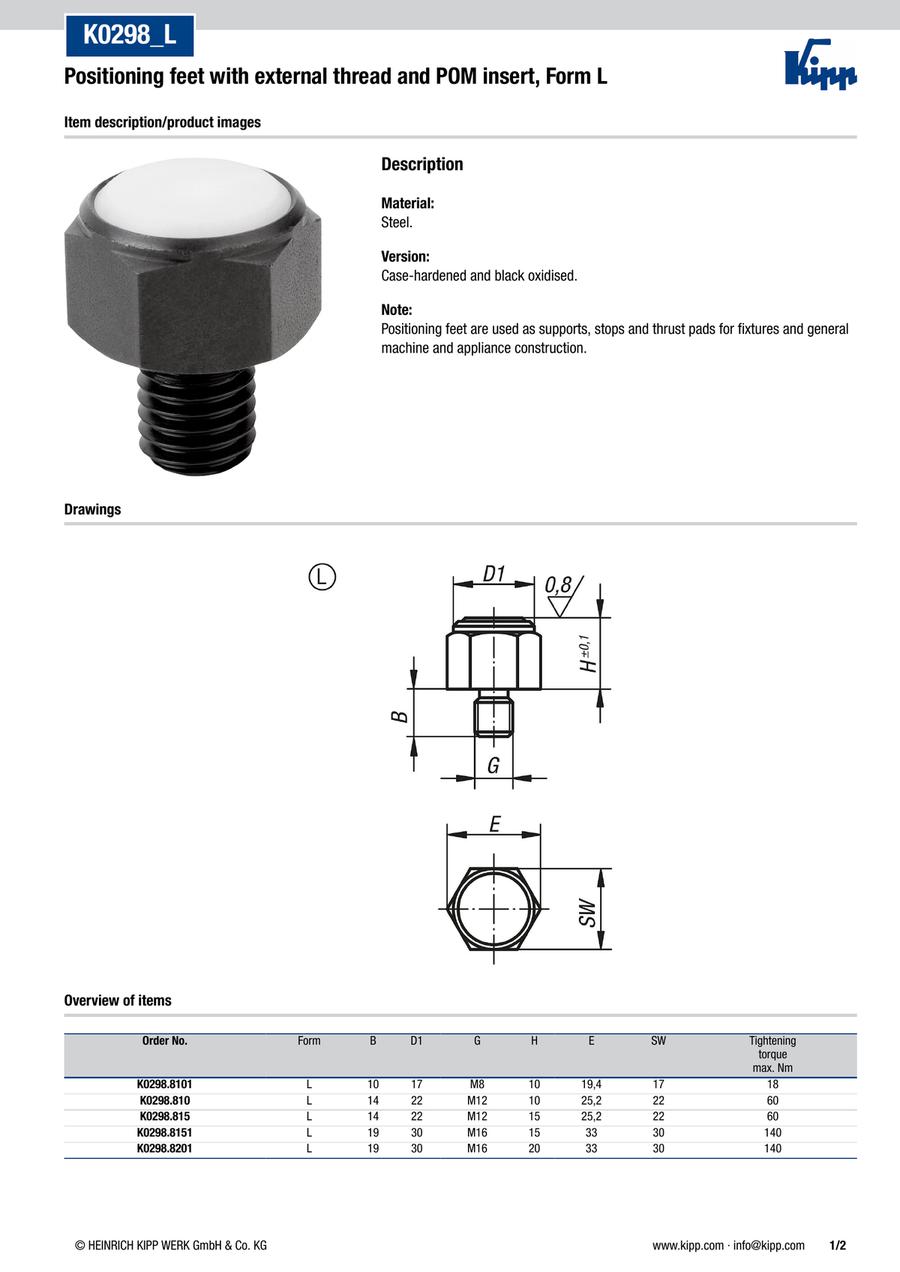

Positioning feet with external thread and POM insert, Form L (K0298)
· Application sectors: machine, plant and instrument construction
· High stability
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0298.810 |
| K0298.8101 |
| K0298.815 |
| K0298.8151 |
| K0298.8201 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | B=Thread length (mm) | D1 (mm) | E (mm) | G=Thread | H=Height (mm) | L2 (mm) | SW=key width (mm) | Tightening torque max. (Nm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
23.52 € | 1 | 4 Days | 14 | 22 | 25.2 | M12 | 10 | 24 | 22 | 60 | ||
20.64 € | 1 | 4 Days | 10 | 17 | 19.4 | M8 | 10 | 20 | 17 | 18 | ||
23.78 € | 1 | 4 Days | 14 | 22 | 25.2 | M12 | 15 | 29 | 22 | 60 | ||
41.43 € | 1 | 4 Days | 19 | 30 | 33 | M16 | 15 | 34 | 30 | 140 | ||
41.86 € | 1 | 4 Days | 19 | 30 | 33 | M16 | 20 | 39 | 30 | 140 |
Loading...
Basic information
| Main material | Steel | Surface finish body | case-hardened and black oxidised | Material (mount surface / support surface) | Pom |
|---|---|---|---|---|---|
| Form | L |
Configure
Basic Attributes
-
B=Thread length(mm)
-
D1(mm)
-
E(mm)
-
G=Thread
-
H=Height(mm)
-
L2(mm)
-
SW=key width(mm)
-
Tightening torque max.(Nm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
