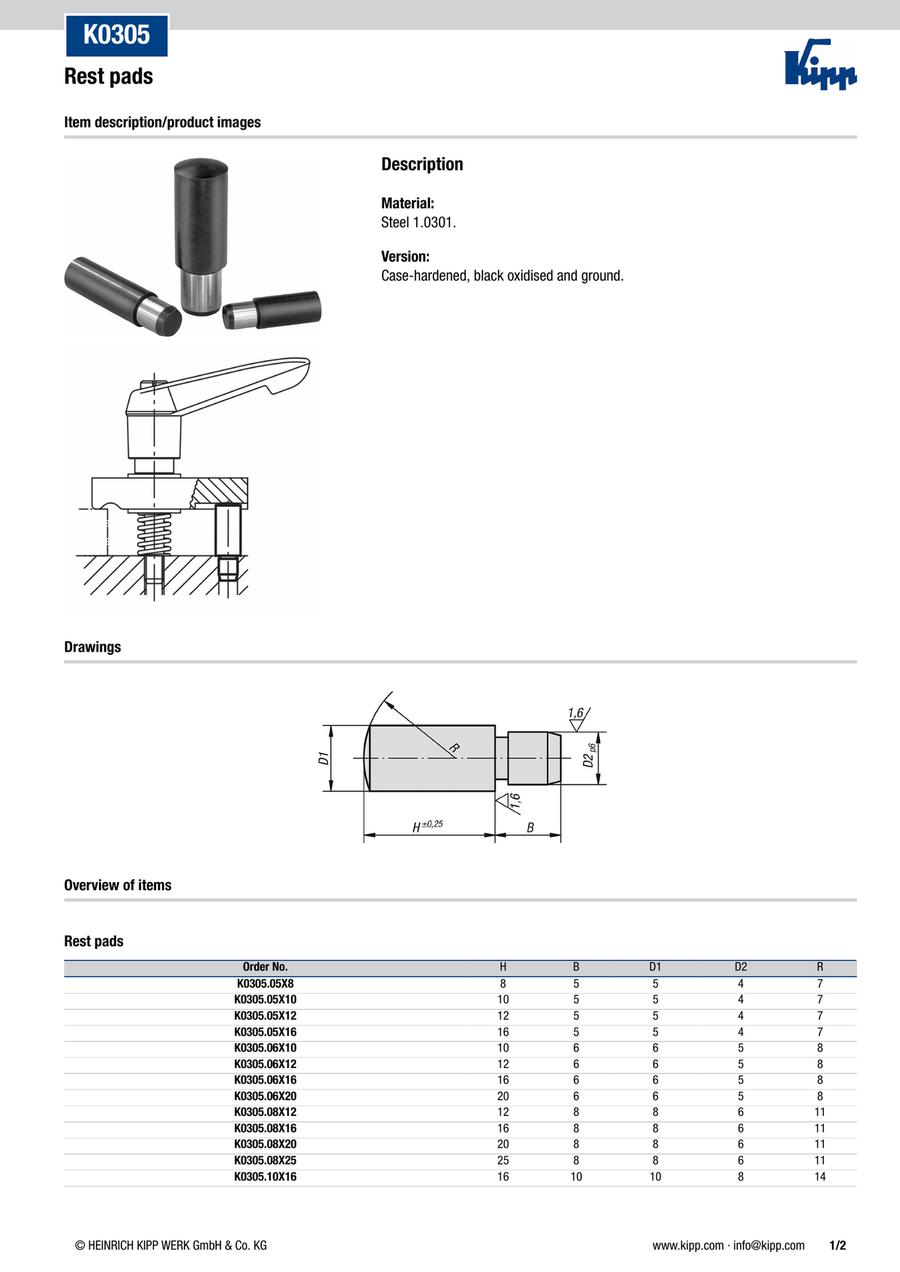

Rest pads (K0305)
· Application sectors: machine and fixture construction, toolmaking
· For supporting workpieces and fixtures
· Case hardened
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Tip O.D. (mm) | B (mm) | D2=Pin diameter (mm) | H=Height (mm) | R (mm) | |
|---|---|---|---|---|---|---|---|---|---|
2.99 € | 1 | 4 Days | 5 | 5 | 4 | 8 | 7 | ||
4.28 € | 1 | 4 Days | 5 | 5 | 4 | 10 | 7 | ||
4.69 € | 1 | 4 Days | 5 | 5 | 4 | 12 | 7 | ||
4.90 € | 1 | 4 Days | 5 | 5 | 4 | 16 | 7 | ||
3.42 € | 1 | 4 Days | 6 | 6 | 5 | 10 | 8 | ||
3.69 € | 1 | 4 Days | 6 | 6 | 5 | 12 | 8 | ||
3.80 € | 1 | 4 Days | 6 | 6 | 5 | 16 | 8 | ||
5.50 € | 1 | 4 Days | 6 | 6 | 5 | 20 | 8 | ||
4.16 € | 1 | 4 Days | 8 | 8 | 6 | 12 | 11 | ||
4.30 € | 1 | 4 Days | 8 | 8 | 6 | 16 | 11 | ||
4.34 € | 1 | 4 Days | 8 | 8 | 6 | 20 | 11 | ||
4.59 € | 1 | 4 Days | 8 | 8 | 6 | 25 | 11 | ||
4.44 € | 1 | 4 Days | 10 | 10 | 8 | 16 | 14 | ||
4.59 € | 1 | 4 Days | 10 | 10 | 8 | 20 | 14 | ||
4.83 € | 1 | 4 Days | 10 | 10 | 8 | 25 | 14 | ||
4.97 € | 1 | 4 Days | 10 | 10 | 8 | 32 | 14 | ||
5.13 € | 1 | 4 Days | 12 | 12 | 10 | 20 | 16 | ||
5.24 € | 1 | 4 Days | 12 | 12 | 10 | 25 | 16 | ||
5.72 € | 1 | 4 Days | 12 | 12 | 10 | 32 | 16 | ||
5.87 € | 1 | 4 Days | 12 | 12 | 10 | 40 | 16 | ||
6.18 € | 1 | 4 Days | 14 | 14 | 12 | 20 | 20 | ||
6.23 € | 1 | 4 Days | 14 | 14 | 12 | 25 | 20 | ||
6.54 € | 1 | 4 Days | 14 | 14 | 12 | 32 | 20 | ||
7.02 € | 1 | 4 Days | 14 | 14 | 12 | 40 | 20 | ||
7.04 € | 1 | 4 Days | 16 | 16 | 14 | 25 | 25 | ||
7.37 € | 1 | 4 Days | 16 | 16 | 14 | 32 | 25 | ||
7.60 € | 1 | 4 Days | 16 | 16 | 14 | 40 | 25 | ||
7.69 € | 1 | 4 Days | 16 | 16 | 14 | 50 | 25 | ||
8.43 € | 1 | 4 Days | 20 | 20 | 16 | 25 | 28 | ||
8.98 € | 1 | 4 Days | 20 | 20 | 16 | 32 | 28 | ||
9.23 € | 1 | 4 Days | 20 | 20 | 16 | 40 | 28 | ||
9.89 € | 1 | 4 Days | 20 | 20 | 16 | 50 | 28 |
Loading...
Basic information
| Main material | Mild steel | Surface finish body | black oxidised, hardened and ground | Material (mount surface / support surface) | Steel |
|---|
Configure
Basic Attributes
-
Tip O.D.(mm)
-
B(mm)
-
D2=Pin diameter(mm)
-
H=Height(mm)
-
R(mm)
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
