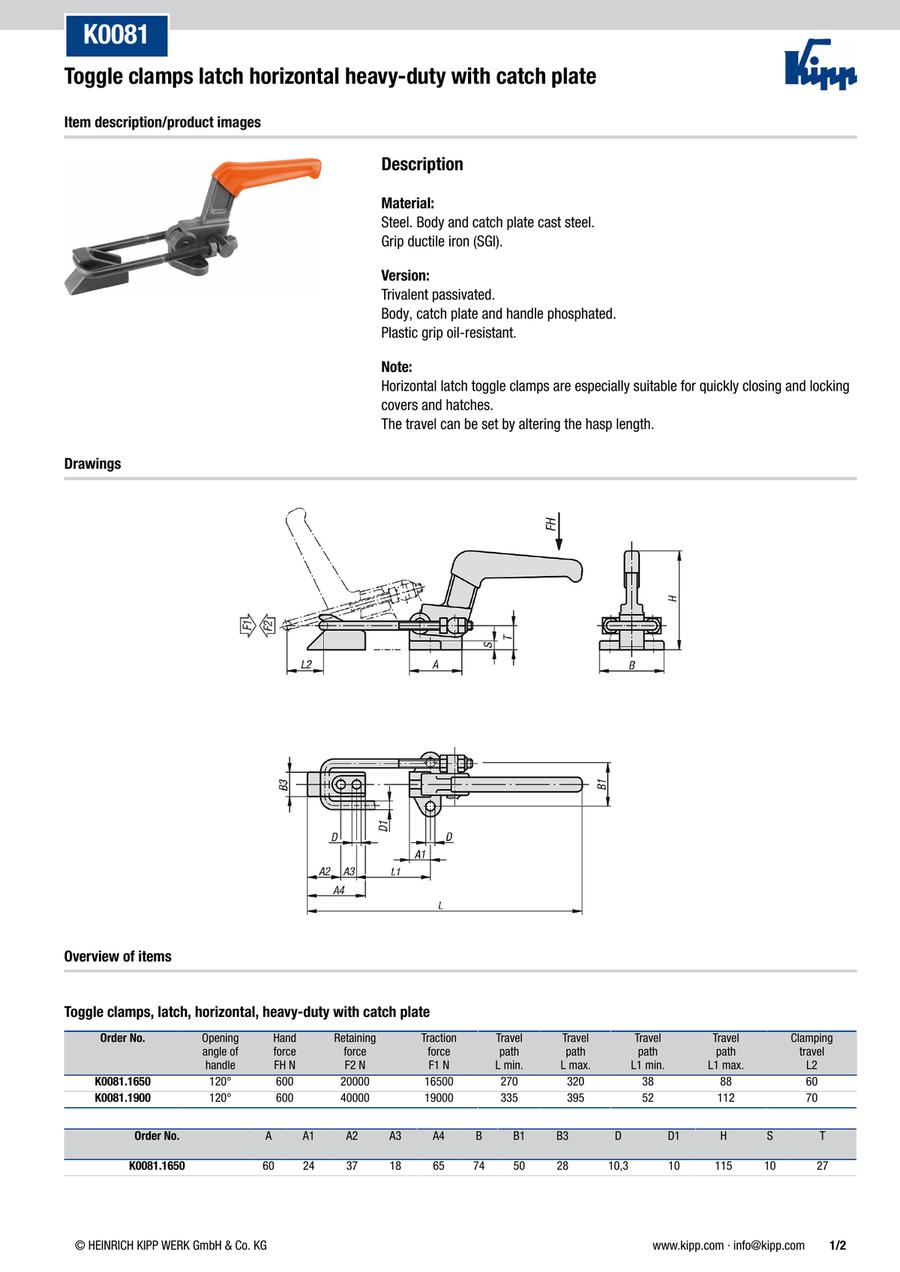

Toggle clamps latch horizontal heavy-duty with catch plate (K0081)

Toggle clamps latch horizontal heavy-duty with catch plate (K0081)

KIPP

KIPP

· Toggle clamps and power clamps are used in assembly and workholding fixtures

· Application sectors: machine construction, welding technology, metal processing, woodworking, plastics industry

· Quick locking and securing of lids and hatches

· Travel range of hasp can be adjusted

· Self-locking prevents the clamping arm opening autonomously.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
K0081.1650
K0081.1900
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Traction force F1
(N) 		Retaining force F2
(N) 		Travel path L max.
(mm) 		Travel path L min.
(mm) 		Travel path L1 max.
(mm) 		Travel path L1 min.
(mm) 		Clamping travel L2
(mm) 		A
(mm) 		A1
(mm) 		A2
(mm) 		A3
(mm) 		A4
(mm) 		B
(mm) 		B1
(mm) 		B3
(mm) 		D
(mm) 		D1
(mm) 		H
(mm) 		S
(mm) 		T
(mm)

138.31 €

1 4 Days 1650020000320270883860602437186574502810.3101151027

150.49 €

1 4 Days 19000400003953351125270823644227884563412.4121321233.5

Loading...

  1. 1

Basic information

Tightening Force(N) 600 Body Material Steel Surface finish body phosphated
Component material Plastic Surface finish component oil-resistant Component colour orange
Version 2 with fixed jaw Opening angle of handle 120°
