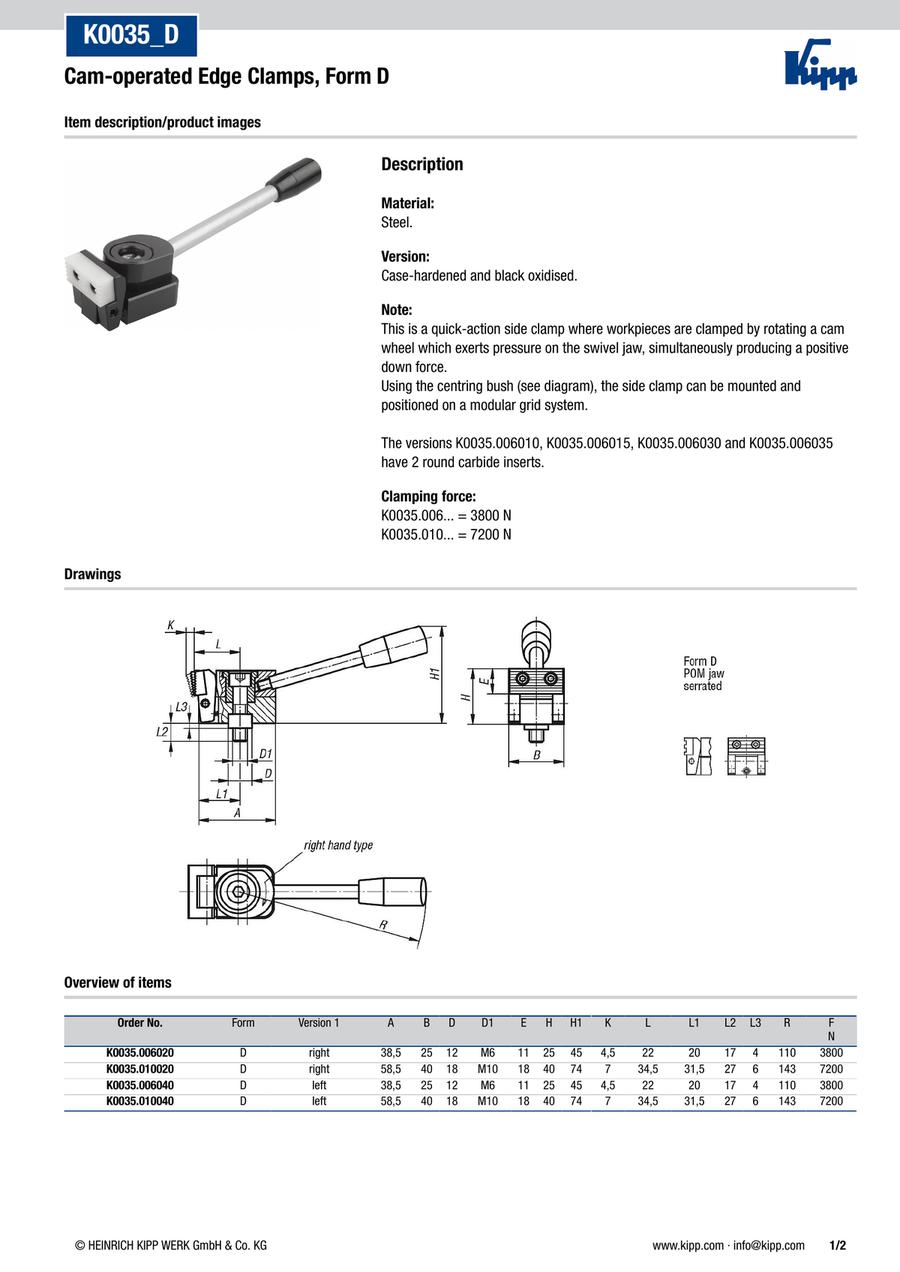

Cam-operated Edge Clamps Form D (K0035)
· With positive down force
· Flexible application
· Clamping jaw case-hardened
· Manual actuation
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| K0035.006020 |
| K0035.006040 |
| K0035.010020 |
| K0035.010040 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Version 1 | B=Width (mm) | D1 (mm) | H=Height (mm) | H1 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | A=Length (mm) | D (mm) | E (mm) | K (mm) | L (mm) | R (mm) | F=Retaining force (N) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
119.83 € | 1 | 4 Days | right | 25 | M6 | 25 | 45 | 20 | 17 | 4 | 38.5 | 12 | 11 | 4.5 | 22 | 110 | 3800 | ||
122.80 € | 1 | 4 Days | left | 25 | M6 | 25 | 45 | 20 | 17 | 4 | 38.5 | 12 | 11 | 4.5 | 22 | 110 | 3800 | ||
173.88 € | 1 | 4 Days | right | 40 | M10 | 40 | 74 | 31.5 | 27 | 6 | 58.5 | 18 | 18 | 7 | 34.5 | 143 | 7200 | ||
173.88 € | 1 | 4 Days | left | 40 | M10 | 40 | 74 | 31.5 | 27 | 6 | 58.5 | 18 | 18 | 7 | 34.5 | 143 | 7200 |
Loading...
Basic information
| Main material | steel | Surface finish body | case-hardened and black oxidised | Form | D |
|---|
Configure
Basic Attributes
-
Version 1
- left
- right
-
B=Width(mm)
-
D1(mm)
-
H=Height(mm)
-
H1(mm)
-
L1(mm)
-
L2(mm)
-
L3(mm)
- 4
- 6
-
A=Length(mm)
- 38.5
- 58.5
-
D(mm)
- 12
- 18
-
E(mm)
- 11
- 18
-
K(mm)
- 4.5
- 7
-
L(mm)
-
R(mm)
- 110
- 143
-
F=Retaining force(N)
- 3800
- 7200
-
Type
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
