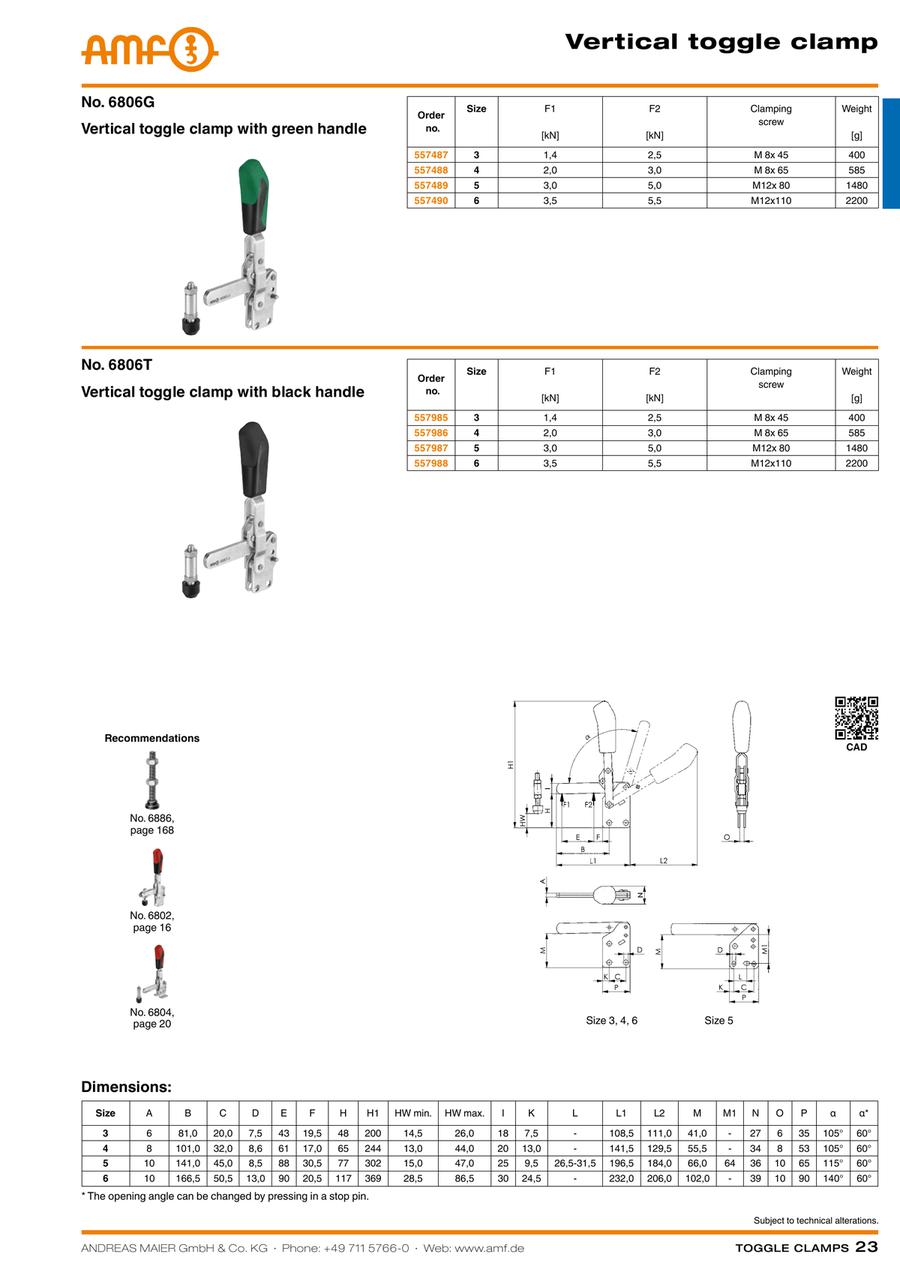

Vertical Toggle Clamp with Black Handle, 6806T
- Volume Discount
with solid arm and vertical base.
Galvanized and passivated.
Stainless steel rivets, which run in hardened bushes. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Safety clamping piece with finger protection.
Complete with tempered, galvanized clamping screw no. 6885 and sleeve to weld on.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 557985 |
| 557986 |
| 557987 |
| 557988 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | A | B | C | E | L | F1 (kN) | F2 (kN) | Size | D | Clamping screw | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
44.44 € | 1 | Available | 6 Days | 6 | 81,0 | 20,0 | 43 | - | 1,4 | 2,5 | 3 | 7,5 | M 8x 45 | 400 | |
58.02 € | 1 | Available | 6 Days | 8 | 101,0 | 32,0 | 61 | - | 2,0 | 3,0 | 4 | 8,6 | M 8x 65 | 585 | |
91.96 € | 1 | Available | 6 Days | 10 | 141,0 | 45,0 | 88 | 26,5-31,5 | 3,0 | 5,0 | 5 | 8,5 | M12x 80 | 1480 | |
118.77 € | 1 | Available | 6 Days | 10 | 166,5 | 50,5 | 90 | - | 3,5 | 5,5 | 6 | 13,0 | M12x110 | 2200 |
Loading...
Configure
Basic Attributes
-
A
- 6
- 8
- 10
-
B
-
C
-
E
-
L
- 26,5-31,5
- -
-
F1(kN)
-
F2(kN)
- 2,5
- 3,0
- 5,0
- 5,5
-
Size
- 3
- 4
- 5
- 6
-
D
- 7,5
- 8,5
- 8,6
- 13,0
-
Clamping screw
-
Filter by CAD data type
- 2D
- 3D
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
