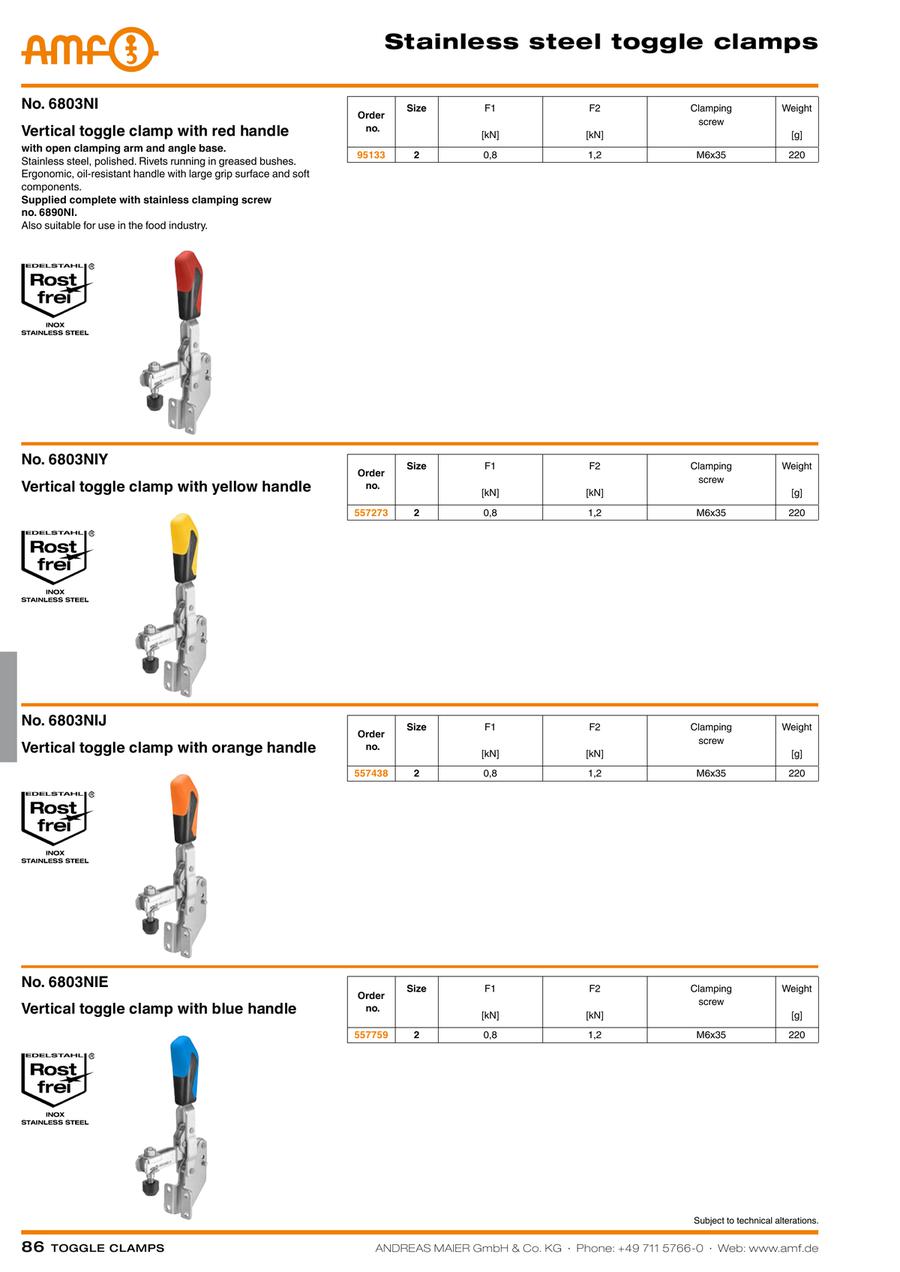

Vertical Toggle Clamp with Blue Handle, 6803NIE
- Volume Discount
Vertical toggle clamp with blue handle
with open clamping arm and angle base.
Stainless steel, polished. Rivets running in greased bushes.
Ergonomic, oil-resistant handle with large grip surface and soft components.
Supplied complete with stainless clamping screw no. 6890NI.
Also suitable for use in the food industry.
with open clamping arm and angle base.
Stainless steel, polished. Rivets running in greased bushes.
Ergonomic, oil-resistant handle with large grip surface and soft components.
Supplied complete with stainless clamping screw no. 6890NI.
Also suitable for use in the food industry.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
557759
Basic information
| A | 6 | B | 41 | C | 20 |
|---|---|---|---|---|---|
| E | 25 | F1(kN) | 0,8 | F2(kN) | 1,2 |
| Size | 2 | D | 6,1 | Clamping screw | M6x35 |
| Weight(g) | 220 |
This page is Vertical Toggle Clamp with Blue Handle, 6803NIE, part number 557759.
You can find the detail information about specifications and dimensions on part number 557759.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
