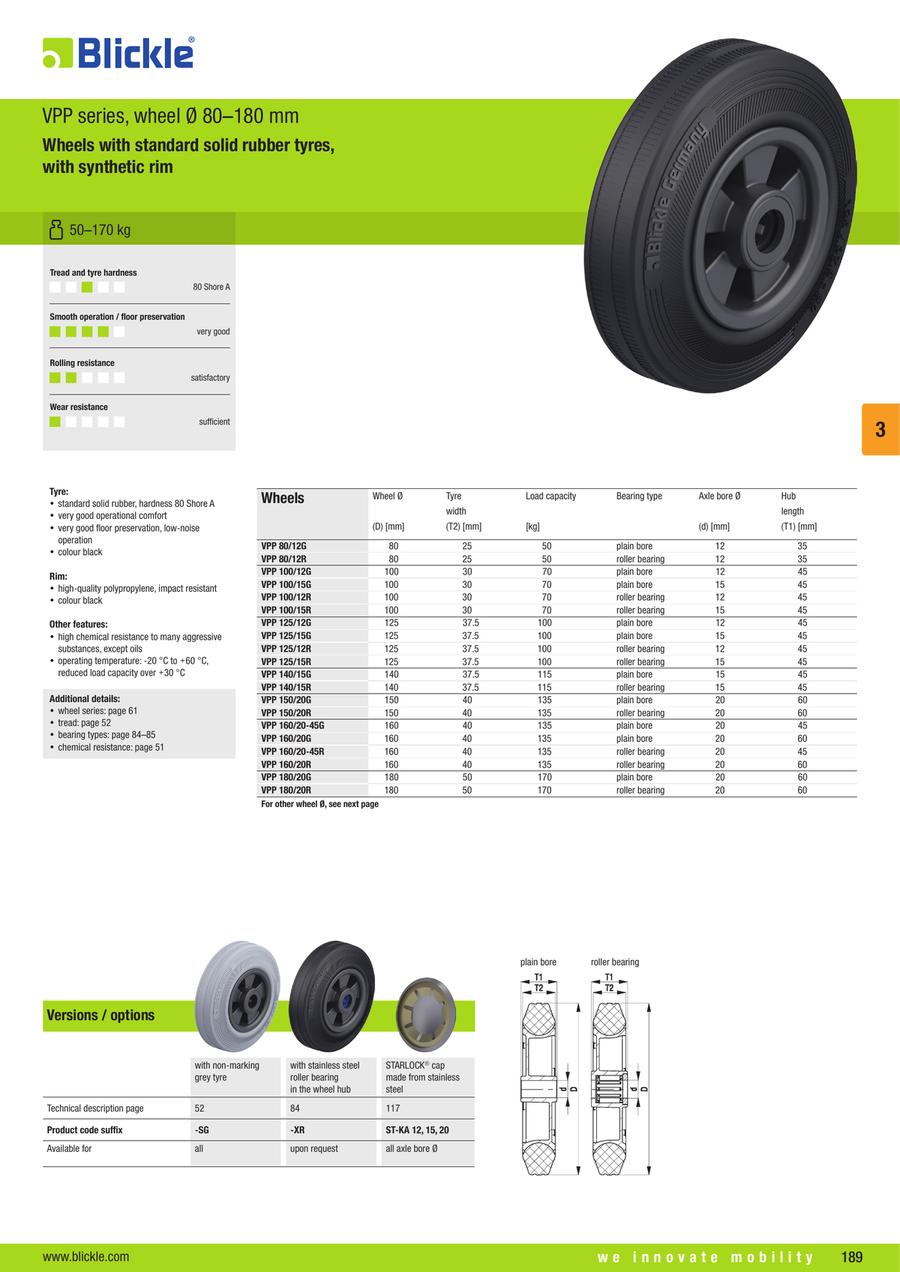

Wheel, VPP Series
Tyre:
- standard solid rubber, hardness 80 Shore A
- very good operational comfort
- very good floor preservation, low-noise operation
- colour black
- high-quality polypropylene, impact resistant
- colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel O.D. (mm) | Wheel Width (mm) | Hole Diameter (mm) | Hub Width (mm) | Max. Load / Allowable Load (daN) | Max. Load / Allowable Load (kg) | Bearing type | Weight (g) | Tread color | Non-staining | Rustproof | Non-marking | Min. temperature resistance (° C) | Load capacity at 4km/h (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.20 € | 1 | 5 Days | 80 | 25 | 12 | 35 | 50 | 50 | plain bore | 95 | black | no | yes | no | -20 | 50 | ||
5.93 € | 1 | 5 Days | 80 | 25 | 12 | 35 | 50 | 50 | plain bore | 106 | grey | yes | yes | yes | -20 | 50 | ||
6.63 € | 1 | 5 Days | 80 | 25 | 12 | 35 | 50 | 50 | roller bearing | 118 | black | no | no | no | -20 | 50 | ||
8.35 € | 1 | 5 Days | 80 | 25 | 12 | 35 | 50 | 50 | roller bearing | 126 | grey | yes | no | yes | -20 | 50 | ||
5.76 € | 1 | 5 Days | 100 | 30 | 12 | 45 | 70 | 70 | plain bore | 185 | black | no | yes | no | -20 | 70 | ||
8.81 € | 1 | 5 Days | 100 | 30 | 12 | 45 | 70 | 70 | plain bore | 218 | grey | yes | yes | yes | -20 | 70 | ||
9.17 € | 1 | 5 Days | 100 | 30 | 12 | 45 | 70 | 70 | roller bearing | 220 | black | no | no | no | -20 | 70 | ||
12.23 € | 1 | 5 Days | 100 | 30 | 12 | 45 | 70 | 70 | roller bearing | 240 | grey | yes | no | yes | -20 | 70 | ||
5.76 € | 1 | 5 Days | 100 | 30 | 15 | 45 | 70 | 70 | plain bore | 183 | black | no | yes | no | -20 | 70 | ||
8.81 € | 1 | 5 Days | 100 | 30 | 15 | 45 | 70 | 70 | plain bore | 216 | grey | yes | yes | yes | -20 | 70 | ||
9.17 € | 1 | 5 Days | 100 | 30 | 15 | 45 | 70 | 70 | roller bearing | 212 | black | no | no | no | -20 | 70 | ||
12.23 € | 1 | 5 Days | 100 | 30 | 15 | 45 | 70 | 70 | roller bearing | 228 | grey | yes | no | yes | -20 | 70 | ||
8.15 € | 1 | 5 Days | 125 | 38 | 12 | 45 | 100 | 100 | plain bore | 359 | black | no | yes | no | -20 | 100 | ||
14.33 € | 1 | 5 Days | 125 | 38 | 12 | 45 | 100 | 100 | plain bore | 438 | grey | yes | yes | yes | -20 | 100 | ||
9.88 € | 1 | 5 Days | 125 | 38 | 12 | 45 | 100 | 100 | roller bearing | 395 | black | no | no | no | -20 | 100 | ||
16.06 € | 1 | 5 Days | 125 | 38 | 12 | 45 | 100 | 100 | roller bearing | 462 | grey | yes | no | yes | -20 | 100 | ||
8.15 € | 1 | 5 Days | 125 | 38 | 15 | 45 | 100 | 100 | plain bore | 358 | black | no | yes | no | -20 | 100 | ||
14.33 € | 1 | 5 Days | 125 | 38 | 15 | 45 | 100 | 100 | plain bore | 436 | grey | yes | yes | yes | -20 | 100 | ||
9.88 € | 1 | 5 Days | 125 | 38 | 15 | 45 | 100 | 100 | roller bearing | 394 | black | no | no | no | -20 | 100 | ||
16.06 € | 1 | 5 Days | 125 | 38 | 15 | 45 | 100 | 100 | roller bearing | 448 | grey | yes | no | yes | -20 | 100 | ||
9.88 € | 1 | 5 Days | 140 | 38 | 15 | 45 | 115 | 115 | plain bore | 476 | black | no | yes | no | -20 | 115 | ||
19.83 € | 1 | 5 Days | 140 | 38 | 15 | 45 | 115 | 115 | plain bore | 601 | grey | yes | yes | yes | -20 | 115 | ||
12.00 € | 1 | 5 Days | 140 | 38 | 15 | 45 | 115 | 115 | roller bearing | 510 | black | no | no | no | -20 | 115 | ||
21.95 € | 1 | 5 Days | 140 | 38 | 15 | 45 | 115 | 115 | roller bearing | 629 | grey | yes | no | yes | -20 | 115 | ||
13.00 € | 1 | 5 Days | 150 | 40 | 20 | 60 | 135 | 135 | plain bore | 520 | black | no | yes | no | -20 | 135 | ||
23.75 € | 1 | 5 Days | 150 | 40 | 20 | 60 | 135 | 135 | plain bore | 640 | grey | yes | yes | yes | -20 | 135 | ||
15.45 € | 1 | 5 Days | 150 | 40 | 20 | 60 | 135 | 135 | roller bearing | 611 | black | no | no | no | -20 | 135 | ||
26.18 € | 1 | 5 Days | 150 | 40 | 20 | 60 | 135 | 135 | roller bearing | 741 | grey | yes | no | yes | -20 | 135 | ||
12.60 € | 1 | 5 Days | 160 | 40 | 20 | 45 | 135 | 135 | plain bore | 643 | black | no | yes | no | -20 | 135 | ||
24.12 € | 1 | 5 Days | 160 | 40 | 20 | 45 | 135 | 135 | plain bore | 731 | grey | yes | yes | yes | -20 | 135 | ||
20.25 € | 1 | 5 Days | 160 | 40 | 20 | 45 | 135 | 135 | roller bearing | 688 | black | no | no | no | -20 | 135 | ||
31.76 € | 1 | 5 Days | 160 | 40 | 20 | 45 | 135 | 135 | roller bearing | 786 | grey | yes | no | yes | -20 | 135 | ||
13.17 € | 1 | 5 Days | 160 | 40 | 20 | 60 | 135 | 135 | plain bore | 612 | black | no | yes | no | -20 | 135 | ||
24.68 € | 1 | 5 Days | 160 | 40 | 20 | 60 | 135 | 135 | plain bore | 746 | grey | yes | yes | yes | -20 | 135 | ||
15.60 € | 1 | 5 Days | 160 | 40 | 20 | 60 | 135 | 135 | roller bearing | 906 | black | no | no | no | -20 | 135 | ||
27.11 € | 1 | 5 Days | 160 | 40 | 20 | 60 | 135 | 135 | roller bearing | 812 | grey | yes | no | yes | -20 | 135 | ||
18.02 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 170 | 170 | plain bore | 879 | black | no | yes | no | -20 | 170 | ||
32.51 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 170 | 170 | plain bore | 1048 | grey | yes | yes | yes | -20 | 170 | ||
20.32 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 170 | 170 | roller bearing | 942 | black | no | no | no | -20 | 170 | ||
34.82 € | 1 | 5 Days | 180 | 50 | 20 | 60 | 170 | 170 | roller bearing | 1128 | grey | yes | no | yes | -20 | 170 | ||
20.34 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 205 | 205 | plain bore | 1123 | black | no | yes | no | -20 | 205 | ||
42.98 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 205 | 205 | plain bore | 1344 | grey | yes | yes | yes | -20 | 205 | ||
35.30 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 205 | 205 | ball bearing | 1388 | black | no | no | no | -20 | 205 | ||
57.95 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 205 | 205 | ball bearing | 1561 | grey | yes | no | yes | -20 | 205 | ||
21.30 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 205 | 205 | roller bearing | 1620 | black | no | no | no | -20 | 205 | ||
43.95 € | 1 | 5 Days | 200 | 50 | 20 | 60 | 205 | 205 | roller bearing | 1504 | grey | yes | no | yes | -20 | 205 | ||
20.34 € | 1 | 5 Days | 200 | 50 | 25 | 60 | 205 | 205 | plain bore | 1133 | black | no | yes | no | -20 | 205 | ||
42.98 € | 1 | 7 Days | 200 | 50 | 25 | 60 | 205 | 205 | plain bore | 1340 | grey | yes | yes | yes | -20 | 205 | ||
27.24 € | 1 | 5 Days | 200 | 65 | 20 | 60 | 200 | 200 | plain bore | 1651 | black | no | yes | no | -20 | 200 | ||
41.15 € | 1 | 5 Days | 250 | 60 | 20 | 74 | 295 | 295 | plain bore | 2780 | black | no | yes | no | -20 | 295 | ||
93.04 € | 1 | 5 Days | 250 | 60 | 20 | 74 | 295 | 295 | plain bore | 2515 | grey | yes | yes | yes | -20 | 295 | ||
40.74 € | 1 | 5 Days | 250 | 60 | 20 | 65 | 295 | 295 | plain bore | 2031 | black | no | yes | no | -20 | 295 | ||
92.61 € | 1 | 7 Days | 250 | 60 | 20 | 65 | 295 | 295 | plain bore | 2348 | grey | yes | yes | yes | -20 | 295 | ||
60.32 € | 1 | 5 Days | 250 | 60 | 20 | 65 | 295 | 295 | ball bearing | 2360 | black | no | no | no | -20 | 295 | ||
112.20 € | 1 | 5 Days | 250 | 60 | 20 | 65 | 295 | 295 | ball bearing | 2750 | grey | yes | no | yes | -20 | 295 | ||
41.15 € | 1 | 5 Days | 250 | 60 | 25 | 74 | 295 | 295 | plain bore | 2030 | black | no | yes | no | -20 | 295 | ||
93.04 € | 1 | 7 Days | 250 | 60 | 25 | 74 | 295 | 295 | plain bore | 2361 | grey | yes | yes | yes | -20 | 295 | ||
40.74 € | 1 | 5 Days | 250 | 60 | 25 | 65 | 295 | 295 | plain bore | 2034 | black | no | yes | no | -20 | 295 | ||
92.61 € | 1 | 5 Days | 250 | 60 | 25 | 65 | 295 | 295 | plain bore | 2378 | grey | yes | yes | yes | -25 | 295 | ||
62.55 € | 1 | 5 Days | 250 | 60 | 25 | 65 | 295 | 295 | ball bearing | 2326 | black | no | no | no | -20 | 295 |
Loading...
Basic information
| Wheel Material | Resin | Bearing | Provided | Wheel Material | Resin |
|---|---|---|---|---|---|
| Material (details) | high-quality polypropylene | Product type | wheel | Antistatic | no |
| Suitable for autoclaves | no | Tread and tyre hardness | 80 Shore A | Electrically conductive | no |
| Wheel body colour | black | Heat-resistant | no | Tread hydrolysis-resistant | no |
| Tread material | Rubber | Max. temperature resistance(° C) | 60 |
Configure
Basic Attributes
-
Wheel O.D.(mm)
-
Wheel Width(mm)
-
Hole Diameter(mm)
-
Hub Width(mm)
-
Max. Load / Allowable Load(daN)
-
Max. Load / Allowable Load(kg)
-
Bearing type
- ball bearing
- plain bore
- roller bearing
-
Weight(g)
- 95
- 106
- 118
- 126
- 183
- 185
- 212
- 216
- 218
- 220
- 228
- 240
- 358
- 359
- 394
- 395
- 436
- 438
- 448
- 462
- 476
- 510
- 520
- 601
- 611
- 612
- 629
- 640
- 643
- 688
- 731
- 741
- 746
- 786
- 812
- 879
- 906
- 942
- 1048
- 1123
- 1128
- 1133
- 1340
- 1344
- 1388
- 1504
- 1561
- 1620
- 1651
- 2030
- 2031
- 2034
- 2139
- 2326
- 2348
- 2360
- 2361
- 2378
- 2400
- 2515
- 2540
- 2750
- 2780
- 2850
- 3639
- 4630
- 4815
- 5600
- 9502
- 9619
-
Tread color
- black
- grey
-
Non-staining
- no
- yes
-
Rustproof
- no
- yes
-
Non-marking
- no
- yes
-
Min. temperature resistance(° C)
- -25
- -20
-
Load capacity at 4km/h(kg)
-
Type
- VPP
Filter by standard shipping days
-
- All
- 5 Days or Less
- 7 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
