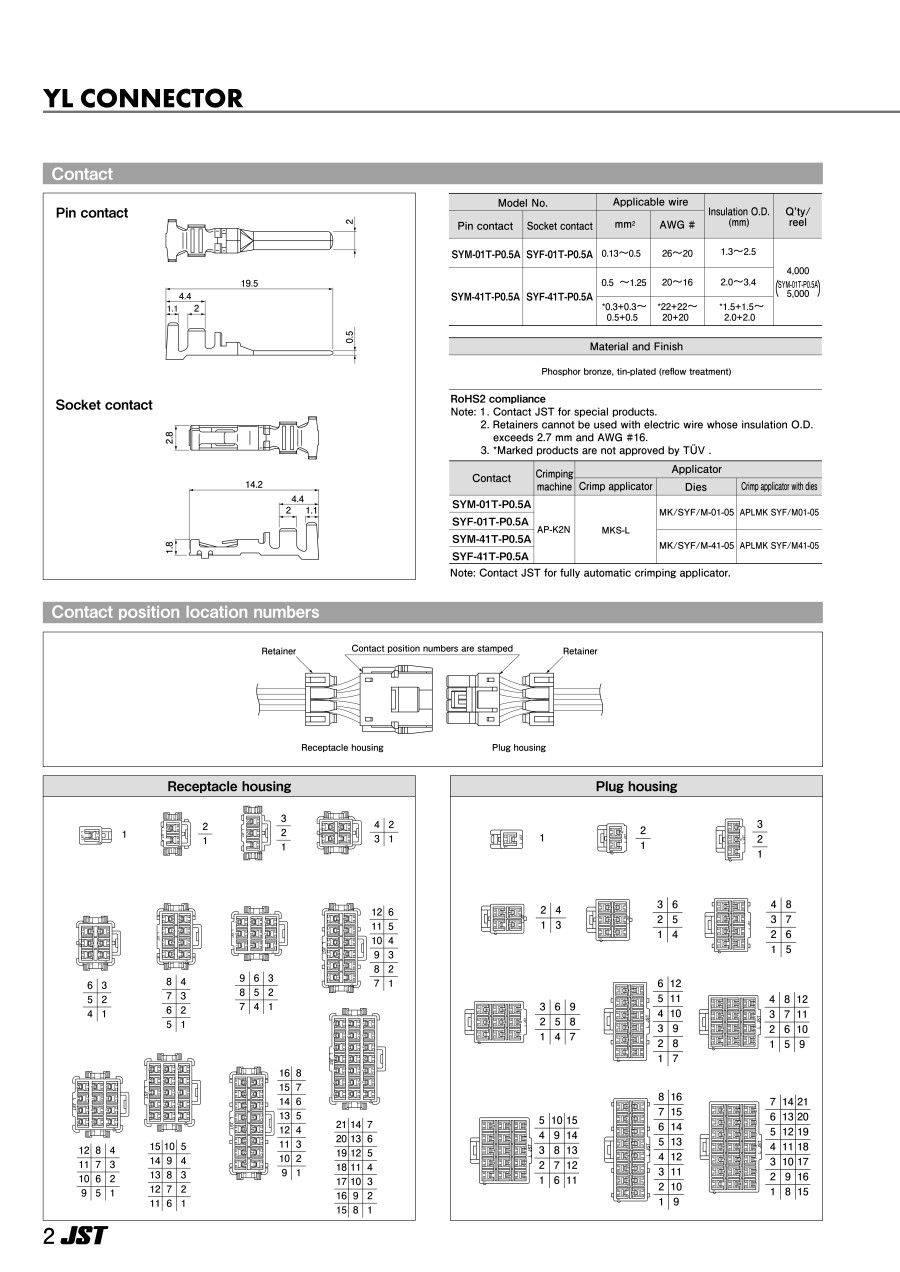

Socket Contact for YL Connector【4,000 Pieces Per Package】
Uses a housing lance method to fix the contact to the housing. For relay connection.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
BYF-01T-P0.5A
Basic information
| Connector series initials | Y/Z | Y and Z | YL | Applicable pin/contact | Female (socket) |
|---|---|---|---|---|---|
| Allowable Current(A) | AC/DC10 | Allowable Voltage(V) | AC/DC300 | Wire connection method | Crimp |
| Protection function (environmentally resistant) | N/A | Representative Standard | UL / TUV / CSA | Specifications | Individual |
| Applicable wire range(AWG) | #26 to 20 | Wire coating outer diameter(mm) | 1.3–2.5 | Material/surface treatment | Phosphor bronze/tin plating (reflow treatment) |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
