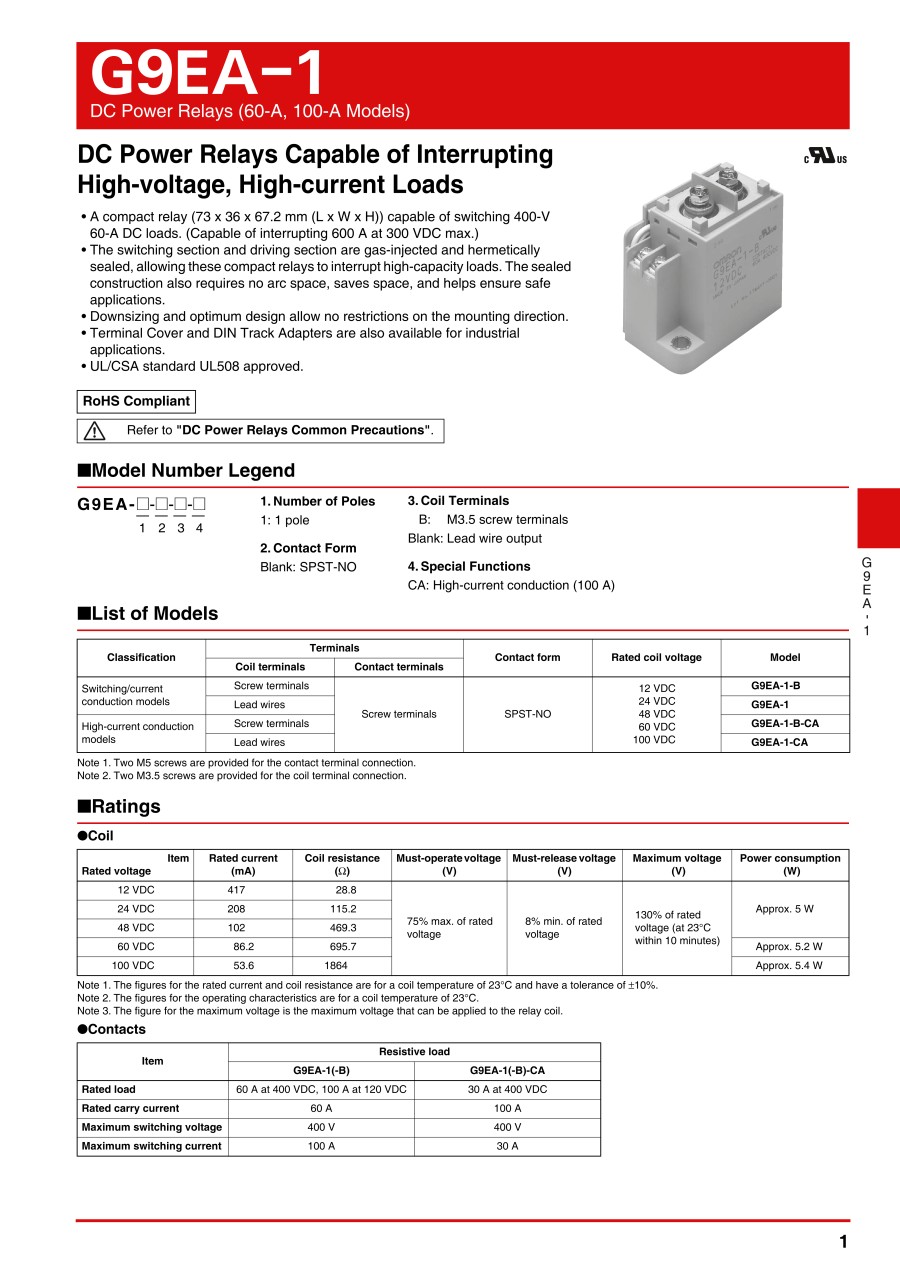

DC Power Relay (60A, 100A Type) G9EA-1
- Volume Discount
[Features]
· DC power relay that can cut off high voltage, high current direct current loads.
· Small size with height 67.2 mm × width 36 mm × length 73 mm, DC400V, 60A switching capable (maximum DC300V, 600A cutoff capable).
· Due to the switching and driving parts' gas filling and sealing structures, the small size makes it capable of cutting off high capacity loads, and achieves arc space free space saving and stability.
· At the same time, it features highly reliable contact free from environmental effects.
· No limitations to mounting direction due to parts miniaturization and appropriate matching design.
· Terminal cover for general industrial use with DIN rail adapter also available.
· UL/CSA standard UL508 acquired.
· DC power relay that can cut off high voltage, high current direct current loads.
· Small size with height 67.2 mm × width 36 mm × length 73 mm, DC400V, 60A switching capable (maximum DC300V, 600A cutoff capable).
· Due to the switching and driving parts' gas filling and sealing structures, the small size makes it capable of cutting off high capacity loads, and achieves arc space free space saving and stability.
· At the same time, it features highly reliable contact free from environmental effects.
· No limitations to mounting direction due to parts miniaturization and appropriate matching design.
· Terminal cover for general industrial use with DIN rail adapter also available.
· UL/CSA standard UL508 acquired.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| G9EA-1-B DC12 |
| G9EA-1-B DC24 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Coil rated voltage (DC) (V) | |
|---|---|---|---|---|---|
134.45 € | 1 | Available | 6 Days | 12 | |
134.45 € | 1 | Available | 6 Days | 24 |
Loading...
Basic information
| Application | Power | Contact Configuration | 1a | Terminal shape | Screw terminal |
|---|---|---|---|---|---|
| Contact rated current (minimum value for AC and DC)(A) | 60 | Representative Standard | UL / CSA | Dimension height(mm) | 67.2 |
| Dimension width(mm) | 36 | Dimension depth(mm) | 73 | Type | Switch/ conductive type |
| DC rated load | DC400V/60A, DC120V/100A |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
