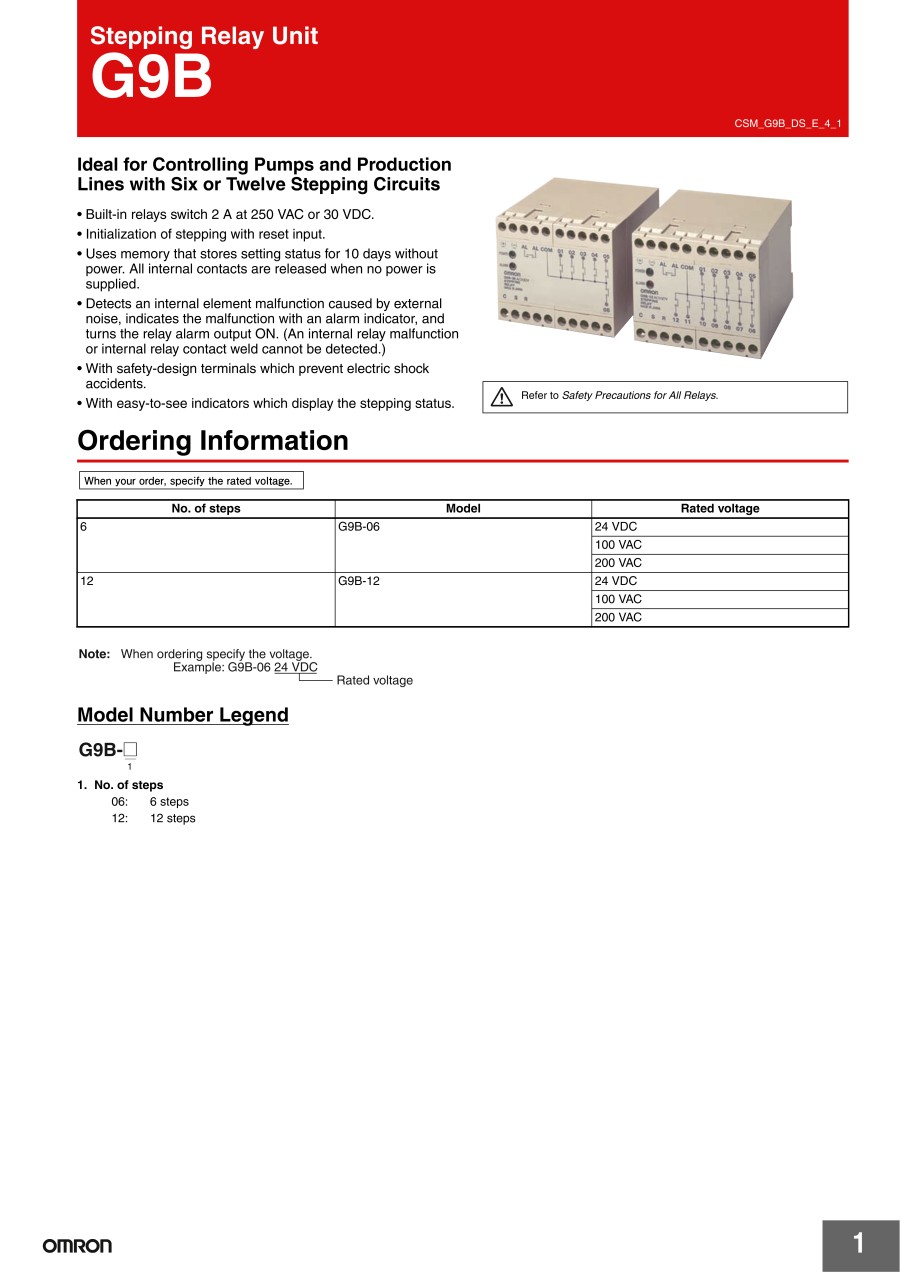

Stepping Relay Unit G9B
- Volume Discount
[Features]
· Stepping control features optimized for pump control and process control and made into a unit.
· Step has 6 circuits, 12 circuits in 2 steps.
· 2A (AC250V, DC30V) switching possible due to relay contact output.
· Restores to step initial state due to reset input.
· Includes power outage preservation feature that records step state with 10-day internal memory even during power outage (power outage output contact becomes set to OFF).
· Equipped with malfunction detection feature that detects built-in relay driving element ON malfunction due to external noise, etc.
· Displays LED alarm and at the same time outputs alarm with contact (cannot detect bad contact, welding in contact relay).
· Terminal block designed with finger protection to prevent electric shocks.
· LED display included to show step status at a glance.
· Stepping control features optimized for pump control and process control and made into a unit.
· Step has 6 circuits, 12 circuits in 2 steps.
· 2A (AC250V, DC30V) switching possible due to relay contact output.
· Restores to step initial state due to reset input.
· Includes power outage preservation feature that records step state with 10-day internal memory even during power outage (power outage output contact becomes set to OFF).
· Equipped with malfunction detection feature that detects built-in relay driving element ON malfunction due to external noise, etc.
· Displays LED alarm and at the same time outputs alarm with contact (cannot detect bad contact, welding in contact relay).
· Terminal block designed with finger protection to prevent electric shocks.
· LED display included to show step status at a glance.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| G9B-06 AC100 |
| G9B-06 AC200 |
| G9B-12 AC200 |
| G9B-12 DC24 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rated Voltage | Number of steps | |
|---|---|---|---|---|---|---|
129.89 € | 1 | 6 Days | AC100 | 6 steps | ||
129.89 € | 1 | 6 Days | AC200 | 6 steps | ||
205.09 € | 1 | Available | 6 Days | AC200 | 12 steps | |
161.76 € | 1 | Available | 6 Days | DC24 | 12 steps |
Loading...
Basic information
| Application | Stepping relay unit | Terminal shape | Screw terminal | Dimension height(mm) | 76 |
|---|---|---|---|---|---|
| Dimension width(mm) | 91 | Dimension depth(mm) | 100 | AC rated load | AC250V/2A |
| DC rated load | DC30V/2A |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
