Multi-point Socket Connector SEK
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.

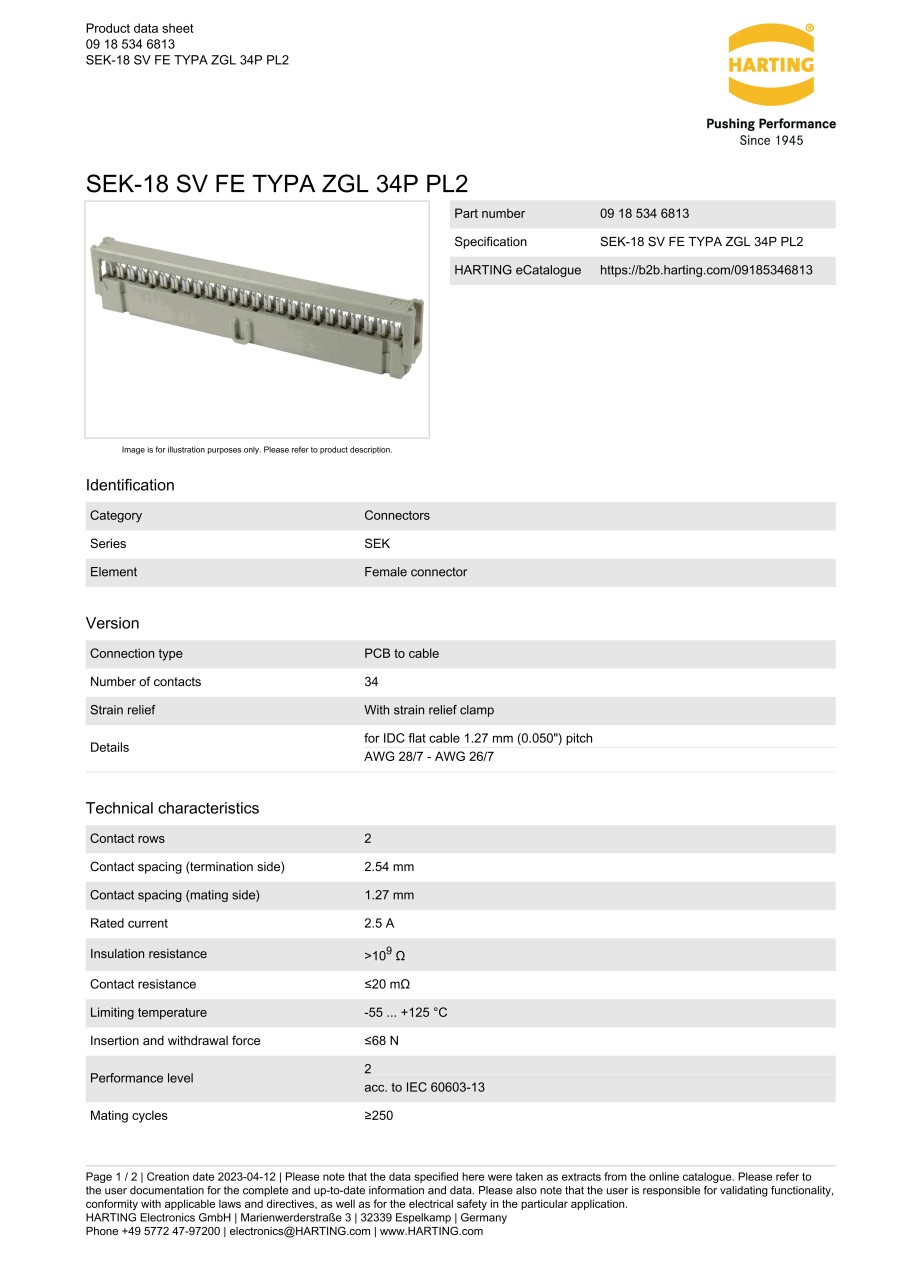

09 18 534 6813
Basic information
| Nominal current(A) | 2 | Nominal voltage(V) | 500 | Connection direction | Straight |
|---|---|---|---|---|---|
| Product size (height)(mm) | 14.5 | Product size (length)(mm) | 6.1 | Product size (width)(mm) | 47.8 |
| Contact spacing(mm) | 2.54 | Number of pins | 34 | Total number of pins | 34 |
| Pins per row | 17 | No. of rows | 2 | Max. temperature(°C) | +125 |
| Min. temperature(°C) | -55 | Colour | Grey | Connection (components) | Cut & Clip |
| Contact surface | Gold plated | Connector orientation | Perpendicular (to the PCB) | Standards/certification marks | IEC 60603-13 |
| Contact material | Copper alloy | Case material | PA | Material (details) | PBTB to UL 94VO standard |
| Connector type | Edge connector | Connector type (category) | Edge connector (receptacle) |
This page is Multi-point Socket Connector SEK, part number 09 18 534 6813.
You can find the detail information about specifications and dimensions on part number 09 18 534 6813.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
