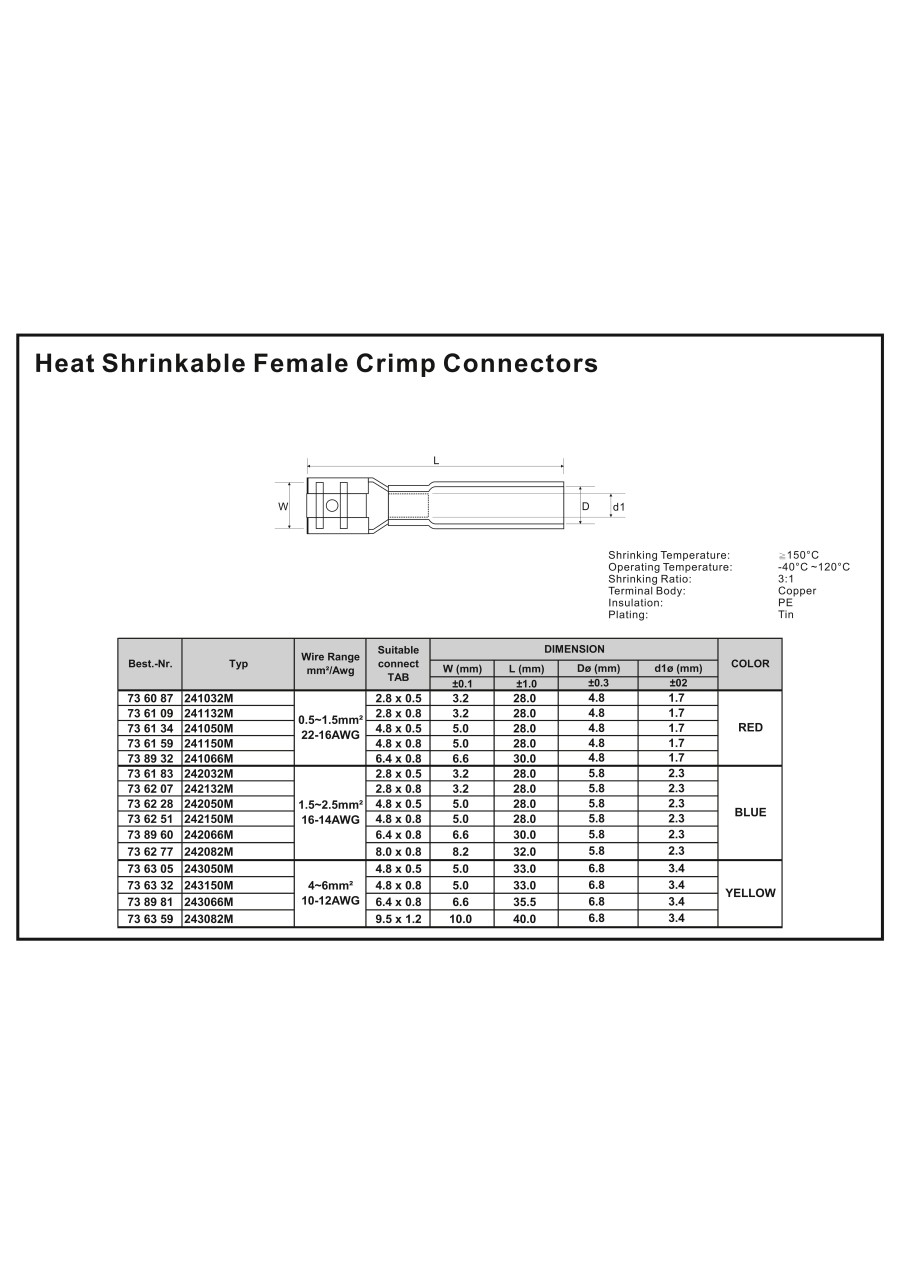

Blade receptacle with heatshrink【50 Pieces Per Package】
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
736087
Basic information
| AWG max. | 22 | AWG (min.) | 16 | Colour | Red |
|---|---|---|---|---|---|
| Connection angle(°) | 180 | Connector features | + heatshrink | Connector thickness(mm) | 0.5 |
| Connector width(mm) | 2.8 | Contact material | Copper silver plated | Cross-section range | 0.50 - 1.50 mm² |
| Cross section (max.)(mm²) | 1.5 | Insulation type | Partially insulated | Insulation material | PE |
| Manufacturer part # | 736087 | Min. cross section(mm²) | 0.5 | Product type | Blade receptacle |
| Size | 2.8 x 0.5 mm | Support sleeve | No | Temperature range(°C) | -40 to +120 |
| Type (manufacturer type) | 241032 M |
This page is Blade receptacle with heatshrink, part number 736087.
You can find the detail information about specifications and dimensions on part number 736087.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
