Type 2 surge arrester, Pluggable surge, VAL-SEC
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|

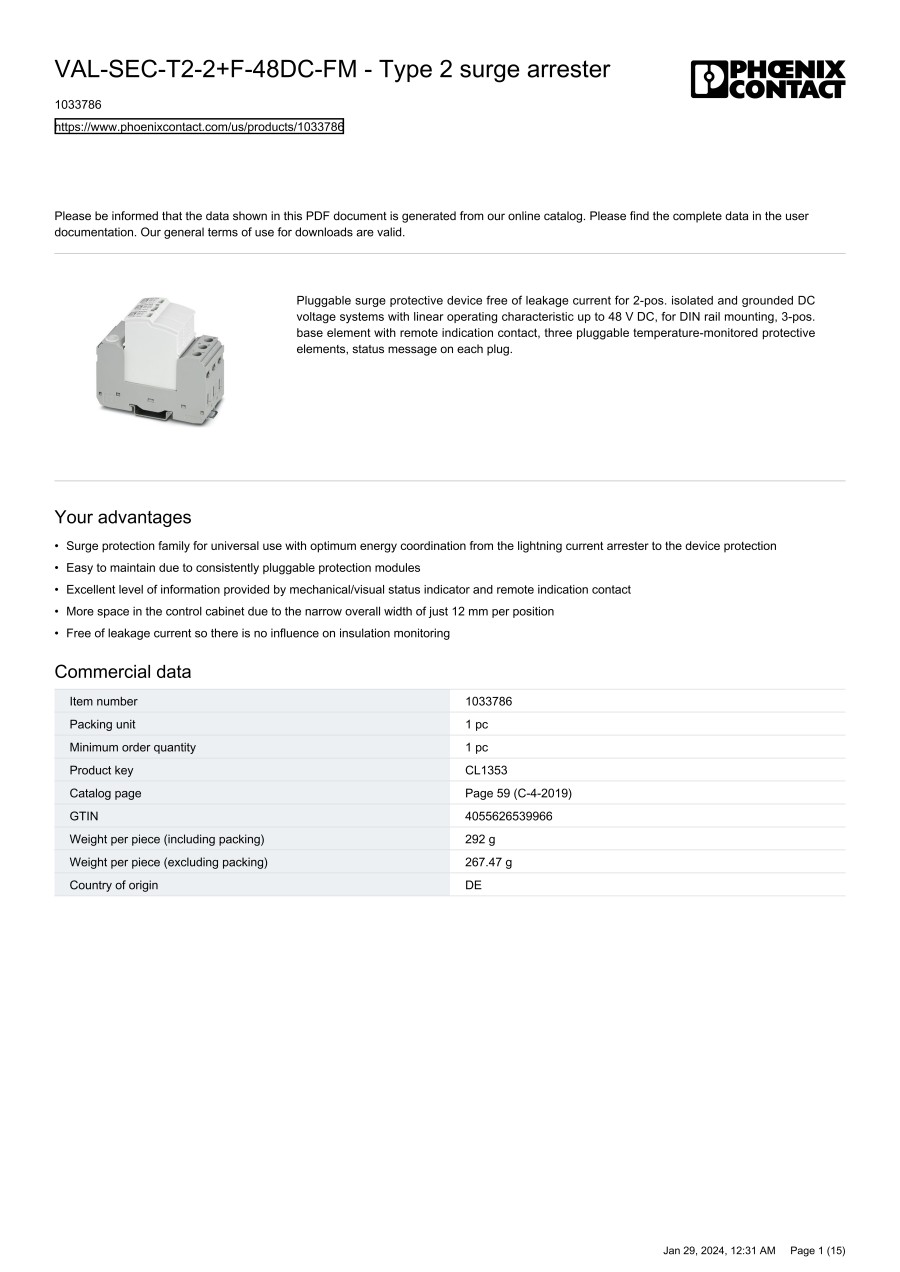

| 1033786 |
| 1033788 |
| 1033789 |
| 1033790 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Voltage protection level (kV) | Max. continuous voltage AC (V) | Nominal voltage DC (V) | Max. continuous voltage DC (V) | |
|---|---|---|---|---|---|---|---|---|---|
324.50 € | 1 | 9 Days | 1 | 75 | 60 | 75 | |||
324.50 € | 1 | 9 Days | 1.3 | 150 | 120 | 150 | |||
324.50 € | 1 | 9 Days | 1.9 | 250 | 220 | 250 | |||
324.50 € | 1 | 9 Days | 1.9 | 450 | 400 | 450 |
Loading...
Basic information
| Mounting method | DIN rail (top hat rail) 35 mm | With remote signalling contact | true | Number of conductors (without earthing) | - |
|---|---|---|---|---|---|
| Construction size | 2 modular spacing | Nominal discharge surge current (8/20)(kA) | 20 | Nominal voltage AC(V) | - |
| Category type 2 | true | Voltage protection level L-N(kV) | - | Signalling at the device | Optic |
| Degree of protection (IP) | - | Max. PV-voltage(V) | - | Voltage protection level N-PE(kV) | - |
| Integrated backup fuse | false | Max. conductor cross section solid (solid, stranded)(mm²) | 25 | Max. conductor cross section flexible (fine-strand)(mm²) | 16 |
| System configuration DC | - | System configuration IT | - | System configuration TN | - |
| System configuration TN-C | - | System configuration TN-S | - | System configuration TT | - |
| System configuration other | - | System configuration TN-C-S | - | Max. discharge surge current (8/20)(kA) | - |
| Short-circuit breaking capacity (Isccr)(kA) | - |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
