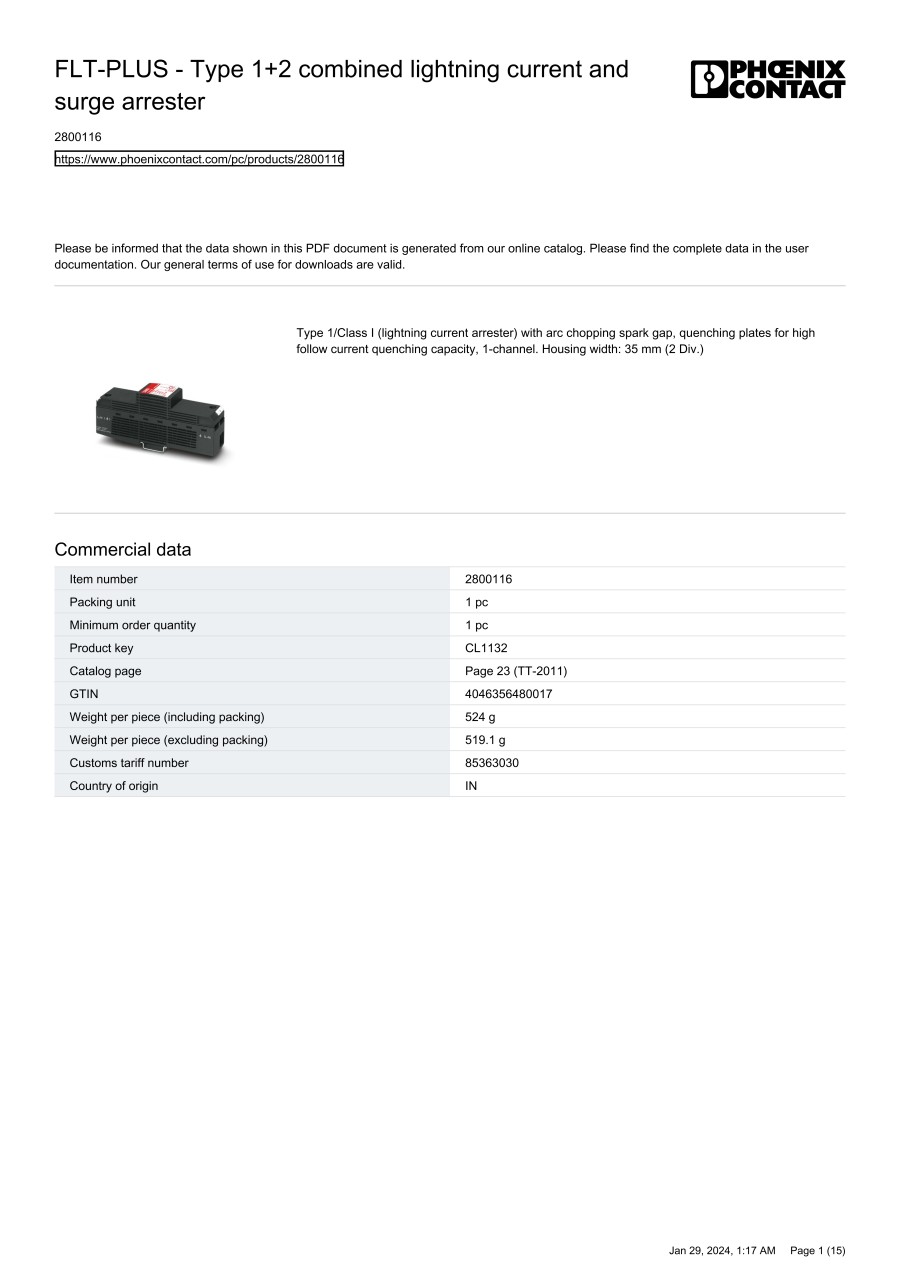

Combination type 1 / 2 protective device, FLT-PLUS
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
2800116
Basic information
| Mounting method | DIN rail (top hat rail) 35 mm | Lightning impulse current (10/350 µs)(kA) | 50 | With remote signalling contact | false |
|---|---|---|---|---|---|
| Number of conductors (without earthing) | - | Construction size | 2 modular spacing | Voltage protection level(kV) | 5 |
| Suitable for outdoor use | - | Exhausting | true | Follow current extinguishing capability(kA) | 25 |
| Max. continuous voltage AC(V) | 400 | Nominal discharge surge current (8/20)(kA) | 50 | Nominal voltage AC(V) | 230 |
| Nominal voltage DC(V) | - | Category type 1 | true | Voltage protection level L-N(kV) | - |
| Signalling at the device | None | Max. continuous voltage DC(V) | - | Degree of protection (IP) | - |
| Voltage protection level N-PE(kV) | - | Integrated backup fuse | - | Max. conductor cross section solid (solid, stranded)(mm²) | 50 |
| Max. conductor cross section flexible (fine-strand)(mm²) | 35 | Voltage protection level (DC+ - DC-)(kV) | - | Voltage protection level (DC+/DC- - PE)(kV) | - |
| Specific energy (W/R)(kJ/Ohm) | - | System configuration DC | - | System configuration IT | - |
| System configuration TN | - | System configuration TN-C | - | System configuration TN-S | - |
| System configuration TT | true | System configuration other | - | System configuration TN-C-S | AAO765 |
This page is Combination type 1 / 2 protective device, FLT-PLUS, part number 2800116.
You can find the detail information about specifications and dimensions on part number 2800116.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
