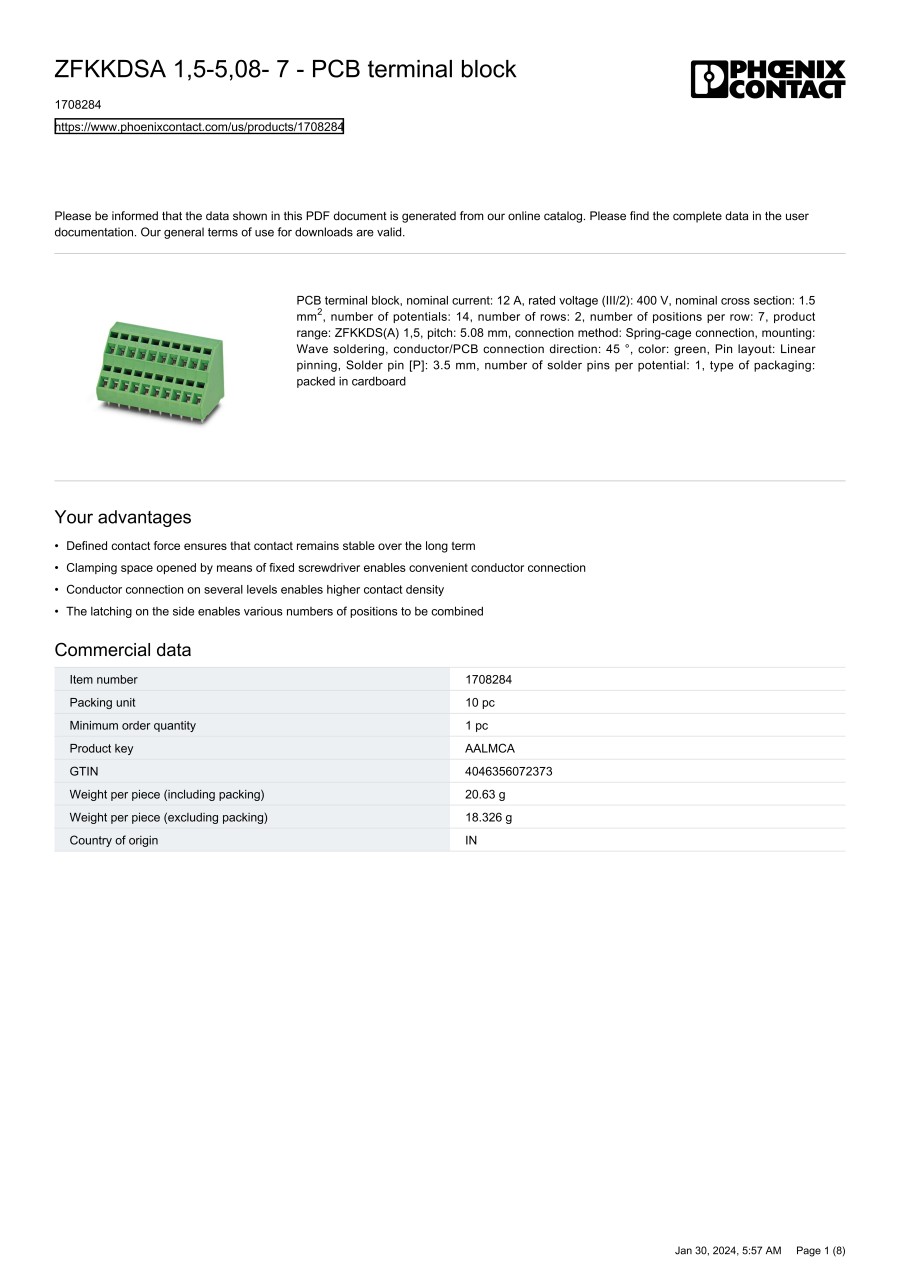

PCB terminal block, ZFKKDSA
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1708284 |
| 1760620 |
| 1760633 |
| 1766967 |
| 1766970 |
| 1768350 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Colour housing | Connectable conductor cross section solid-core (mm²) | Connectable conductor cross section fine-strand with cable end sleeve (mm²) | Connectable conductor cross section fine-strand without cable end sleeve (mm²) | Rated current In (A) | Number of electrical connections | |
|---|---|---|---|---|---|---|---|---|---|---|---|
6.62 € | 30 | 37 Days | Green | 0.2|2.5 | 0.25|1.5 | 0.2|1.5 | 12 | 7 | |||
3.65 € | 50 | Quote | Green | 0.2|4 | 0.25|2.5 | 0.2|2.5 | 17.5 | 4 | |||
22.81 € | 50 | Quote | Green | 0.2|4 | 0.25|2.5 | 0.2|2.5 | 17.5 | 25 | |||
19.87 € | 10 | 37 Days | - | 0.2|2.5 | 0.25|1.5 | 0.2|1.5 | 12 | 21 | |||
24.60 € | 10 | 37 Days | - | 0.2|2.5 | 0.25|1.5 | 0.2|1.5 | 12 | 26 | |||
29.20 € | 10 | Quote | Green | 0.2|4 | 0.25|2.5 | 0.2|2.5 | 17.5 | 32 |
Loading...
Basic information
| Height(mm) | 29 | Rated voltage(V) | 400 | Operation temperature(°C) | -40|100 |
|---|---|---|---|---|---|
| Type of fastening | - | Inflammability class of insulation material acc. with UL94 | V0 | Number of levels | 2 |
| Rated surge voltage(kV) | 4 | Over voltage category | III | Pollution degree | 2 |
| Connection type conductor | Spring clamp connection | Connection type PCB | Soldering connection | Diameter connection pin(mm) | 1.3 |
| Length pin(mm) | 3.5 | Material connection surface | Tin | Modular spacing connections(mm) | 5.08 |
| Type of banding | None | Connectable conductor cross section multi-wired(mm²) | -|- | Degree of protection (IP), mounted | - |
| Material insulation body | Other | Angle PCB/conductor connection | 45°/135° (downwards inclined) | Type of PCB fastening | Connecting contact |
Configure
Basic Attributes
-
Colour housing
-
Connectable conductor cross section solid-core(mm²)
-
Connectable conductor cross section fine-strand with cable end sleeve(mm²)
-
Connectable conductor cross section fine-strand without cable end sleeve(mm²)
-
Rated current In(A)
-
Number of electrical connections
-
Type
Filter by standard shipping days
-
- All
- 37 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
