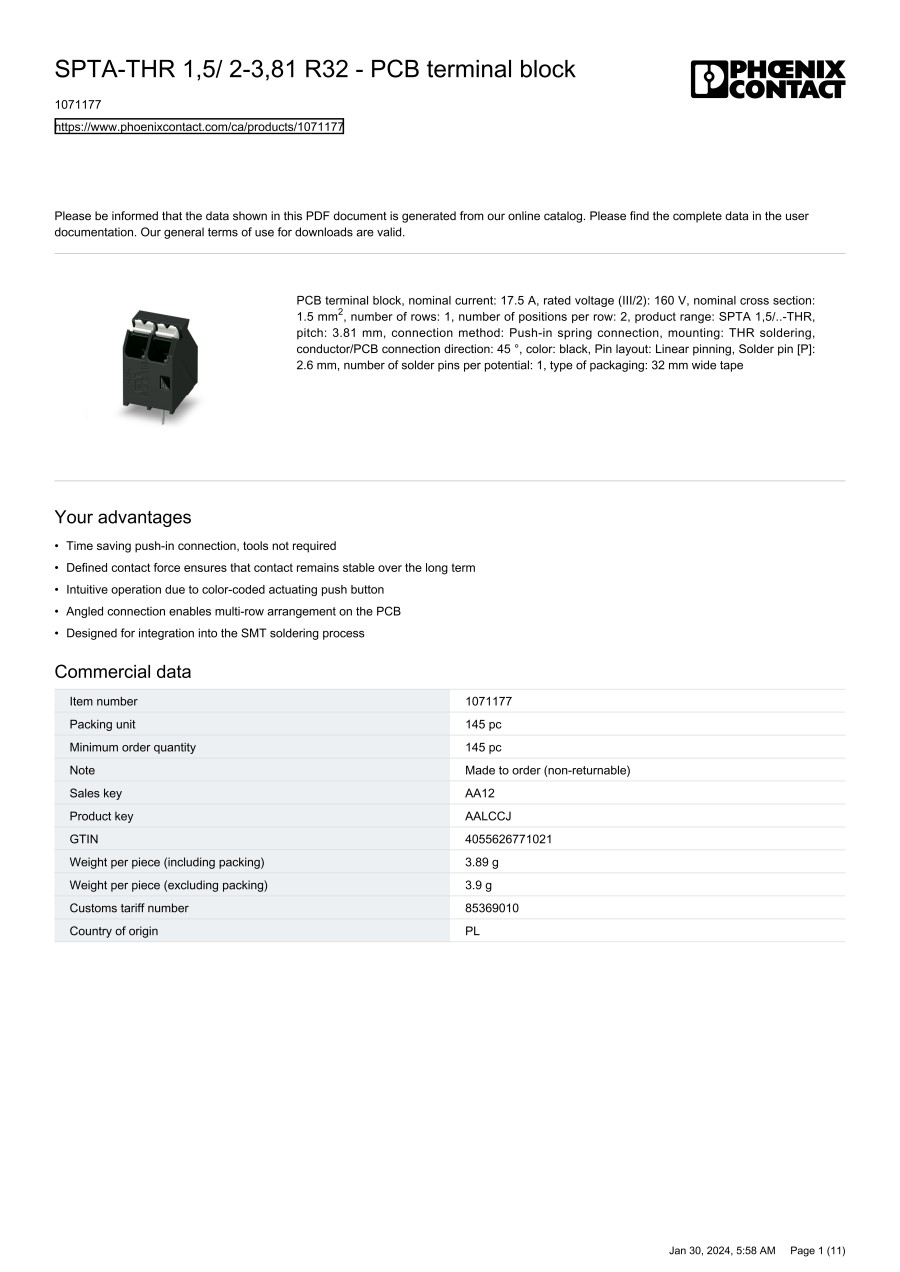

PCB terminal block, SPTA-THR
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 1071177 |
| 1071181 |
| 1071199 |
| 1071205 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Rated voltage (V) | Rated surge voltage (kV) | Modular spacing connections (mm) | Number of electrical connections | |
|---|---|---|---|---|---|---|---|---|---|
1.42 € | 145 | 54 Days | 160 | 2.5 | 3.81 | 2 | |||
2.77 € | 145 | 54 Days | 160 | 2.5 | 3.81 | 5 | |||
1.88 € | 145 | 54 Days | 320 | 4 | 5.08 | 2 | |||
3.23 € | 145 | 54 Days | 320 | 4 | 5.08 | 5 |
Loading...
Basic information
| Height(mm) | 15.07 | Colour housing | Black | Operation temperature(°C) | -40|-40 |
|---|---|---|---|---|---|
| Type of fastening | - | Inflammability class of insulation material acc. with UL94 | - | Number of levels | 1 |
| Over voltage category | - | Pollution degree | - | Connection type conductor | - |
| Connection type PCB | THR connection | Diameter connection pin(mm) | 1.1 | Length pin(mm) | 2.6 |
| Material connection surface | Tin | Type of banding | Blister girdle (for SMD) | Connectable conductor cross section solid-core(mm²) | 0.2|1.5 |
| Connectable conductor cross section fine-strand with cable end sleeve(mm²) | 0.25|1.5 | Connectable conductor cross section fine-strand without cable end sleeve(mm²) | 1.5|1.5 | Connectable conductor cross section multi-wired(mm²) | -|- |
| Degree of protection (IP), mounted | - | Material insulation body | - | Angle PCB/conductor connection | 45°/135° (downwards inclined) |
| Type of PCB fastening | - | Rated current In(A) | 13.5 |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
