2-Flute, Miniature, Short, MG-EDS-3

2-Flute, Miniature, Short, MG-EDS-3
  • Volume Discount

OSG

OSG

Uses carbide alloy that increases in great intensity to Young's modulus.

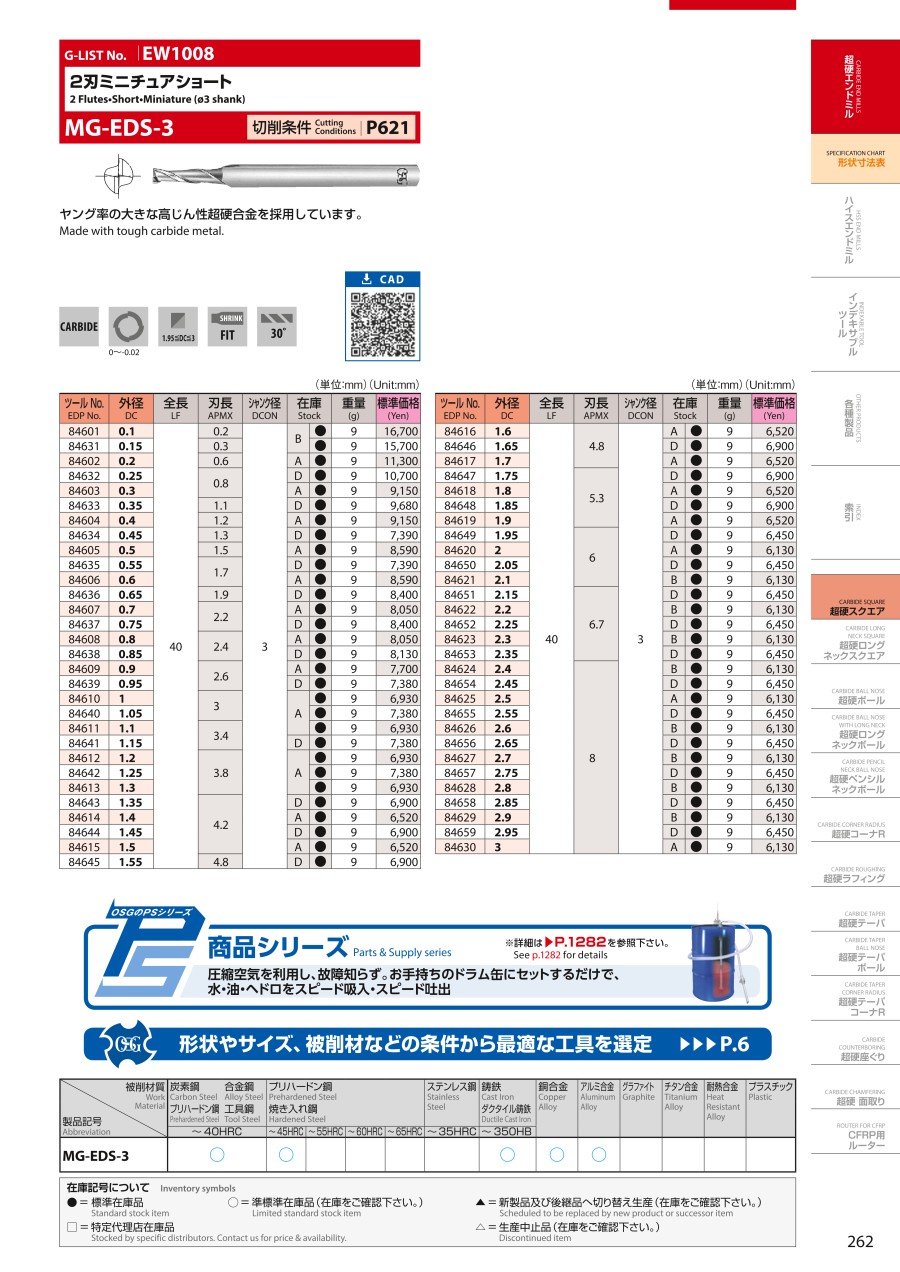

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
MG-EDS-3-0.1
MG-EDS-3-0.2
MG-EDS-3-0.3
MG-EDS-3-0.4
MG-EDS-3-0.5
MG-EDS-3-0.6
MG-EDS-3-0.7
MG-EDS-3-0.8
MG-EDS-3-0.9
MG-EDS-3-0.15
MG-EDS-3-0.25
MG-EDS-3-0.35
MG-EDS-3-0.45
MG-EDS-3-0.55
MG-EDS-3-0.65
MG-EDS-3-0.75
MG-EDS-3-0.85
MG-EDS-3-0.95
MG-EDS-3-1
MG-EDS-3-1.05
MG-EDS-3-1.1
MG-EDS-3-1.2
MG-EDS-3-1.3
MG-EDS-3-1.4
MG-EDS-3-1.5
MG-EDS-3-1.6
MG-EDS-3-1.7
MG-EDS-3-1.8
MG-EDS-3-1.9
MG-EDS-3-1.15
MG-EDS-3-1.25
MG-EDS-3-1.35
MG-EDS-3-1.45
MG-EDS-3-1.55
MG-EDS-3-1.65
MG-EDS-3-1.75
MG-EDS-3-1.85
MG-EDS-3-1.95
MG-EDS-3-2
MG-EDS-3-2.05
MG-EDS-3-2.1
MG-EDS-3-2.2
MG-EDS-3-2.3
MG-EDS-3-2.4
MG-EDS-3-2.5
MG-EDS-3-2.6
MG-EDS-3-2.7
MG-EDS-3-2.8
MG-EDS-3-2.9
MG-EDS-3-2.15
MG-EDS-3-2.25
MG-EDS-3-2.35
MG-EDS-3-2.45
MG-EDS-3-2.55
MG-EDS-3-2.65
MG-EDS-3-2.75
MG-EDS-3-2.85
MG-EDS-3-2.95
MG-EDS-3-3
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ) 		Blade length (ℓ)
(mm) 		Blade tip shape Tool No.

99.23 €

1 6 Days 0.10.2With Lead84601

66.36 €

1 6 Days 0.20.6With Lead84602

54.87 €

1 Available 6 Days 0.30.8With Lead84603

54.87 €

1 Available 6 Days 0.41.2With Lead84604

51.51 €

1 6 Days 0.51.5With Lead84605

51.51 €

1 6 Days 0.61.7With Lead84606

48.49 €

1 6 Days 0.72.2With Lead84607

48.49 €

1 6 Days 0.82.4With Lead84608

46.39 €

1 6 Days 0.92.6With Lead84609

92.93 €

1 6 Days 0.150.3With Lead84631

64.60 €

1 Available 6 Days 0.250.8With Lead84632

59.36 €

1 6 Days 0.351.1With Lead84633

45.43 €

1 6 Days 0.451.3With Lead84634

45.43 €

1 6 Days 0.551.7With Lead84635

51.51 €

1 6 Days 0.651.9With Lead84636

51.51 €

1 6 Days 0.752.2With Lead84637

49.79 €

1 6 Days 0.852.4With Lead84638

45.36 €

1 6 Days 0.952.6With Lead84639

42.31 €

1 6 Days 13With Lead84610

44.50 €

1 6 Days 1.053With Lead84640

41.97 €

1 6 Days 1.13.4With Lead84611

41.97 €

1 6 Days 1.23.8With Lead84612

41.97 €

1 Available 6 Days 1.33.8With Lead84613

39.65 €

1 Available 6 Days 1.44.2With Lead84614

39.65 €

1 6 Days 1.54.2With Lead84615

39.65 €

1 Available 6 Days 1.64.8With Lead84616

39.65 €

1 6 Days 1.74.8With Lead84617

39.65 €

1 6 Days 1.85.3With Lead84618

39.65 €

1 6 Days 1.95.3With Lead84619

45.36 €

1 6 Days 1.153.4With Lead84641

44.84 €

1 6 Days 1.253.8With Lead84642

42.57 €

1 6 Days 1.354.2With Lead84643

42.57 €

1 6 Days 1.454.2With Lead84644

42.08 €

1 6 Days 1.554.8With Lead84645

42.57 €

1 6 Days 1.654.8With Lead84646

42.57 €

1 6 Days 1.755.3With Lead84647

42.57 €

1 6 Days 1.855.3With Lead84648

39.85 €

1 6 Days 1.956Sharp Corner84649

37.76 €

1 Available 6 Days 26Sharp Corner84620

39.85 €

1 6 Days 2.056Sharp Corner84650

37.42 €

1 6 Days 2.16Sharp Corner84621

37.42 €

1 6 Days 2.26.7Sharp Corner84622

37.42 €

1 6 Days 2.36.7Sharp Corner84623

37.42 €

1 6 Days 2.48Sharp Corner84624

37.42 €

1 6 Days 2.58Sharp Corner84625

37.42 €

1 Available 6 Days 2.68Sharp Corner84626

37.42 €

1 Available 6 Days 2.78Sharp Corner84627

37.42 €

1 Available 6 Days 2.88Sharp Corner84628

37.42 €

1 Available 6 Days 2.98Sharp Corner84629

39.36 €

1 6 Days 2.156.7Sharp Corner84651

39.85 €

1 6 Days 2.256.7Sharp Corner84652

39.85 €

1 6 Days 2.356.7Sharp Corner84653

39.85 €

1 6 Days 2.458Sharp Corner84654

39.85 €

1 6 Days 2.558Sharp Corner84655

39.85 €

1 6 Days 2.658Sharp Corner84656

39.85 €

1 6 Days 2.758Sharp Corner84657

39.85 €

1 6 Days 2.858Sharp Corner84658

39.85 €

1 6 Days 2.958Sharp Corner84659

37.42 €

1 Available 6 Days 38Sharp Corner84630

Loading...

  1. 1

Basic information

work material General steel / Heat-Treated Steel / Cast Iron / Aluminum / Copper Number of flutes(sheet) 2 Type Square
Coating Non-Coated Shank diameter (d)(mm) 3 Overall Length (L)(mm) 40
Machining Application Flat Surface / Side Surface / Groove / Thrust (Z-Feed) / Inclined Cutting Torsion Angle (θ) Standard Helix (30 to 40°) Blade diameter tolerance(mm) 0~-0.02
