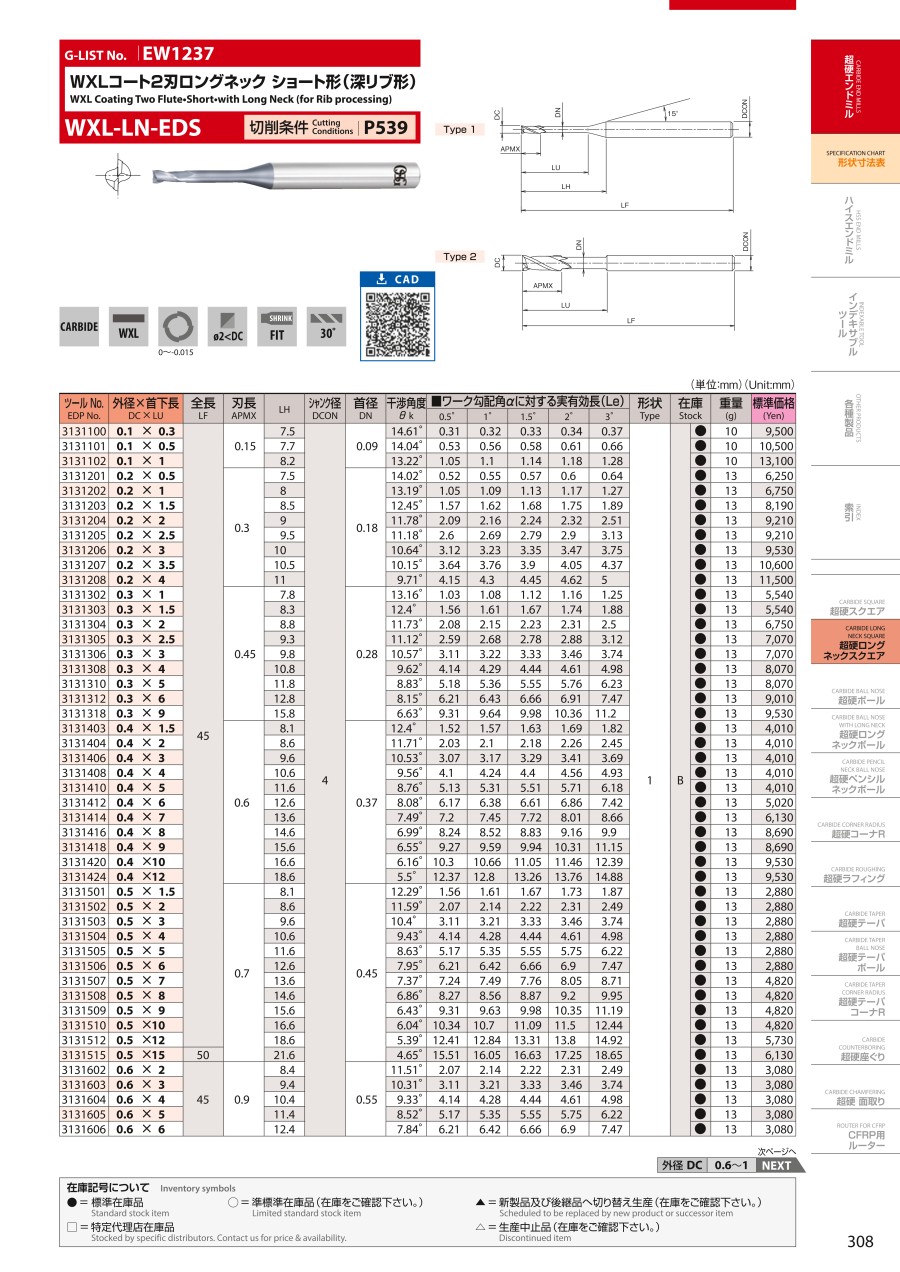

WXL-Coated 2-Flute Long Neck Short Type (Deep Ribbed Type) WXL-LN-EDS
- Volume Discount
· WXL coating with excellent lubrication and wear resistance.
Can be used with a wide range of work materials and cutting applications. Multiple variations available.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Underneck length (ℓ1) (mm) | Blade tip shape | Tool No. | Neck diameter (mm) | Blade diameter tolerance (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
138.10 € | 1 | 6 Days | 0.1 | 0.15 | 4 | 45 | 0.3 | - | 3131100 | 0.09 | 0 to -0.015 | ||
151.30 € | 1 | Available | 6 Days | 0.1 | 0.15 | 4 | 45 | 0.5 | - | 3131101 | 0.09 | 0 to -0.015 | |
188.60 € | 1 | 6 Days | 0.1 | 0.15 | 4 | 45 | 1 | - | 3131102 | 0.09 | 0 to -0.015 | ||
96.40 € | 1 | Available | 6 Days | 0.2 | 0.3 | 4 | 45 | 0.5 | With Lead | 3131201 | 0.18 | 0～-0.015 | |
104.90 € | 1 | Available | 6 Days | 0.2 | 0.3 | 4 | 45 | 1 | With Lead | 3131202 | 0.18 | 0～-0.015 | |
129.50 € | 1 | Available | 6 Days | 0.2 | 0.3 | 4 | 45 | 1.5 | With Lead | 3131203 | 0.18 | 0～-0.015 | |
140.80 € | 1 | Available | 6 Days | 0.2 | 0.3 | 4 | 45 | 2 | With Lead | 3131204 | 0.18 | 0～-0.015 | |
146.40 € | 1 | 6 Days | 0.2 | 0.3 | 4 | 45 | 2.5 | With Lead | 3131205 | 0.18 | 0～-0.015 | ||
146.40 € | 1 | Available | 6 Days | 0.2 | 0.3 | 4 | 45 | 3 | With Lead | 3131206 | 0.18 | 0～-0.015 | |
158.10 € | 1 | 6 Days | 0.2 | 0.3 | 4 | 45 | 3.5 | With Lead | 3131207 | 0.18 | 0～-0.015 | ||
170.00 € | 1 | 6 Days | 0.2 | 0.3 | 4 | 45 | 4 | With Lead | 3131208 | 0.18 | 0～-0.015 | ||
84.90 € | 1 | Available |
Same day
Stock | 0.3 | 0.45 | 4 | 45 | 1 | With Lead | 3131302 | 0.28 | 0～-0.015 | |
84.90 € | 1 | 6 Days | 0.3 | 0.45 | 4 | 45 | 1.5 | With Lead | 3131303 | 0.28 | 0～-0.015 | ||
104.90 € | 1 | Available | 6 Days | 0.3 | 0.45 | 4 | 45 | 2 | With Lead | 3131304 | 0.28 | 0～-0.015 | |
113.40 € | 1 | 6 Days | 0.3 | 0.45 | 4 | 45 | 2.5 | With Lead | 3131305 | 0.28 | 0～-0.015 | ||
113.40 € | 1 | Available | 6 Days | 0.3 | 0.45 | 4 | 45 | 3 | With Lead | 3131306 | 0.28 | 0～-0.015 | |
123.20 € | 1 | Available | 6 Days | 0.3 | 0.45 | 4 | 45 | 4 | With Lead | 3131308 | 0.28 | 0～-0.015 | |
123.20 € | 1 | Available | 6 Days | 0.3 | 0.45 | 4 | 45 | 5 | With Lead | 3131310 | 0.28 | 0～-0.015 | |
138.30 € | 1 | Available | 6 Days | 0.3 | 0.45 | 4 | 45 | 6 | With Lead | 3131312 | 0.28 | 0～-0.015 | |
146.40 € | 1 | Available | 6 Days | 0.3 | 0.45 | 4 | 45 | 9 | With Lead | 3131318 | 0.28 | 0～-0.015 | |
62.70 € | 1 | 6 Days | 0.4 | 0.6 | 4 | 45 | 1.5 | With Lead | 3131403 | 0.37 | 0～-0.015 | ||
62.70 € | 1 | Available |
Same day
Stock | 0.4 | 0.6 | 4 | 45 | 2 | With Lead | 3131404 | 0.37 | 0～-0.015 | |
62.70 € | 1 | Available | 6 Days | 0.4 | 0.6 | 4 | 45 | 3 | With Lead | 3131406 | 0.37 | 0～-0.015 | |
62.70 € | 1 | Available | 6 Days | 0.4 | 0.6 | 4 | 45 | 4 | With Lead | 3131408 | 0.37 | 0～-0.015 | |
62.70 € | 1 | 6 Days | 0.4 | 0.6 | 4 | 45 | 5 | With Lead | 3131410 | 0.37 | 0～-0.015 | ||
76.70 € | 1 | 6 Days | 0.4 | 0.6 | 4 | 45 | 6 | With Lead | 3131412 | 0.37 | 0～-0.015 | ||
93.60 € | 1 | 6 Days | 0.4 | 0.6 | 4 | 45 | 7 | With Lead | 3131414 | 0.37 | 0～-0.015 | ||
134.50 € | 1 | 6 Days | 0.4 | 0.6 | 4 | 45 | 8 | With Lead | 3131416 | 0.37 | 0～-0.015 | ||
134.50 € | 1 | Available | 6 Days | 0.4 | 0.6 | 4 | 45 | 9 | With Lead | 3131418 | 0.37 | 0～-0.015 | |
146.40 € | 1 | Available | 6 Days | 0.4 | 0.6 | 4 | 45 | 10 | With Lead | 3131420 | 0.37 | 0～-0.015 | |
146.40 € | 1 | 6 Days | 0.4 | 0.6 | 4 | 45 | 12 | With Lead | 3131424 | 0.37 | 0～-0.015 | ||
44.60 € | 1 | Available |
Same day
Stock | 0.5 | 0.7 | 4 | 45 | 1.5 | With Lead | 3131501 | 0.45 | 0～-0.015 | |
44.60 € | 1 | 6 Days | 0.5 | 0.7 | 4 | 45 | 2 | With Lead | 3131502 | 0.45 | 0～-0.015 | ||
44.60 € | 1 | Available | 6 Days | 0.5 | 0.7 | 4 | 45 | 3 | With Lead | 3131503 | 0.45 | 0～-0.015 | |
44.60 € | 1 | Available | 6 Days | 0.5 | 0.7 | 4 | 45 | 4 | With Lead | 3131504 | 0.45 | 0～-0.015 | |
44.60 € | 1 | Available | 6 Days | 0.5 | 0.7 | 4 | 45 | 5 | With Lead | 3131505 | 0.45 | 0～-0.015 | |
44.60 € | 1 | 6 Days | 0.5 | 0.7 | 4 | 45 | 6 | With Lead | 3131506 | 0.45 | 0～-0.015 | ||
73.30 € | 1 | 6 Days | 0.5 | 0.7 | 4 | 45 | 7 | With Lead | 3131507 | 0.45 | 0～-0.015 | ||
73.30 € | 1 | 6 Days | 0.5 | 0.7 | 4 | 45 | 8 | With Lead | 3131508 | 0.45 | 0～-0.015 | ||
73.30 € | 1 | Available | 6 Days | 0.5 | 0.7 | 4 | 45 | 10 | With Lead | 3131510 | 0.45 | 0～-0.015 | |
88.00 € | 1 | 6 Days | 0.5 | 0.7 | 4 | 45 | 12 | With Lead | 3131512 | 0.45 | 0～-0.015 | ||
93.60 € | 1 | Available | 6 Days | 0.5 | 0.7 | 4 | 50 | 15 | With Lead | 3131515 | 0.45 | 0～-0.015 | |
44.60 € | 1 | Available |
Same day
Stock | 0.6 | 0.9 | 4 | 45 | 2 | With Lead | 3131602 | 0.55 | 0～-0.015 | |
44.60 € | 1 | Available | 6 Days | 0.6 | 0.9 | 4 | 45 | 3 | With Lead | 3131603 | 0.55 | 0～-0.015 | |
44.60 € | 1 | 6 Days | 0.6 | 0.9 | 4 | 45 | 4 | With Lead | 3131604 | 0.55 | 0～-0.015 | ||
44.60 € | 1 | Available | 6 Days | 0.6 | 0.9 | 4 | 45 | 5 | With Lead | 3131605 | 0.55 | 0～-0.015 | |
44.60 € | 1 | 6 Days | 0.6 | 0.9 | 4 | 45 | 6 | With Lead | 3131606 | 0.55 | 0～-0.015 | ||
58.80 € | 1 | 6 Days | 0.6 | 0.9 | 4 | 45 | 7 | With Lead | 3131607 | 0.55 | 0～-0.015 | ||
73.30 € | 1 | Available | 6 Days | 0.6 | 0.9 | 4 | 45 | 8 | With Lead | 3131608 | 0.55 | 0～-0.015 | |
92.10 € | 1 | Available | 6 Days | 0.6 | 0.9 | 4 | 45 | 10 | With Lead | 3131610 | 0.55 | 0～-0.015 | |
104.40 € | 1 | 6 Days | 0.6 | 0.9 | 4 | 45 | 12 | With Lead | 3131612 | 0.55 | 0～-0.015 | ||
116.10 € | 1 | Available | 6 Days | 0.6 | 0.9 | 4 | 50 | 15 | With Lead | 3131615 | 0.55 | 0～-0.015 | |
127.20 € | 1 | Available | 6 Days | 0.6 | 0.9 | 4 | 50 | 18 | With Lead | 3131618 | 0.55 | 0～-0.015 | |
44.60 € | 1 | 6 Days | 0.7 | 1 | 4 | 45 | 2 | With Lead | 3131702 | 0.65 | 0～-0.015 | ||
44.60 € | 1 | 6 Days | 0.7 | 1 | 4 | 45 | 4 | With Lead | 3131704 | 0.65 | 0～-0.015 | ||
44.60 € | 1 | 6 Days | 0.7 | 1 | 4 | 45 | 6 | With Lead | 3131706 | 0.65 | 0～-0.015 | ||
64.20 € | 1 | Available | 6 Days | 0.7 | 1 | 4 | 45 | 8 | With Lead | 3131708 | 0.65 | 0～-0.015 | |
73.30 € | 1 | Available | 6 Days | 0.7 | 1 | 4 | 45 | 10 | With Lead | 3131710 | 0.65 | 0～-0.015 | |
48.90 € | 1 | Available |
Same day
Stock | 0.8 | 1.2 | 4 | 45 | 4 | With Lead | 3131804 | 0.75 | 0～-0.015 | |
48.90 € | 1 | Available | 6 Days | 0.8 | 1.2 | 4 | 45 | 6 | With Lead | 3131806 | 0.75 | 0～-0.015 |
Loading...
Basic information
| work material | General steel / Heat-Treated Steel / High hardness steel –HRC55 / High hardness steel –HRC60 / Stainless Steel / Cast Iron / Aluminum / Titanium / Copper | Number of flutes(sheet) | 2 | Type | Long Neck Square |
|---|---|---|---|---|---|
| Coating | For General Steel (AlCrN etc.) | Machining Application | Flat Surface / Side Surface / Groove / Thrust (Z-Feed) / Inclined Cutting | Torsion Angle (θ) | Standard Helix (30 to 40°) |
