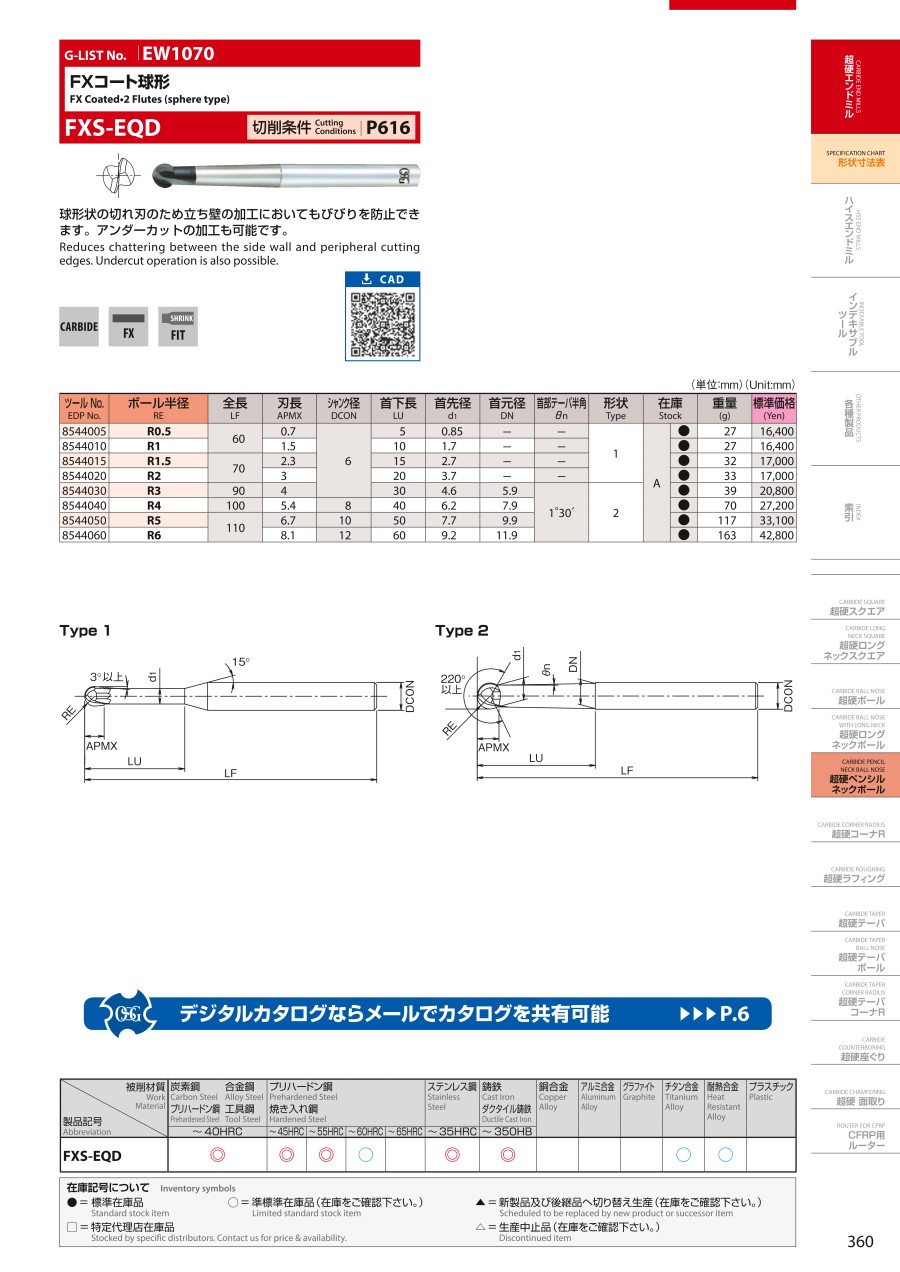

Spherical Ball End FXS-EQD
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| FXS-EQD-R0.5 |
| FXS-EQD-R1 |
| FXS-EQD-R1.5 |
| FXS-EQD-R2 |
| FXS-EQD-R3 |
| FXS-EQD-R4 |
| FXS-EQD-R5 |
| FXS-EQD-R6 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Overall Length (L) (mm) | Underneck length (ℓ1) (mm) | Shank diameter (d) (mm) | Tool No. | |
|---|---|---|---|---|---|---|---|---|---|---|
121.20 € | 1 | 6 Days | 0.5 | 0.7 | 60 | 5 | 6 | 8544005 | ||
121.20 € | 1 | Available | 6 Days | 1 | 1.5 | 60 | 10 | 6 | 8544010 | |
125.10 € | 1 | Available | 6 Days | 1.5 | 2.3 | 70 | 15 | 6 | 8544015 | |
125.10 € | 1 | 6 Days | 2 | 3 | 70 | 20 | 6 | 8544020 | ||
153.60 € | 1 | Available | 6 Days | 3 | 4 | 90 | 30 | 6 | 8544030 | |
200.40 € | 1 | Available | 6 Days | 4 | 5.4 | 100 | 40 | 8 | 8544040 | |
243.90 € | 1 | Available | 6 Days | 5 | 6.7 | 110 | 50 | 10 | 8544050 | |
191.75 € | 1 | 6 Days | 6 | 8.1 | 110 | 60 | 12 | 8544060 |
Loading...
Basic information
| Type | Spherical Bore | work material | General steel / Heat-Treated Steel / High hardness steel –HRC55 / High hardness steel –HRC60 / Stainless Steel / Cast Iron / Titanium | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | TiAlN | Machining Application | Curved Surface / Side Surface / Carving / R-Groove | With/Without Torsion | NA |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Overall Length (L)(mm)
-
Underneck length (ℓ1)(mm)
-
Shank diameter (d)(mm)
-
Tool No.
-
Type
- FXS-EQD
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
