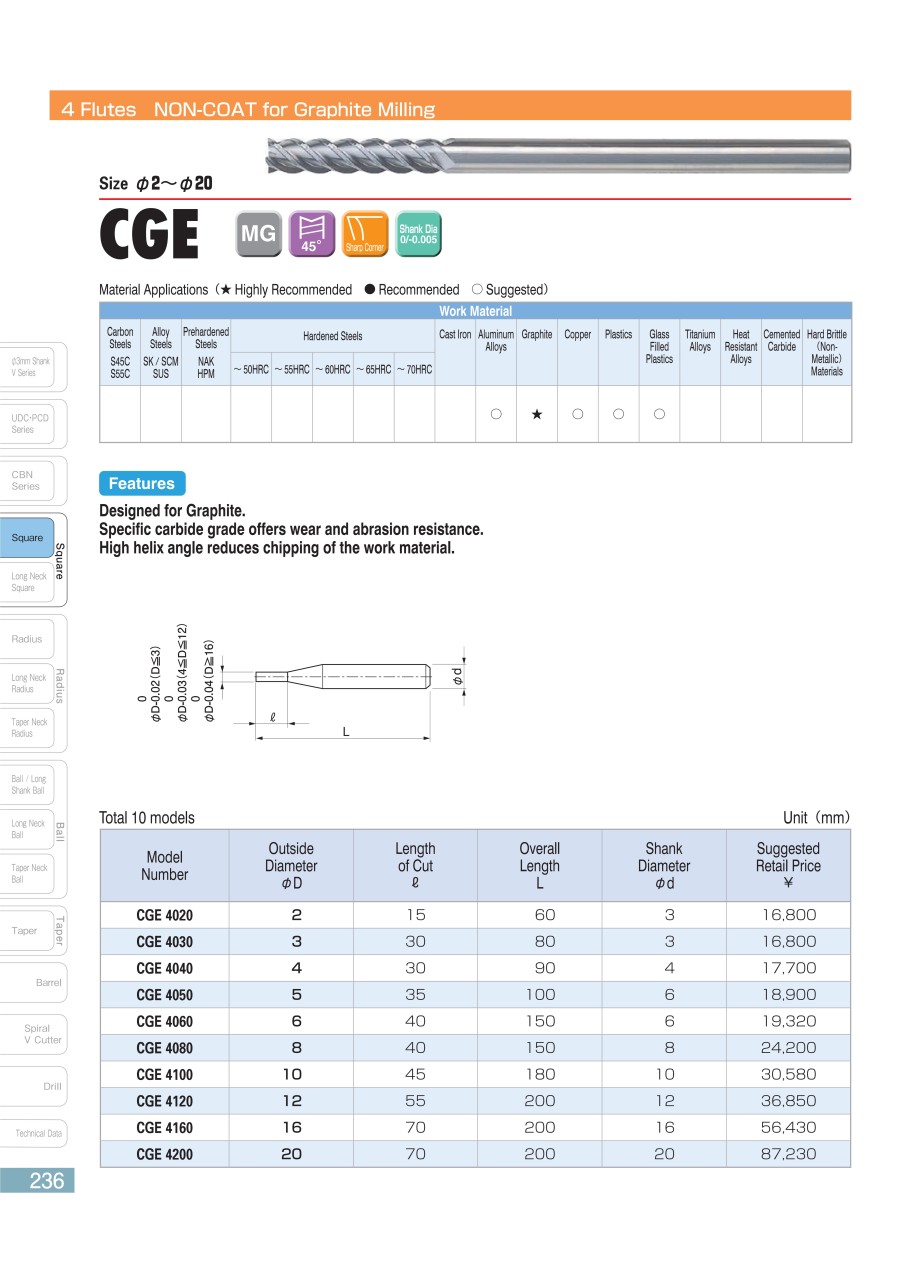

CGE 4-Flute Square for Graphite Processing

CGE 4-Flute Square for Graphite Processing
[Features]
· End Mill Dedicated for Graphite Machining
· Adopts a carbide base material with excellent wear resistance
· The shape helps prevent chipping

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
CGE4020
CGE4030
CGE4040
CGE4050
CGE4060
CGE4080
CGE4100
CGE4120
CGE4160
CGE4200
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Shank diameter (d)
(mm)
Overall Length (L)
(mm)

175.67 €

1 12 Days 215360

175.67 €

1 11 Days 330380

185.08 €

1 6 Days 430490

188.22 €

1 6 Days 5356100

192.25 €

1 6 Days 6406150

229.88 €

1 11 Days 8408150

290.84 €

1 10 Days 104510180

350.45 €

1 11 Days 125512200

536.42 €

1 11 Days 167016200

829.05 €

1 11 Days 207020200

Loading...

  1. 1

Basic information

work material Aluminum / Copper / Graphite / Resin Number of flutes(sheet) 4 Type Square
Coating Non-Coated Machining Application Plane / Side / Groove / Inclined Cuts Blade tip shape Sharp Edge
Torsion Angle (θ) High Helix (45˚ to 60˚)
