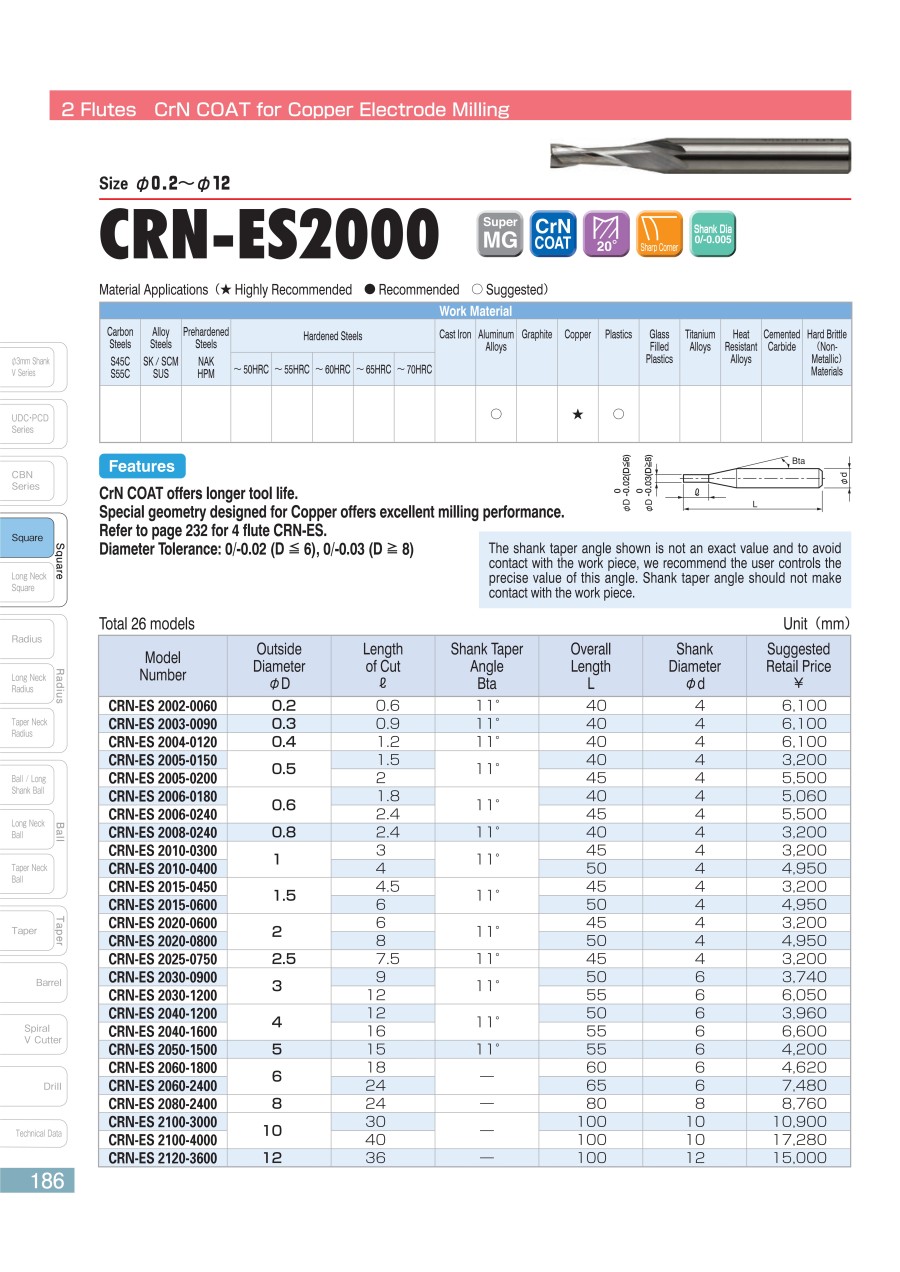

CRN-ES2000 for Copper Electrode Processing, 2-Flute, Square
· CrN coating, which is effective in copper cutting, achieves a longer operating life
· The blade design dedicated for copper achieves excellent cutting quality
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Blade diameter tolerance (mm) | Shank Taper Angle Bta (°) | |
|---|---|---|---|---|---|---|---|---|---|---|
61.54 € | 1 | 10 Days | 0.2 | 0.6 | 4 | 40 | 0~-0.02 | 11° | ||
61.54 € | 1 | 10 Days | 0.3 | 0.9 | 4 | 40 | 0~-0.02 | 11° | ||
61.54 € | 1 | 10 Days | 0.4 | 1.2 | 4 | 40 | 0~-0.02 | 11° | ||
32.17 € | 1 | 10 Days | 0.5 | 1.5 | 4 | 40 | 0~-0.02 | 11° | ||
55.50 € | 1 | 10 Days | 0.5 | 2 | 4 | 45 | 0~-0.02 | 11° | ||
51.30 € | 1 | 10 Days | 0.6 | 1.8 | 4 | 40 | 0~-0.02 | 11° | ||
55.50 € | 1 | 10 Days | 0.6 | 2.4 | 4 | 45 | 0~-0.02 | 11° | ||
32.17 € | 1 | 10 Days | 0.8 | 2.4 | 4 | 40 | 0~-0.02 | 11° | ||
32.17 € | 1 | 6 Days | 1 | 3 | 4 | 45 | 0~-0.02 | 11° | ||
49.90 € | 1 | 8 Days | 1 | 4 | 4 | 50 | 0~-0.02 | 11° | ||
32.17 € | 1 | 12 Days | 1.5 | 4.5 | 4 | 45 | 0~-0.02 | 11° | ||
49.90 € | 1 | 12 Days | 1.5 | 6 | 4 | 50 | 0~-0.02 | 11° | ||
32.17 € | 1 | 10 Days | 2 | 6 | 4 | 45 | 0~-0.02 | 11° | ||
49.90 € | 1 | 8 Days | 2 | 8 | 4 | 50 | 0~-0.02 | 11° | ||
32.17 € | 1 | 10 Days | 2.5 | 7.5 | 4 | 45 | 0~-0.02 | 11° | ||
37.74 € | 1 | 8 Days | 3 | 9 | 6 | 50 | 0~-0.02 | 11° | ||
61.07 € | 1 | 10 Days | 3 | 12 | 6 | 55 | 0~-0.02 | 11° | ||
40.10 € | 1 | 10 Days | 4 | 12 | 6 | 50 | 0~-0.02 | 11° | ||
66.67 € | 1 | 11 Days | 4 | 16 | 6 | 55 | 0~-0.02 | 11° | ||
42.42 € | 1 | 6 Days | 5 | 15 | 6 | 55 | 0~-0.02 | 11° | ||
46.62 € | 1 | 10 Days | 6 | 18 | 6 | 60 | 0~-0.02 | - | ||
75.54 € | 1 | 6 Days | 6 | 24 | 6 | 65 | 0~-0.02 | - | ||
88.59 € | 1 | 10 Days | 8 | 24 | 8 | 80 | 0～-0.03 | - | ||
110.01 € | 1 | 8 Days | 10 | 30 | 10 | 100 | 0～-0.03 | - | ||
174.38 € | 1 | 6 Days | 10 | 40 | 10 | 100 | 0～-0.03 | - | ||
151.54 € | 1 | 10 Days | 12 | 36 | 12 | 100 | 0～-0.03 | - |
Loading...
Basic information
| work material | Aluminum / Copper / Resin | Number of flutes(sheet) | 2 | Type | Square |
|---|---|---|---|---|---|
| Coating | CrN | Machining Application | Plane / Side / Groove / Inclined Cuts | Blade tip shape | Sharp Edge |
| Torsion Angle (θ) | Weak torsion (15 to 25°) |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
Type
- CRN-ES2000
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
- 10 Days or Less
- 11 Days or Less
- 12 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
