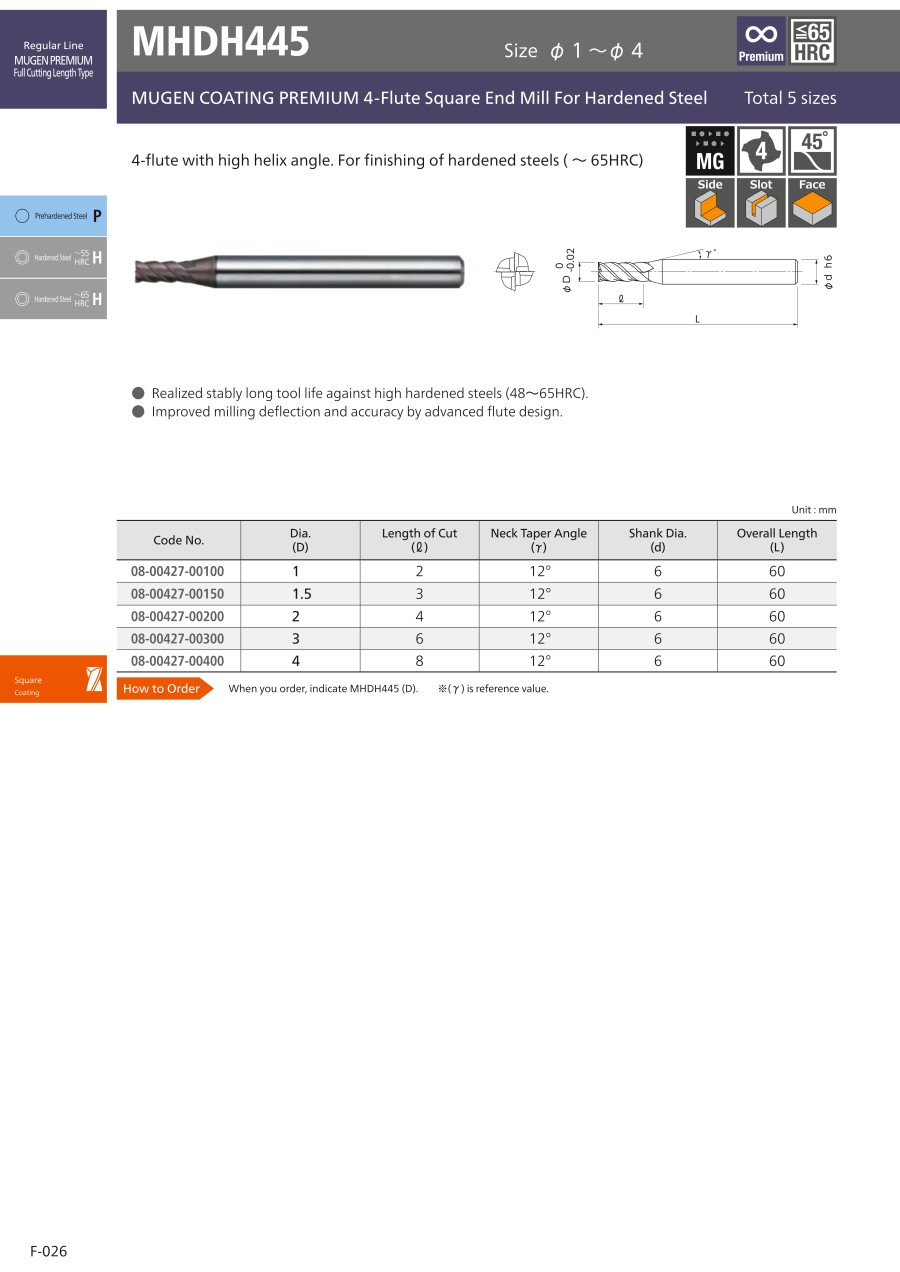

MHDH445 4-Flute Square-End Mill for High-Hardness
- Volume Discount
Achieves stable long life in extended periods of machining in high-hardness range (48-65 HRC). Focusing on blade shape to improve deflection amount and processing accuracy
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| MHDH445-1 |
| MHDH445-1.5 |
| MHDH445-2 |
| MHDH445-3 |
| MHDH445-4 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Manufacturer Code | |
|---|---|---|---|---|---|---|---|
54.64 € | 1 | Available | 6 Days | 1 | 2 | 08-00427-00100 | |
54.64 € | 1 | Available | 6 Days | 1.5 | 3 | 08-00427-00150 | |
54.64 € | 1 | Available | 6 Days | 2 | 4 | 08-00427-00200 | |
63.32 € | 1 | Available | 6 Days | 3 | 6 | 08-00427-00300 | |
68.86 € | 1 | Available | 6 Days | 4 | 8 | 08-00427-00400 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 / Stainless Steel / Aluminum / Titanium / Copper / Resin | Number of flutes(sheet) | 4 | Type | Square |
|---|---|---|---|---|---|
| Coating | For High Hardness (Silicone Group) | Shank diameter (d)(mm) | 6 | Overall Length (L)(mm) | 60 |
| Machining Application | Plane / Side / Groove / Inclined Cuts | Blade tip shape | With Lead | Torsion Angle (θ) | High Helix (45˚ to 60˚) |
| (γ) Neck Angle(°) | 12 | Blade diameter tolerance(mm) | 0~-0.02 |
Configure
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
