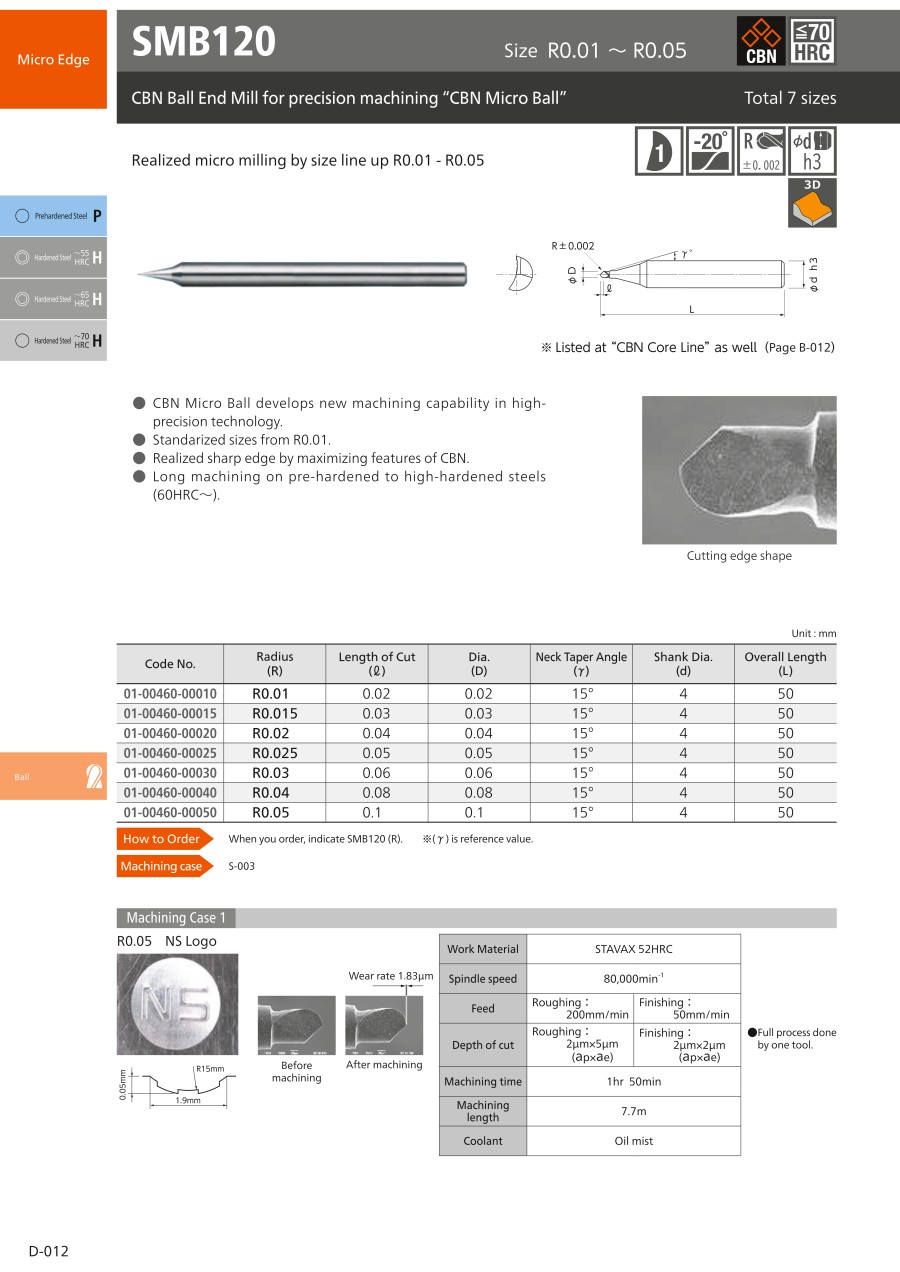

SMB120 CBN Ball End Mill CBN Micro Ball for Ultra-Fine Machining
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| SMB120-R0.01 |
| SMB120-R0.02 |
| SMB120-R0.03 |
| SMB120-R0.04 |
| SMB120-R0.05 |
| SMB120-R0.015 |
| SMB120-R0.025 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | R Size (mm) | Blade length (ℓ) (mm) | Manufacturer Code | (D) Blade Diameter (mm) | |
|---|---|---|---|---|---|---|---|---|
397.58 € | 1 | 6 Days | 0.01 | 0.02 | 01-00460-00010 | 0.02 | ||
284.94 € | 1 | 6 Days | 0.02 | 0.04 | 01-00460-00020 | 0.04 | ||
238.57 € | 1 | 6 Days | 0.03 | 0.06 | 01-00460-00030 | 0.06 | ||
218.70 € | 1 | 6 Days | 0.04 | 0.08 | 01-00460-00040 | 0.08 | ||
198.83 € | 1 | 6 Days | 0.05 | 0.1 | 01-00460-00050 | 0.1 | ||
342.37 € | 1 | 6 Days | 0.015 | 0.03 | 01-00460-00015 | 0.03 | ||
261.76 € | 1 | 6 Days | 0.025 | 0.05 | 01-00460-00025 | 0.05 |
Loading...
Basic information
| Type | Ball | work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 / Stainless Steel | Number of flutes(sheet) | 1 |
|---|---|---|---|---|---|
| Coating | Non-Coated | Overall Length (L)(mm) | 50 | Shank diameter (d)(mm) | 4 |
| Machining Application | Curved surface / Side / Engraving / R Groove | With/Without Torsion | Available | (γ) Neck Angle(°) | 15 |
Configure
Basic Attributes
-
R Size(mm)
-
Blade length (ℓ)(mm)
-
Manufacturer Code
-
Type
- SMB120
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
