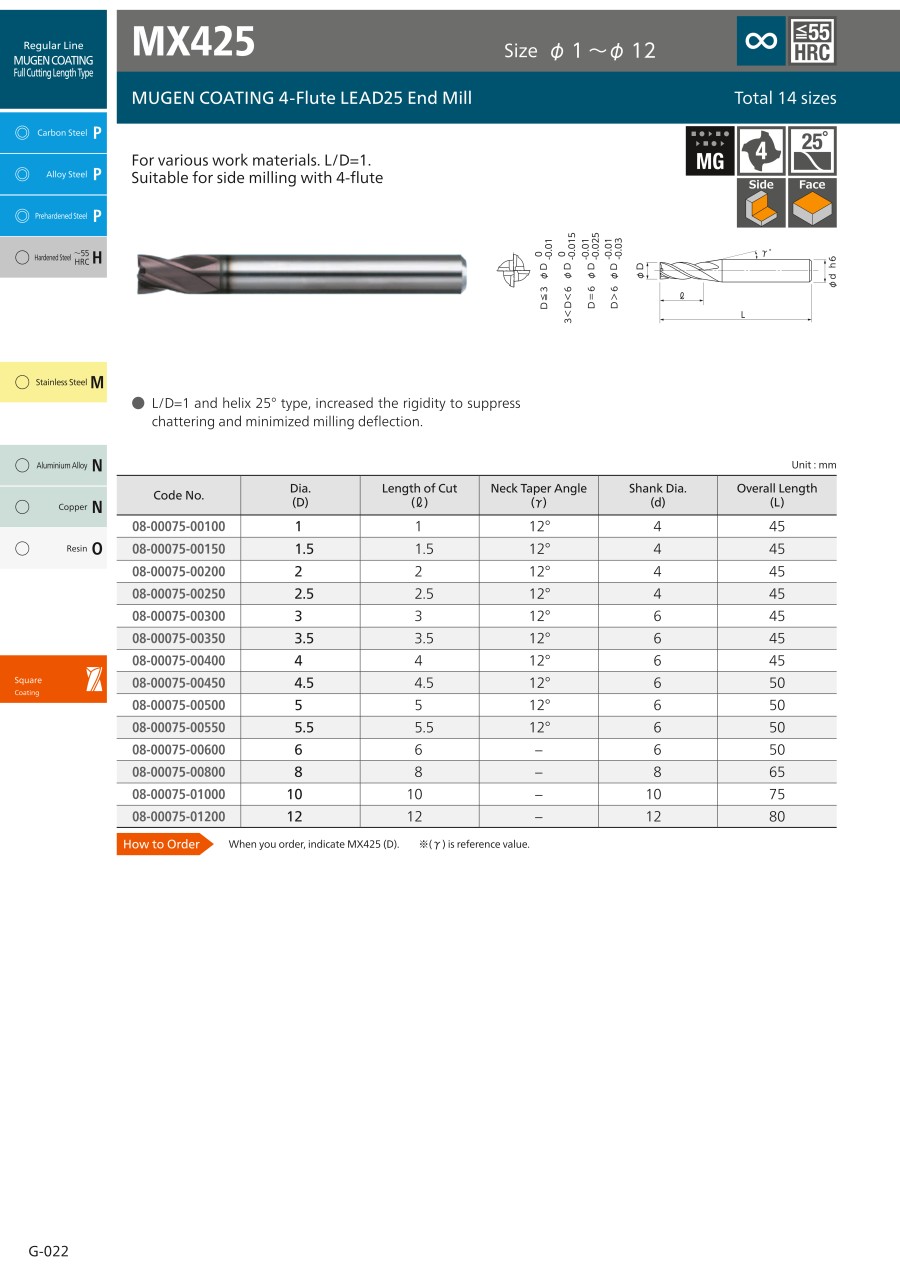

MX425 MUGEN-COATING 4-Flute LEAD 25 End Mill
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| MX425-1 |
| MX425-1.5 |
| MX425-2 |
| MX425-2.5 |
| MX425-3 |
| MX425-3.5 |
| MX425-4 |
| MX425-4.5 |
| MX425-5 |
| MX425-5.5 |
| MX425-6 |
| MX425-8 |
| MX425-10 |
| MX425-12 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | (γ) Neck Angle (°) | Manufacturer Code | Blade diameter tolerance (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
37.24 € | 1 | Available | 6 Days | 1 | 1 | 4 | 45 | 12゜ | 08-00075-00100 | 0～-0.01 | |
37.24 € | 1 | Available | 6 Days | 1.5 | 1.5 | 4 | 45 | 12゜ | 08-00075-00150 | 0～-0.01 | |
31.92 € | 1 | 6 Days | 2 | 2 | 4 | 45 | 12゜ | 08-00075-00200 | 0～-0.01 | ||
24.60 € | 1 | Available | 6 Days | 2.5 | 2.5 | 4 | 45 | 12゜ | 08-00075-00250 | 0～-0.01 | |
35.08 € | 1 | 6 Days | 3 | 3 | 6 | 45 | 12゜ | 08-00075-00300 | 0～-0.01 | ||
50.68 € | 1 | Available | 6 Days | 3.5 | 3.5 | 6 | 45 | 12゜ | 08-00075-00350 | 0～-0.015 | |
31.71 € | 1 | Available | 6 Days | 4 | 4 | 6 | 45 | 12゜ | 08-00075-00400 | 0～-0.015 | |
60.96 € | 1 | Available | 6 Days | 4.5 | 4.5 | 6 | 50 | 12゜ | 08-00075-00450 | 0～-0.015 | |
34.08 € | 1 | Available | 6 Days | 5 | 5 | 6 | 50 | 12゜ | 08-00075-00500 | 0～-0.015 | |
62.53 € | 1 | Available | 6 Days | 5.5 | 5.5 | 6 | 50 | 12゜ | 08-00075-00550 | 0～-0.015 | |
36.46 € | 1 | Available | 6 Days | 6 | 6 | 6 | 50 | - | 08-00075-00600 | -0.01～-0.025 | |
91.77 € | 1 | 6 Days | 8 | 8 | 8 | 65 | - | 08-00075-00800 | -0.01~-0.03 | ||
112.53 € | 1 | 6 Days | 10 | 10 | 10 | 75 | - | 08-00075-01000 | -0.01~-0.03 | ||
110.49 € | 1 | 6 Days | 12 | 12 | 12 | 80 | - | 08-00075-01200 | -0.01~-0.03 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / Stainless Steel / Aluminum / Titanium / Copper / Resin | Number of flutes(sheet) | 4 | Type | Square |
|---|---|---|---|---|---|
| Coating | TiAlN | Machining Application | Plane / Side / Groove / Inclined Cuts | Blade tip shape | With Lead |
| Torsion Angle (θ) | Weak torsion (15 to 25°) |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
(γ) Neck Angle(°)
- 12゜
-
Manufacturer Code
-
Type
- MX425
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
