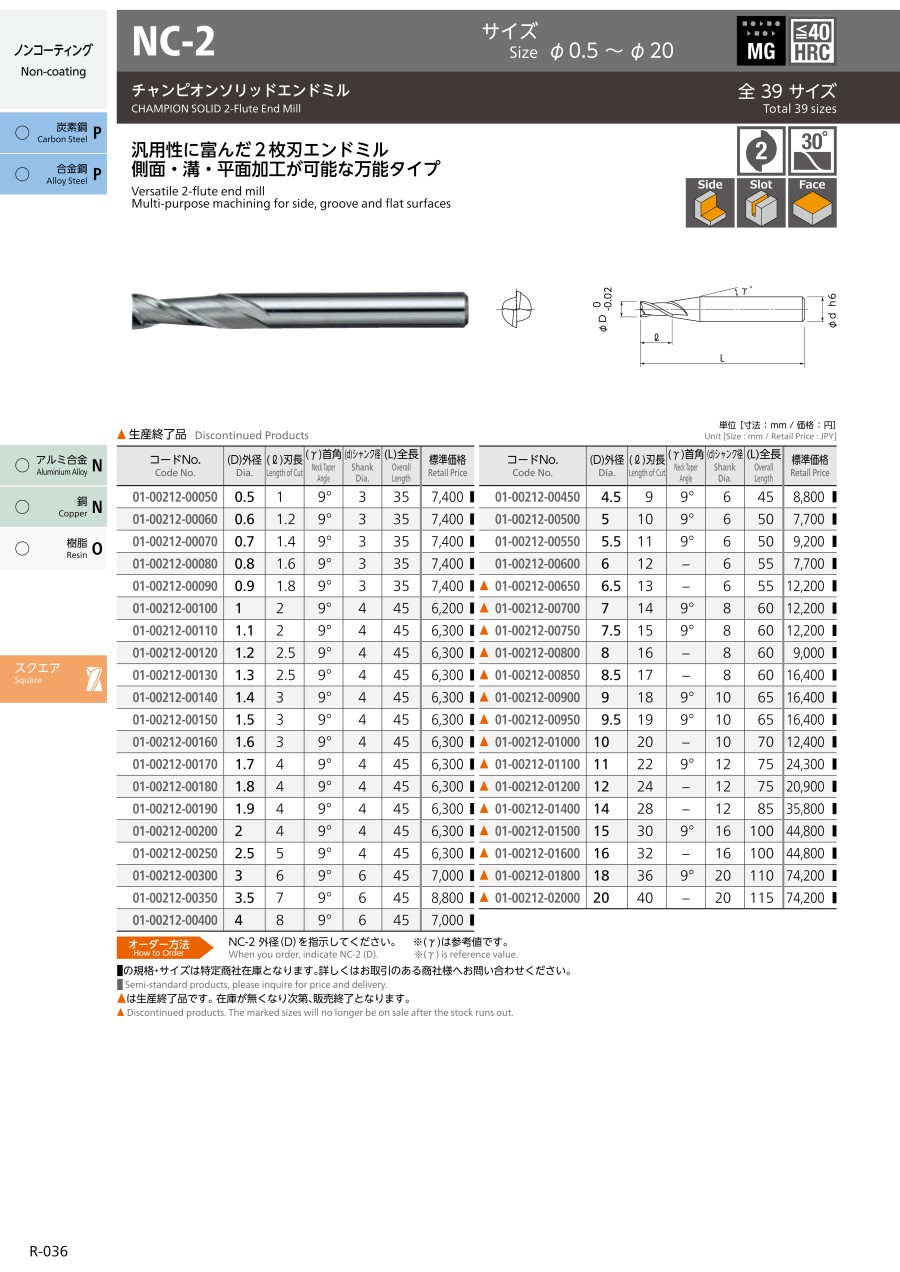

Champion Solid, End Mill NC-2
- Volume Discount
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| NC-2-0.5 |
| NC-2-0.6 |
| NC-2-0.7 |
| NC-2-0.8 |
| NC-2-0.9 |
| NC-2-1 |
| NC-2-1.1 |
| NC-2-1.2 |
| NC-2-1.3 |
| NC-2-1.4 |
| NC-2-1.5 |
| NC-2-1.6 |
| NC-2-1.7 |
| NC-2-1.8 |
| NC-2-1.9 |
| NC-2-2 |
| NC-2-2.5 |
| NC-2-3 |
| NC-2-3.5 |
| NC-2-4 |
| NC-2-4.5 |
| NC-2-5 |
| NC-2-5.5 |
| NC-2-6 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Blade diameter (D) (φ) | Blade length (ℓ) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | (γ) Neck Angle (°) | Manufacturer Code | |
|---|---|---|---|---|---|---|---|---|---|---|
58.57 € | 1 | Available | 6 Days | 0.5 | 1 | 3 | 35 | 9 | 01-00212-00050 | |
58.57 € | 1 | Available | 6 Days | 0.6 | 1.2 | 3 | 35 | 9 | 01-00212-00060 | |
58.57 € | 1 | Available | 6 Days | 0.7 | 1.4 | 3 | 35 | 9 | 01-00212-00070 | |
58.57 € | 1 | Available | 6 Days | 0.8 | 1.6 | 3 | 35 | 9 | 01-00212-00080 | |
58.57 € | 1 | Available | 6 Days | 0.9 | 1.8 | 3 | 35 | 9 | 01-00212-00090 | |
49.10 € | 1 | Available | 6 Days | 1 | 2 | 4 | 45 | 9 | 01-00212-00100 | |
49.89 € | 1 | Available | 6 Days | 1.1 | 2 | 4 | 45 | 9 | 01-00212-00110 | |
49.89 € | 1 | Available | 6 Days | 1.2 | 2.5 | 4 | 45 | 9 | 01-00212-00120 | |
49.89 € | 1 | Available | 6 Days | 1.3 | 2.5 | 4 | 45 | 9 | 01-00212-00130 | |
45.00 € | 1 | Available | 6 Days | 1.4 | 3 | 4 | 45 | 9 | 01-00212-00140 | |
49.89 € | 1 | Available | 6 Days | 1.5 | 3 | 4 | 45 | 9 | 01-00212-00150 | |
49.89 € | 1 | Available | 6 Days | 1.6 | 3 | 4 | 45 | 9 | 01-00212-00160 | |
49.89 € | 1 | Available | 6 Days | 1.7 | 4 | 4 | 45 | 9 | 01-00212-00170 | |
49.89 € | 1 | Available | 6 Days | 1.8 | 4 | 4 | 45 | 9 | 01-00212-00180 | |
49.89 € | 1 | Available | 6 Days | 1.9 | 4 | 4 | 45 | 9 | 01-00212-00190 | |
49.89 € | 1 | Available | 6 Days | 2 | 4 | 4 | 45 | 9 | 01-00212-00200 | |
49.89 € | 1 | Available | 6 Days | 2.5 | 5 | 4 | 45 | 9 | 01-00212-00250 | |
55.42 € | 1 | Available | 6 Days | 3 | 6 | 6 | 45 | 9 | 01-00212-00300 | |
59.96 € | 1 | Available | 6 Days | 3.5 | 7 | 6 | 45 | 9 | 01-00212-00350 | |
55.42 € | 1 | Available | 6 Days | 4 | 8 | 6 | 45 | 9 | 01-00212-00400 | |
69.64 € | 1 | Available | 6 Days | 4.5 | 9 | 6 | 45 | 9 | 01-00212-00450 | |
52.48 € | 1 | Available | 6 Days | 5 | 10 | 6 | 50 | 9 | 01-00212-00500 | |
72.80 € | 1 | Available | 6 Days | 5.5 | 11 | 6 | 50 | 9 | 01-00212-00550 | |
52.48 € | 1 | Available | 6 Days | 6 | 12 | 6 | 55 | - | 01-00212-00600 |
Loading...
Basic information
| work material | General steel / Quenched and tempered steel / Stainless Steel / Aluminum / Copper / Resin | Number of flutes(sheet) | 2 | Type | Square |
|---|---|---|---|---|---|
| Coating | Non-Coated | Machining Application | Plane / Side / Groove | Blade tip shape | With Lead |
| Torsion Angle (θ) | Standard Helix (30˚ to 40˚) |
Configure
Basic Attributes
-
Blade diameter (D)(φ)
-
Blade length (ℓ)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
(γ) Neck Angle(°)
- 9
-
Manufacturer Code
- 01-00212-00600
- 01-00212-00550
- 01-00212-00500
- 01-00212-00450
- 01-00212-00400
- 01-00212-00350
- 01-00212-00300
- 01-00212-00250
- 01-00212-00200
- 01-00212-00190
- 01-00212-00180
- 01-00212-00170
- 01-00212-00160
- 01-00212-00150
- 01-00212-00140
- 01-00212-00130
- 01-00212-00120
- 01-00212-00110
- 01-00212-00100
- 01-00212-00090
- 01-00212-00080
- 01-00212-00070
- 01-00212-00060
- 01-00212-00050
-
Type
- NC-2
Filter by standard shipping days
-
- All
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
