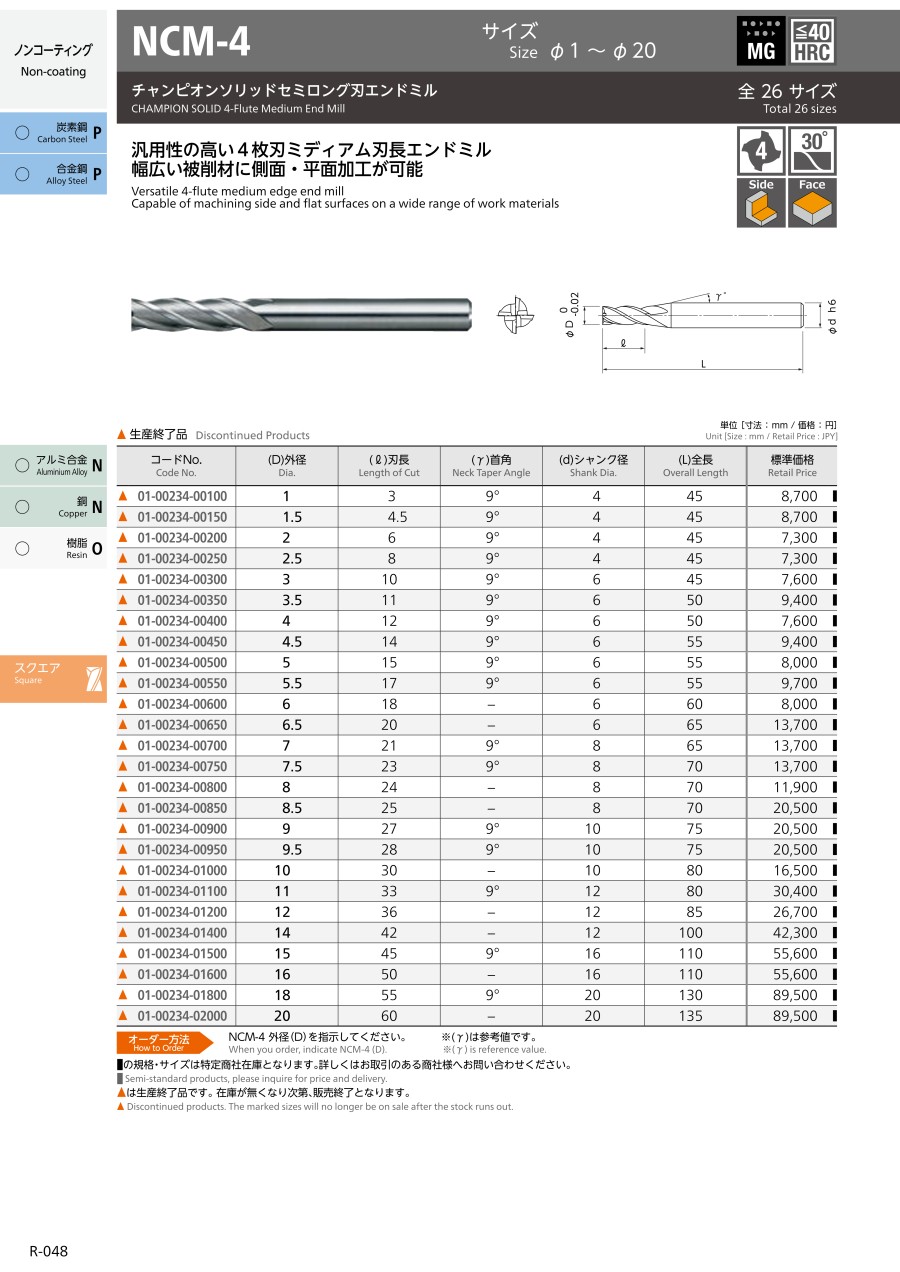

Champion Solid, Semi-Long Blade End Mill NCM-4

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
NCM-4-1.5
NCM-4-2.5
NCM-4-3.5
NCM-4-4.5
NCM-4-5
NCM-4-5.5
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Shank diameter (d)
(mm)
Overall Length (L)
(mm)
Manufacturer Code

68.86 €

1 6 Days 1.54.544501-00234-00150

57.80 €

1 6 Days 2.5844501-00234-00250

74.39 €

1 6 Days 3.51165001-00234-00350

74.39 €

1 6 Days 4.51465501-00234-00450

63.32 €

1 6 Days 51565501-00234-00500

76.75 €

1 6 Days 5.51765501-00234-00550

Loading...

  1. 1

Basic information

work material General steel / Quenched and tempered steel / Stainless Steel / Aluminum / Copper / Resin Number of flutes(sheet) 4 Type Square
Coating Non-Coated Machining Application Plane / Side / Groove Blade tip shape With Lead
Torsion Angle (θ) Standard Helix (30˚ to 40˚) (γ) Neck Angle(°) 9
