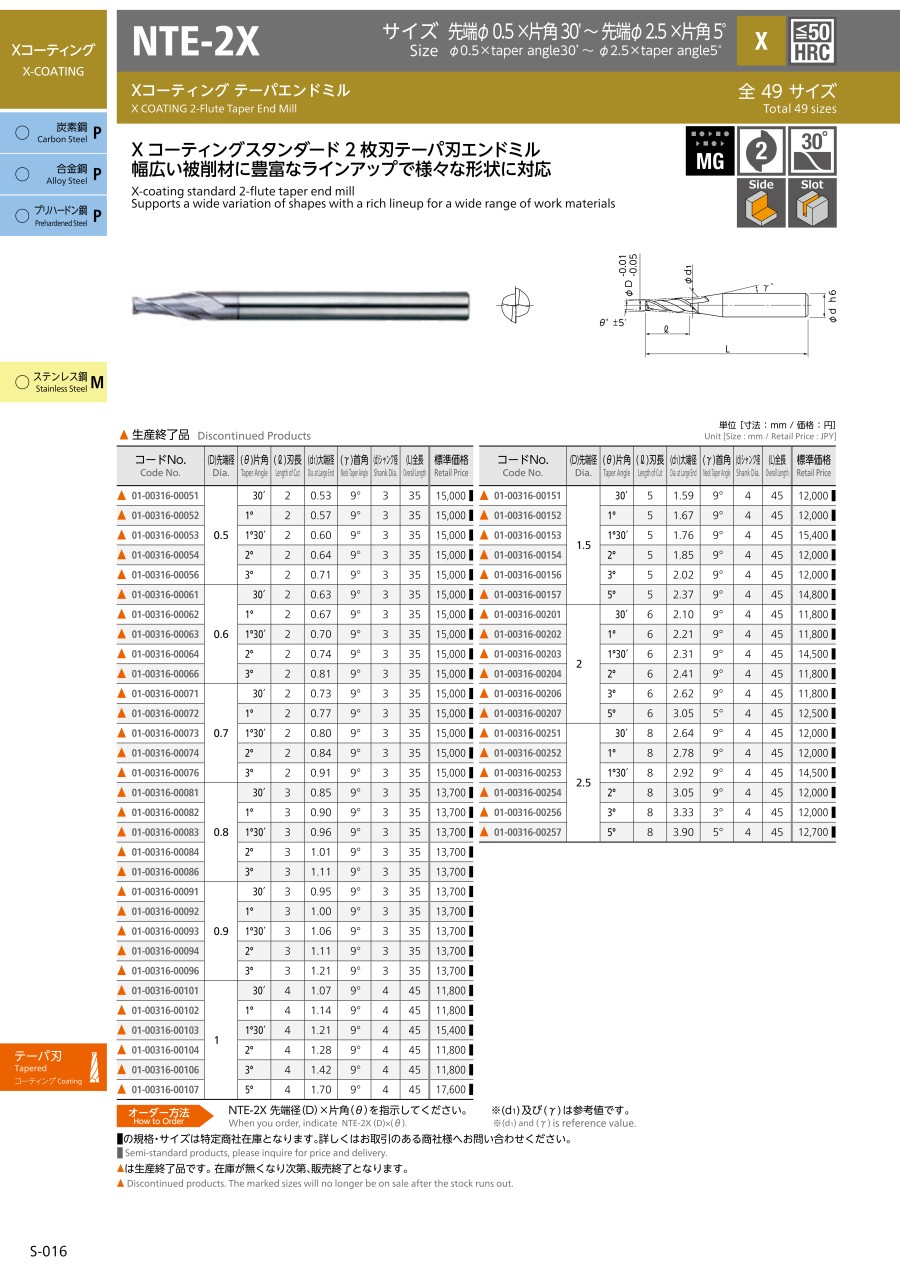

X Coated Taper End Mill NTE-2X
○: Stainless steel, aluminium alloy, copper, resin
◎: Carbon steel, steel alloy/tool steel, heat treated steel.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Single corner (θ) (Degree) | Tip diameter (D) (φ) | Blade length (l) (mm) | Shank diameter (d) (mm) | Overall Length (L) (mm) | Manufacturer Code | (d1) Large End Diameter (mm) | (γ) Neck Angle (°) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
95.49 € | 1 | 8 Days | 0.5 | 0.5 | 2 | 3 | 35 | 01-00316-00051 | 0.53 | 9° | ||
95.49 € | 1 | 8 Days | 1 | 0.5 | 2 | 3 | 35 | 01-00316-00052 | 0.57 | 9° | ||
95.49 € | 1 | 8 Days | 1.5 | 0.5 | 2 | 3 | 35 | 01-00316-00053 | 0.6 | 9° | ||
95.49 € | 1 | 8 Days | 2 | 0.5 | 2 | 3 | 35 | 01-00316-00054 | 0.64 | 9° | ||
95.49 € | 1 | 8 Days | 3 | 0.5 | 2 | 3 | 35 | 01-00316-00056 | 0.71 | 9° | ||
95.49 € | 1 | 8 Days | 0.5 | 0.6 | 2 | 3 | 35 | 01-00316-00061 | 0.63 | 9° | ||
95.49 € | 1 | 8 Days | 1 | 0.6 | 2 | 3 | 35 | 01-00316-00062 | 0.67 | 9° | ||
95.49 € | 1 | 8 Days | 1.5 | 0.6 | 2 | 3 | 35 | 01-00316-00063 | 0.7 | 9° | ||
95.49 € | 1 | 8 Days | 2 | 0.6 | 2 | 3 | 35 | 01-00316-00064 | 0.74 | 9° | ||
95.49 € | 1 | 8 Days | 3 | 0.6 | 2 | 3 | 35 | 01-00316-00066 | 0.81 | 9° | ||
95.49 € | 1 | 8 Days | 0.5 | 0.7 | 2 | 3 | 35 | 01-00316-00071 | 0.73 | 9° | ||
95.49 € | 1 | 8 Days | 1 | 0.7 | 2 | 3 | 35 | 01-00316-00072 | 0.77 | 9° | ||
95.49 € | 1 | 8 Days | 1.5 | 0.7 | 2 | 3 | 35 | 01-00316-00073 | 0.8 | 9° | ||
95.49 € | 1 | 8 Days | 2 | 0.7 | 2 | 3 | 35 | 01-00316-00074 | 0.84 | 9° | ||
95.49 € | 1 | 8 Days | 3 | 0.7 | 2 | 3 | 35 | 01-00316-00076 | 0.91 | 9° | ||
124.84 € | 1 | 8 Days | 0.5 | 0.8 | 3 | 3 | 35 | 01-00316-00081 | 0.85 | 9° | ||
124.84 € | 1 | 8 Days | 1 | 0.8 | 3 | 3 | 35 | 01-00316-00082 | 0.9 | 9° | ||
124.84 € | 1 | 8 Days | 1.5 | 0.8 | 3 | 3 | 35 | 01-00316-00083 | 0.96 | 9° | ||
124.84 € | 1 | 8 Days | 2 | 0.8 | 3 | 3 | 35 | 01-00316-00084 | 1.01 | 9° | ||
124.84 € | 1 | 8 Days | 3 | 0.8 | 3 | 3 | 35 | 01-00316-00086 | 1.11 | 9° | ||
124.84 € | 1 | 8 Days | 0.5 | 0.9 | 3 | 3 | 35 | 01-00316-00091 | 0.95 | 9° | ||
124.84 € | 1 | 8 Days | 1 | 0.9 | 3 | 3 | 35 | 01-00316-00092 | 1 | 9° | ||
124.84 € | 1 | 8 Days | 1.5 | 0.9 | 3 | 3 | 35 | 01-00316-00093 | 1.06 | 9° | ||
124.84 € | 1 | 8 Days | 2 | 0.9 | 3 | 3 | 35 | 01-00316-00094 | 1.11 | 9° | ||
124.84 € | 1 | 8 Days | 3 | 0.9 | 3 | 3 | 35 | 01-00316-00096 | 1.21 | 9° | ||
93.36 € | 1 | 6 Days | 0.5 | 1 | 4 | 4 | 45 | 01-00316-00101 | 1.07 | 9° | ||
93.36 € | 1 | 6 Days | 1 | 1 | 4 | 4 | 45 | 01-00316-00102 | 1.14 | 9° | ||
98.03 € | 1 | 8 Days | 1.5 | 1 | 4 | 4 | 45 | 01-00316-00103 | 1.21 | 9° | ||
93.36 € | 1 | 6 Days | 2 | 1 | 4 | 4 | 45 | 01-00316-00104 | 1.28 | 9° | ||
93.36 € | 1 | 6 Days | 3 | 1 | 4 | 4 | 45 | 01-00316-00106 | 1.42 | 9° | ||
97.24 € | 1 | 6 Days | 5 | 1 | 4 | 4 | 45 | 01-00316-00107 | 1.7 | 9° | ||
94.93 € | 1 | 6 Days | 0.5 | 1.5 | 4 | 4 | 45 | 01-00316-00151 | 1.59 | 9° | ||
94.93 € | 1 | 6 Days | 1 | 1.5 | 4 | 4 | 45 | 01-00316-00152 | 1.67 | 9° | ||
98.03 € | 1 | 8 Days | 1.5 | 1.5 | 4 | 4 | 45 | 01-00316-00153 | 1.76 | 9° | ||
94.93 € | 1 | 6 Days | 2 | 1.5 | 4 | 4 | 45 | 01-00316-00154 | 1.85 | 9° | ||
94.93 € | 1 | 6 Days | 3 | 1.5 | 4 | 4 | 45 | 01-00316-00156 | 2.02 | 9° | ||
117.06 € | 1 | 6 Days | 5 | 1.5 | 4 | 4 | 45 | 01-00316-00157 | 2.37 | 9° | ||
93.36 € | 1 | 6 Days | 0.5 | 2 | 4 | 4 | 45 | 01-00316-00201 | 2.1 | 9° | ||
93.36 € | 1 | 6 Days | 1 | 2 | 4 | 4 | 45 | 01-00316-00202 | 2.21 | 9° | ||
132.12 € | 1 | 8 Days | 1.5 | 2 | 4 | 4 | 45 | 01-00316-00203 | 2.31 | 9° | ||
93.36 € | 1 | 6 Days | 2 | 2 | 4 | 4 | 45 | 01-00316-00204 | 2.41 | 9° | ||
93.36 € | 1 | 6 Days | 3 | 2 | 4 | 4 | 45 | 01-00316-00206 | 2.62 | 9° | ||
98.88 € | 1 | 6 Days | 5 | 2 | 4 | 4 | 45 | 01-00316-00207 | 3.05 | - | ||
94.93 € | 1 | 6 Days | 0.5 | 2.5 | 4 | 4 | 45 | 01-00316-00251 | 2.64 | 9° | ||
94.93 € | 1 | 6 Days | 1 | 2.5 | 4 | 4 | 45 | 01-00316-00252 | 2.78 | 9° | ||
132.12 € | 1 | 8 Days | 1.5 | 2.5 | 4 | 4 | 45 | 01-00316-00253 | 2.92 | 9° | ||
94.93 € | 1 | 6 Days | 2 | 2.5 | 4 | 4 | 45 | 01-00316-00254 | 3.05 | 9° | ||
94.93 € | 1 | 6 Days | 3 | 2.5 | 4 | 4 | 45 | 01-00316-00256 | 3.33 | - | ||
93.36 € | 1 | 6 Days | 5 | 2.5 | 4 | 4 | 45 | 01-00316-00257 | 3.9 | - |
Loading...
Basic information
| Type | Tapered square | Work material | General steel / Quenched and tempered steel / High hardness steel –HRC55 / Stainless Steel / Aluminum / Copper | Number of flutes(sheet) | 2 |
|---|---|---|---|---|---|
| Coating | TiCN | Torsional Angle(°) | Standard torsion (30-40°) |
Configure
Basic Attributes
-
Single corner (θ)(Degree)
-
Tip diameter (D)(φ)
-
Blade length (l)(mm)
-
Shank diameter (d)(mm)
-
Overall Length (L)(mm)
-
Manufacturer Code
- 01-00316-00257
- 01-00316-00256
- 01-00316-00254
- 01-00316-00253
- 01-00316-00252
- 01-00316-00251
- 01-00316-00207
- 01-00316-00206
- 01-00316-00204
- 01-00316-00203
- 01-00316-00202
- 01-00316-00201
- 01-00316-00157
- 01-00316-00156
- 01-00316-00154
- 01-00316-00153
- 01-00316-00152
- 01-00316-00151
- 01-00316-00107
- 01-00316-00106
- 01-00316-00104
- 01-00316-00103
- 01-00316-00102
- 01-00316-00101
- 01-00316-00096
- 01-00316-00094
- 01-00316-00093
- 01-00316-00092
- 01-00316-00091
- 01-00316-00086
- 01-00316-00084
- 01-00316-00083
- 01-00316-00082
- 01-00316-00081
- 01-00316-00076
- 01-00316-00074
- 01-00316-00073
- 01-00316-00072
- 01-00316-00071
- 01-00316-00066
- 01-00316-00064
- 01-00316-00063
- 01-00316-00062
- 01-00316-00061
- 01-00316-00056
- 01-00316-00054
- 01-00316-00053
- 01-00316-00052
- 01-00316-00051
-
Type
- NTE-2X
Filter by standard shipping days
-
- All
- 6 Days or Less
- 8 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
