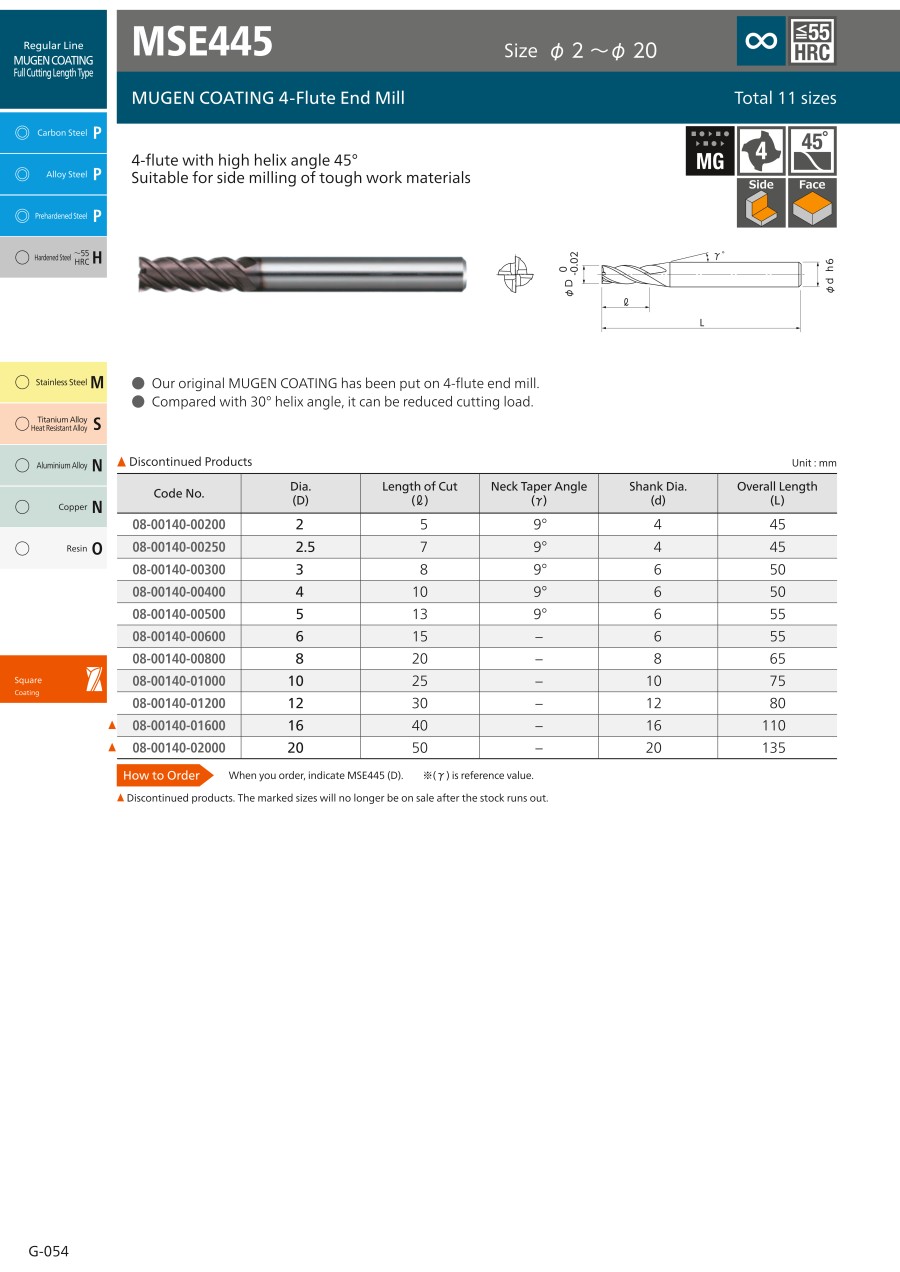

MUGEN-COATING 4-Flute End Mill MSE445

MUGEN-COATING 4-Flute End Mill MSE445
  • Volume Discount
Adopts a unique Infinity coating for 4-flute end mill. Cutting Resistance Reduced Compared to 30° Torsion

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
MSE445-2
MSE445-2.5
MSE445-3
MSE445-4
MSE445-5
MSE445-6
MSE445-8
MSE445-10
MSE445-12
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Blade diameter (D)
(φ)
Blade length (ℓ)
(mm)
Shank diameter (d)
(mm)
Overall Length (L)
(mm)
(γ) Neck Angle
(°)
Manufacturer Code

39.62 €

1 6 Days 25445908-00140-00200

39.62 €

1 Available 6 Days 2.57445908-00140-00250

53.84 €

1 6 Days 38650908-00140-00300

57.00 €

1 6 Days 410650908-00140-00400

60.96 €

1 Available 6 Days 513655908-00140-00500

56.89 €

1 Available Same day

Stock

615655-08-00140-00600

94.93 €

1 6 Days 820865-08-00140-00800

112.04 €

1 6 Days 10251075-08-00140-01000

134.11 €

1 Same day

Stock

12301280-08-00140-01200

Loading...

  1. 1

Basic information

work material General steel / Quenched and tempered steel / High hardness steel –HRC55 / High hardness steel –HRC60 / High hardness steel –HRC65 / Stainless Steel / Aluminum / Titanium / Copper / Resin Number of flutes(sheet) 4 Type Square
Coating TiAlN Machining Application Plane / Side / Groove / Inclined Cuts Blade tip shape With Lead
Torsion Angle (θ) High Helix (45˚ to 60˚) Blade diameter tolerance(mm) 0~-0.02
